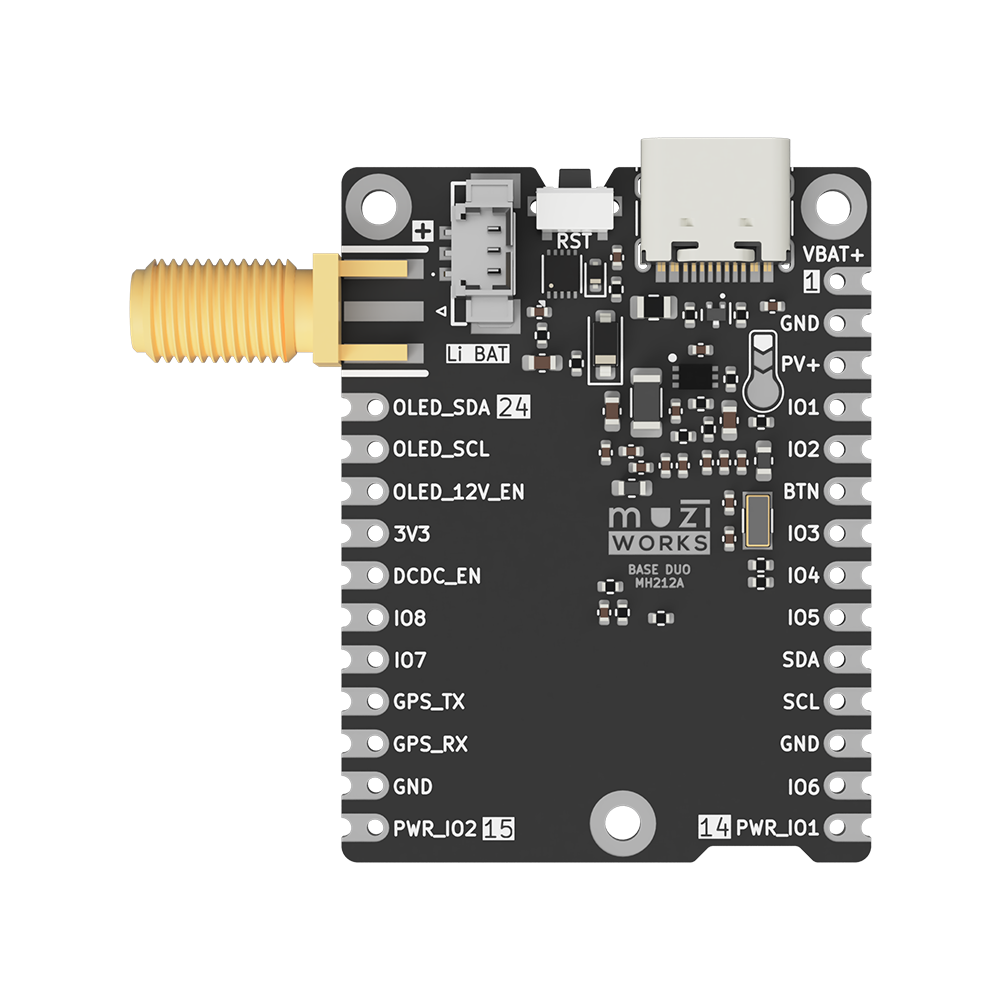

Starting Base

This is the heart of your Meshtastic radio.

Starting Base

The heart of your Meshtastic® radio, engineered for performance and reliability. Featuring IO designed for ultimate flexibility.

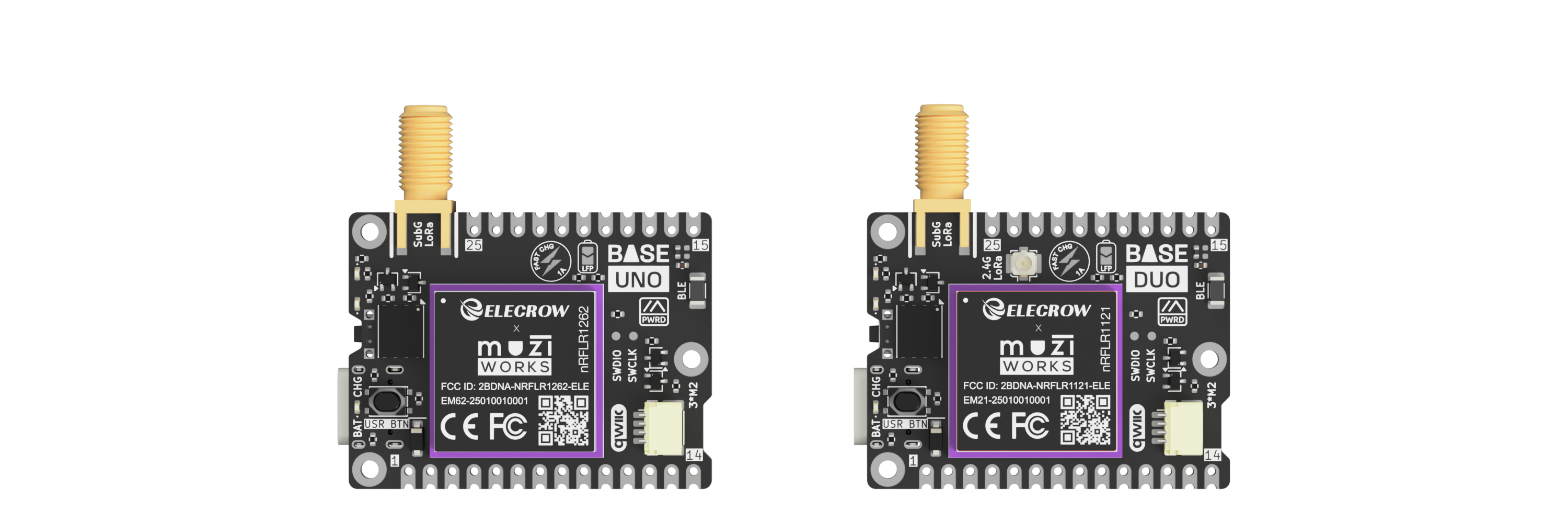

Available as Base Uno + Base Duo.

From $25 ->

Designed by Experience, Shared by Design

The foundation starts from our experience, building thousands of devices we learned exactly what works and what doesn't.

All the while, we were imagining the ultimate Meshtastic devices, the hardware we wanted to use and share. Simple to build and easy to modify.

So, we started building, piece by piece, fueled by our community's needs.

  • Custom core modules, optimized for performance and efficiency
  • Next-gen Base boards, defining a new standard of features and usability
  • Expandability via our IO board system, designed to grow with your projects and ideas
  • Open source for the community to build upon

This is more than a development board, it's the future for decentralized communication, and we're just getting started.

2.4GHz LoRa and Beyond

Set your LoRa region to 2.4GHz and start meshing today! Enjoy worldwide compatibility and take advantage of the broader 2.4GHz spectrum.*

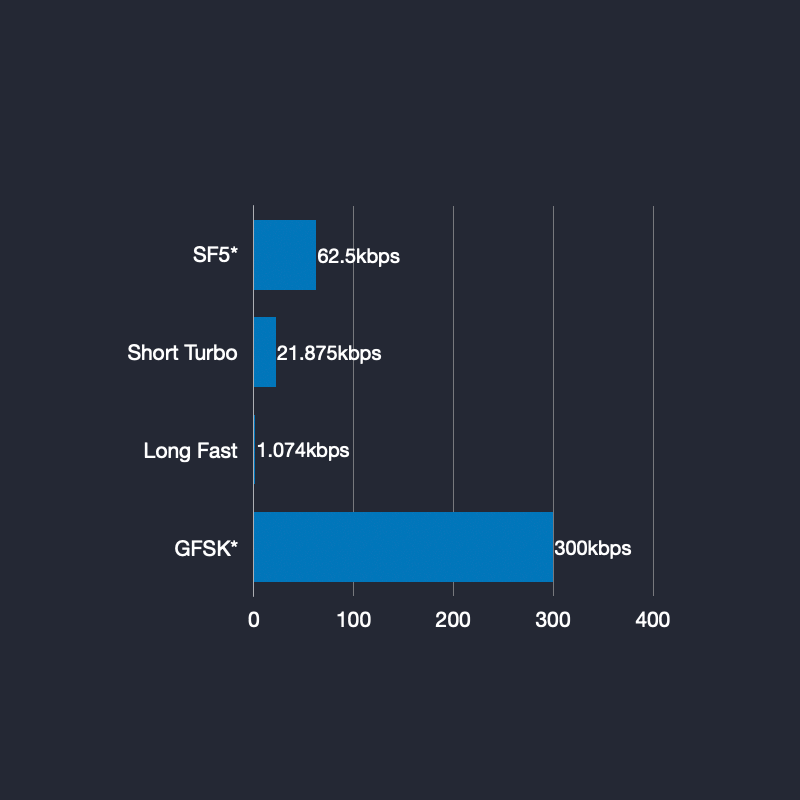

Base Duo provides hardware support for increased data-rates up to 12 times faster compared with the current Short Turbo preset.

* Base Duo only [SF5 and GFSK are not supported by Meshtastic... yet!]

Built by you.

We'll give you everything you might need so you can get to building.

  • Flexible Power: Solar, USB or Battery
  • QWIIC / STEMMA QT port for plug and play sensors
  • 25 header pins on standard 0.1" spacing for easy expansion
  • Standardized M2 mount holes, simple and secure
  • Of course, we'll share a open source case design, built to be modified
  • Schematic and STEP files provided
Download Design Files

Tech Specs

  • HIGHLIGHTS

    Microcontroller
    nRF52840

    LoRa Radio
    LR1121 or SX1262

    QSPI Flash
    8MB or 2MB

    Buttons
    User + Reset

    Flexible IO
    8 GPIO + 2 PWR IO + UART + I2C

  • POWER

    Battery Chemistry
    Li-ion + LFP (LiFePO4)

    Charging
    Solar + USB-C (Fast Charge option)

    Advanced Features
    Powerpath + VDPM

    Safety
    Voltage + Thermal Protection

    Charger IC
    BQ28185

  • CONNECTIVITY

    Wireless
    LoRa + Bluetooth LE

    I2C Port
    QWIIC / STEMMA QT

    DIMENSIONS

    Board Size
    42x32mm

    Weight
    10g

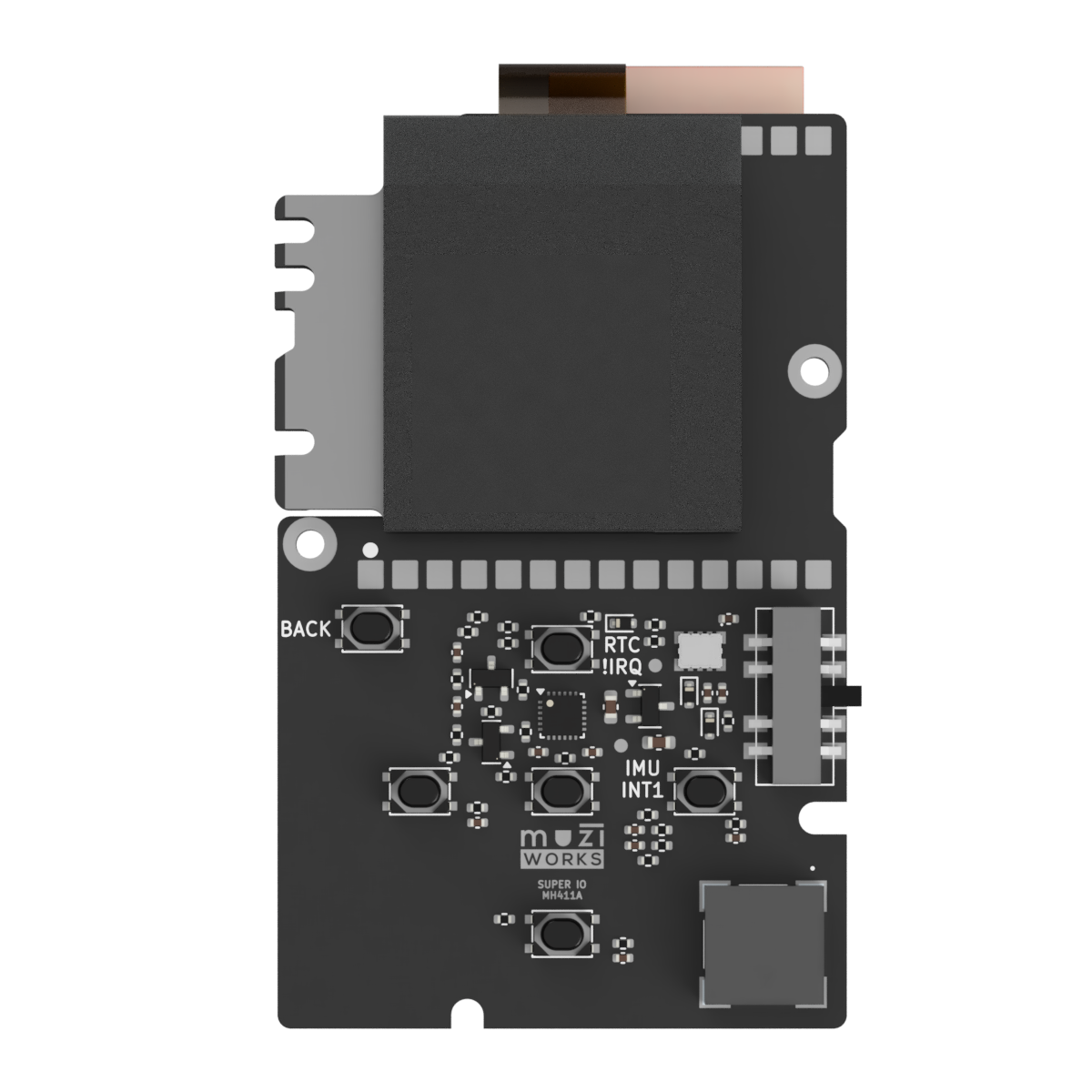

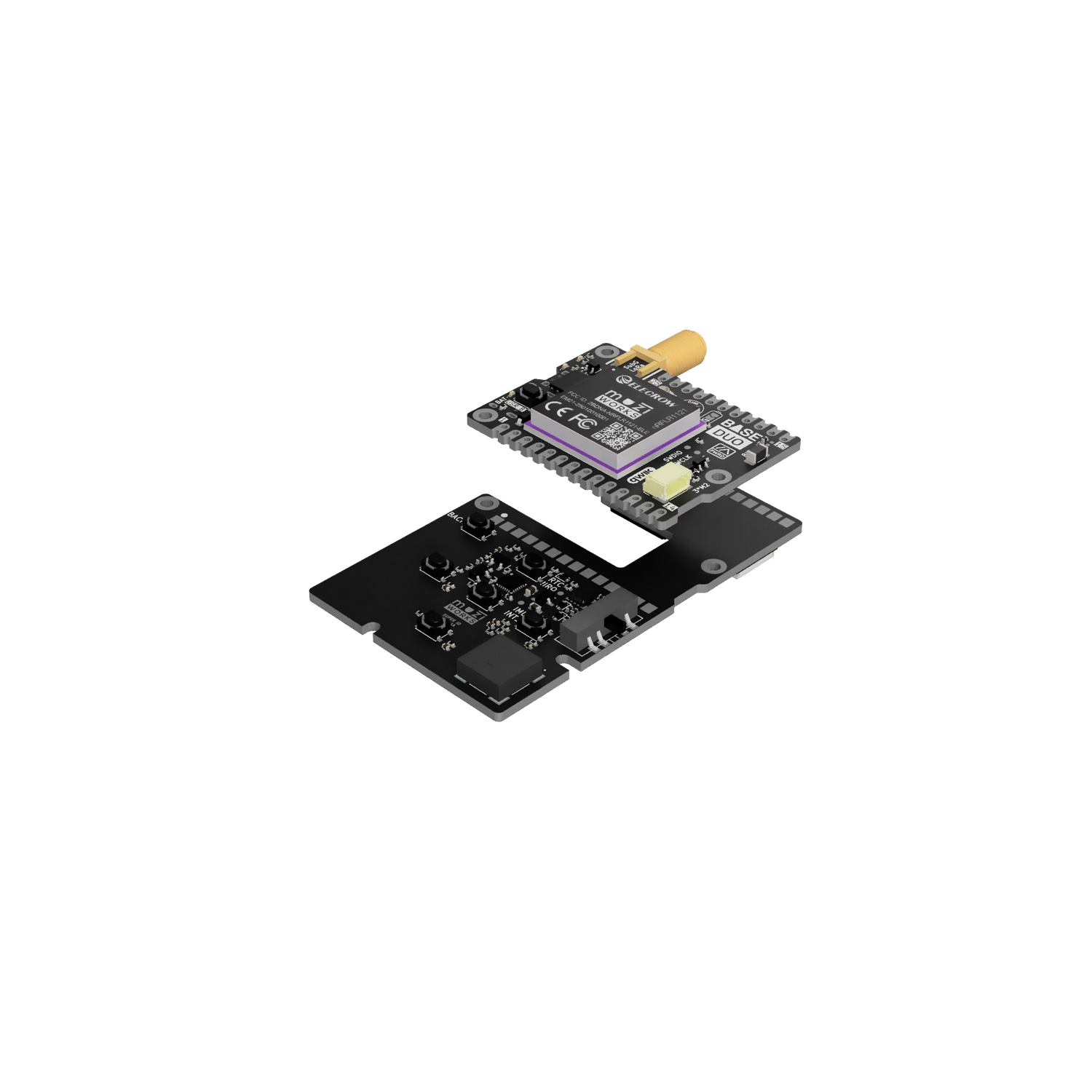

Meet Super IO

The first IO board in the Base system. Transforms into a super capable portable device with brand new standalone capabilities.

Shop Now

Complete Devices

Assembled here in Atlanta, USA. We are busy building the next generation of ready-to-use devices powered by Base Duo and Base Uno.

Coming soon

Accessories

Our official accessories are specially designed to work seamlessly with Base boards and IO boards.

Coming soon

Elecrow x MUZI WORKS

To fit the feature set we desired into the small board footprint we wanted it became clear we needed a very capable module partner. We worked with Elecrow over many months to develop the modules that are the core of our Base boards. We thank them for their incredible support.

Bare modules are available in our store.

Shop Modules

Meshtastic® Approved

Base Uno and Base Duo are fully supported by Meshtastic through the Backer Program. Licensing fees on Base boards help support the continued development of firmware and other software components.
