Transform your Base Duo or Base Uno into a portable, standalone capable Meshtastic device.
Basic soldering required.
Main Features
- Expanded 128x128 1.12" OLED – perfect for BaseUI
- GPS with Ceramic Antenna
- Seiko Real Time Clock
- 9 Axis Inertial Measurement Unit
- 3 Axis Gyroscope
- 3 Axis Accelerometer
- 3 Axis Compass
- Navigation Pad Buttons + OK + Back
- Power Slide Switch with 2 Programmable User Modes (defaults to GPS ON / OFF)
- Buzzer
Product Includes

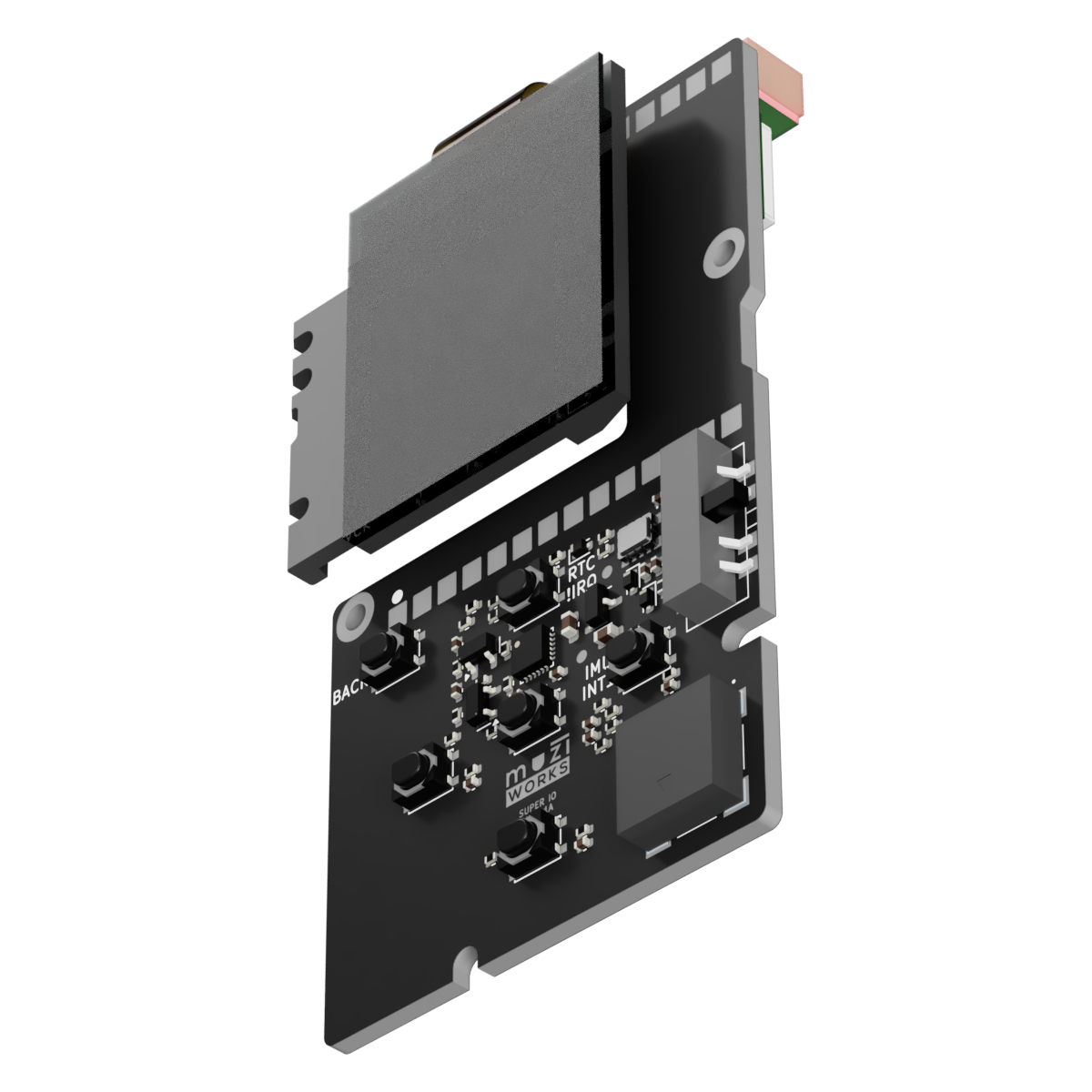

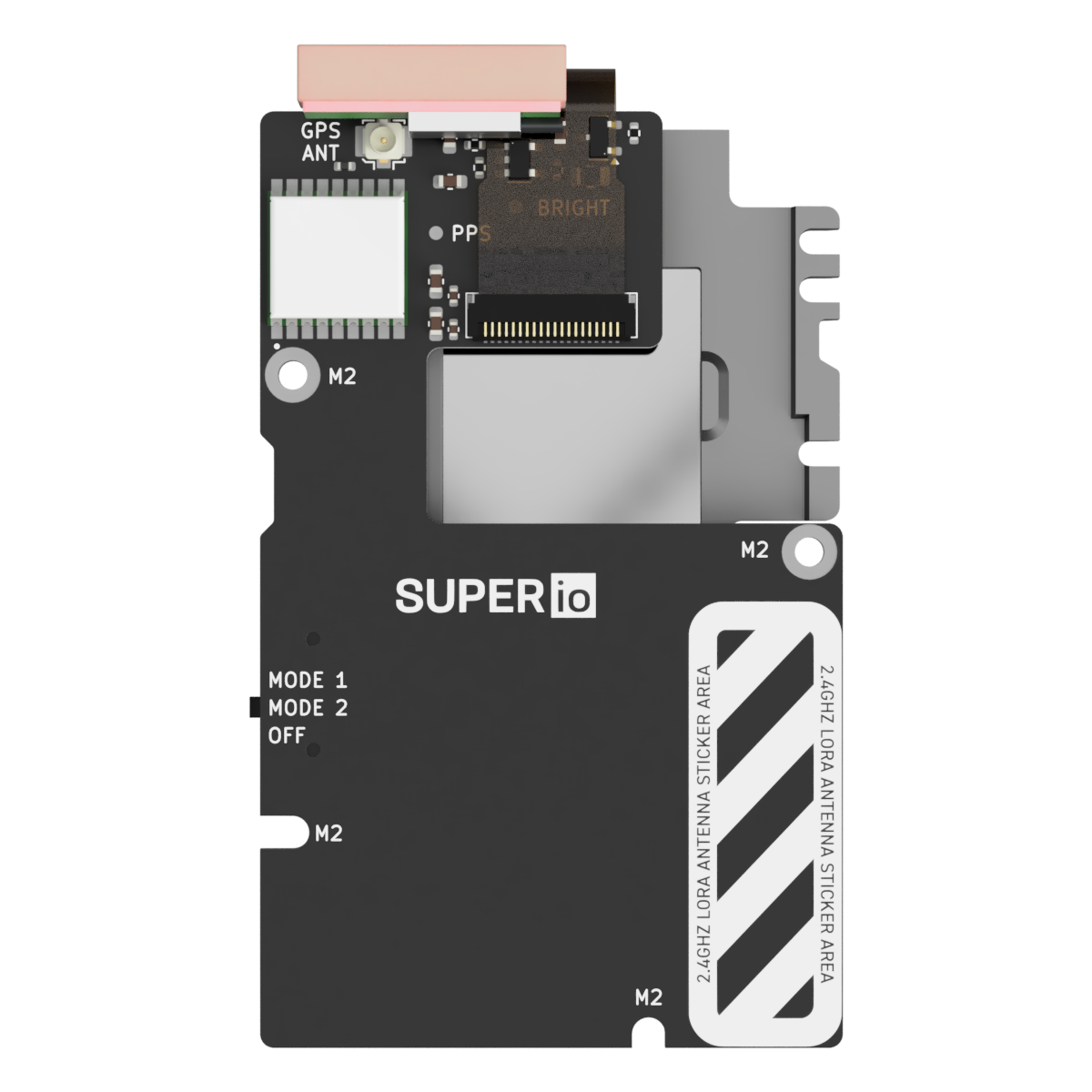

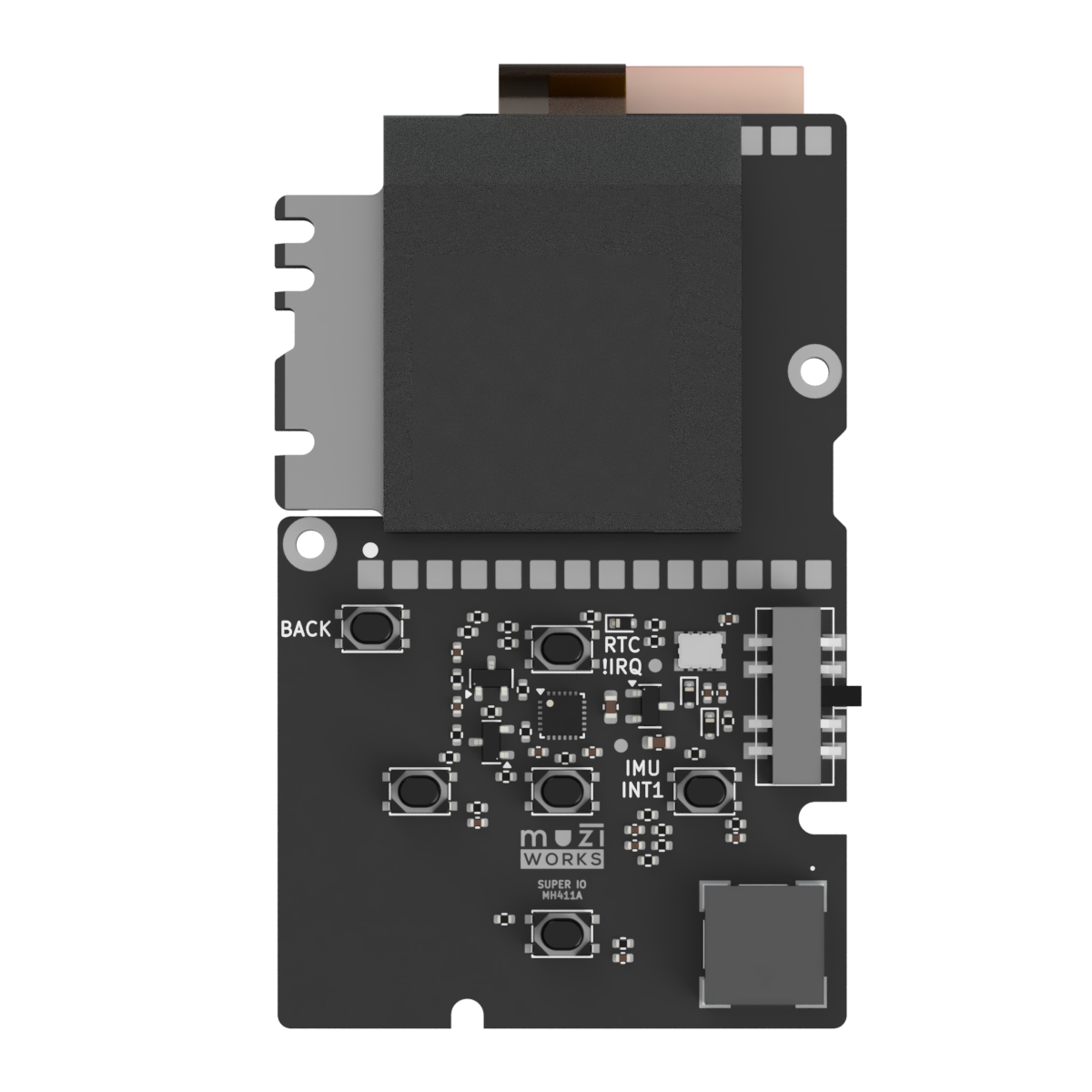

- Super IO Board
- OLED + Mounting Bracket
- GPS Ceramic Antenna
- Mounting Screws + Hex Key
Specs
- Mounting Holes aligned with Base board: 2x M2
- Mounting Slots for SuperIO: 2x M2
- Board Size: 42x67.5mm
- Weight: 16g
In our resources section for the BASE System we provide an evolving user guide, documentation and downloads including spec sheets, schematics, software source files and more.
Share

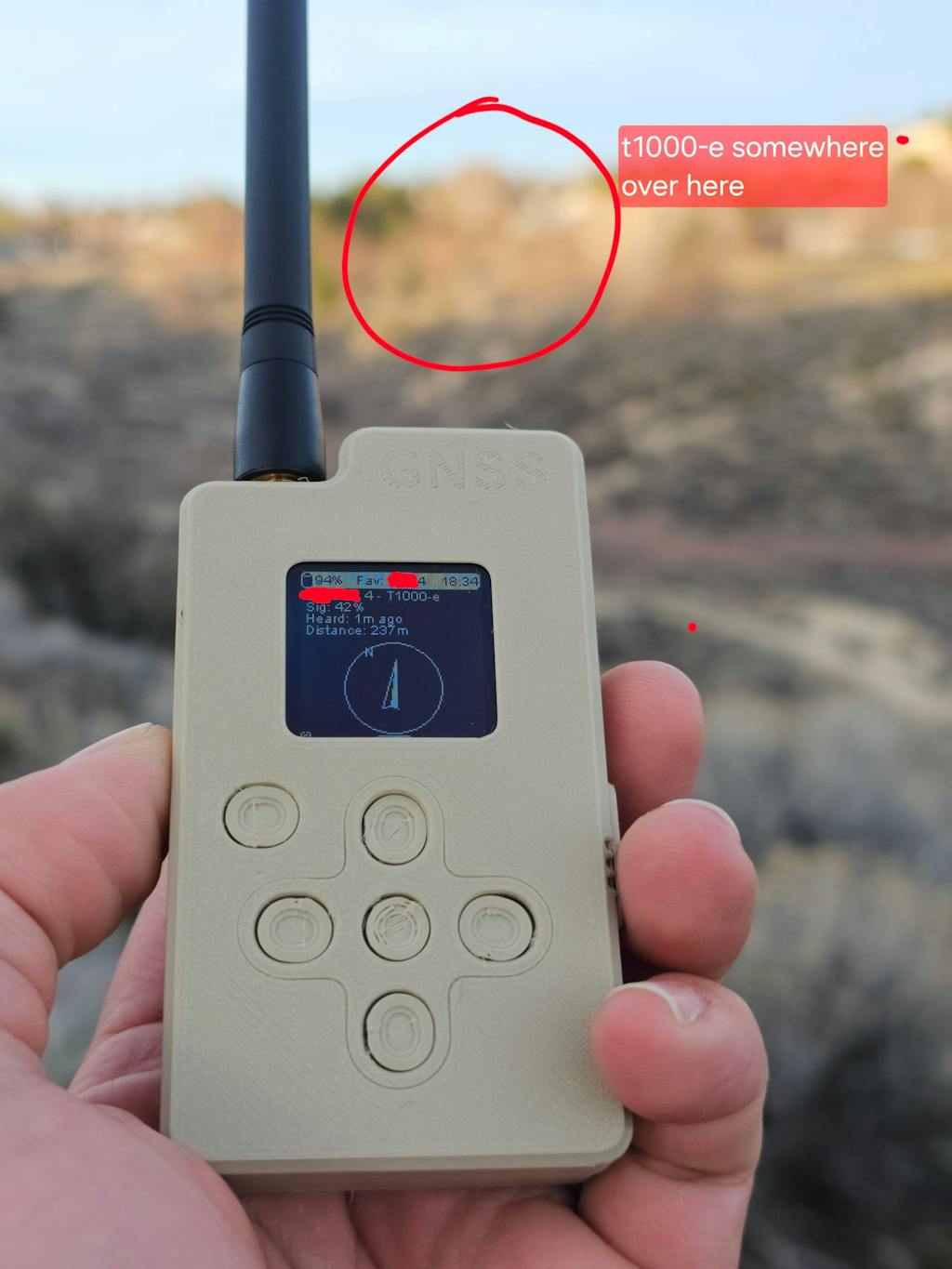

Bought the Super IO and Base Uno, specifically for the integrated compass. Very few nodes have the compass and I am very excited to explore the possiblity of direction finding nodes in a large in-persob gathering. Tested and the only hiccups encountered with the node eas having to calibrate the compass to get the orientation correct. Once it pointed north, and the other nodes sent accurate GPS location messages, it was great

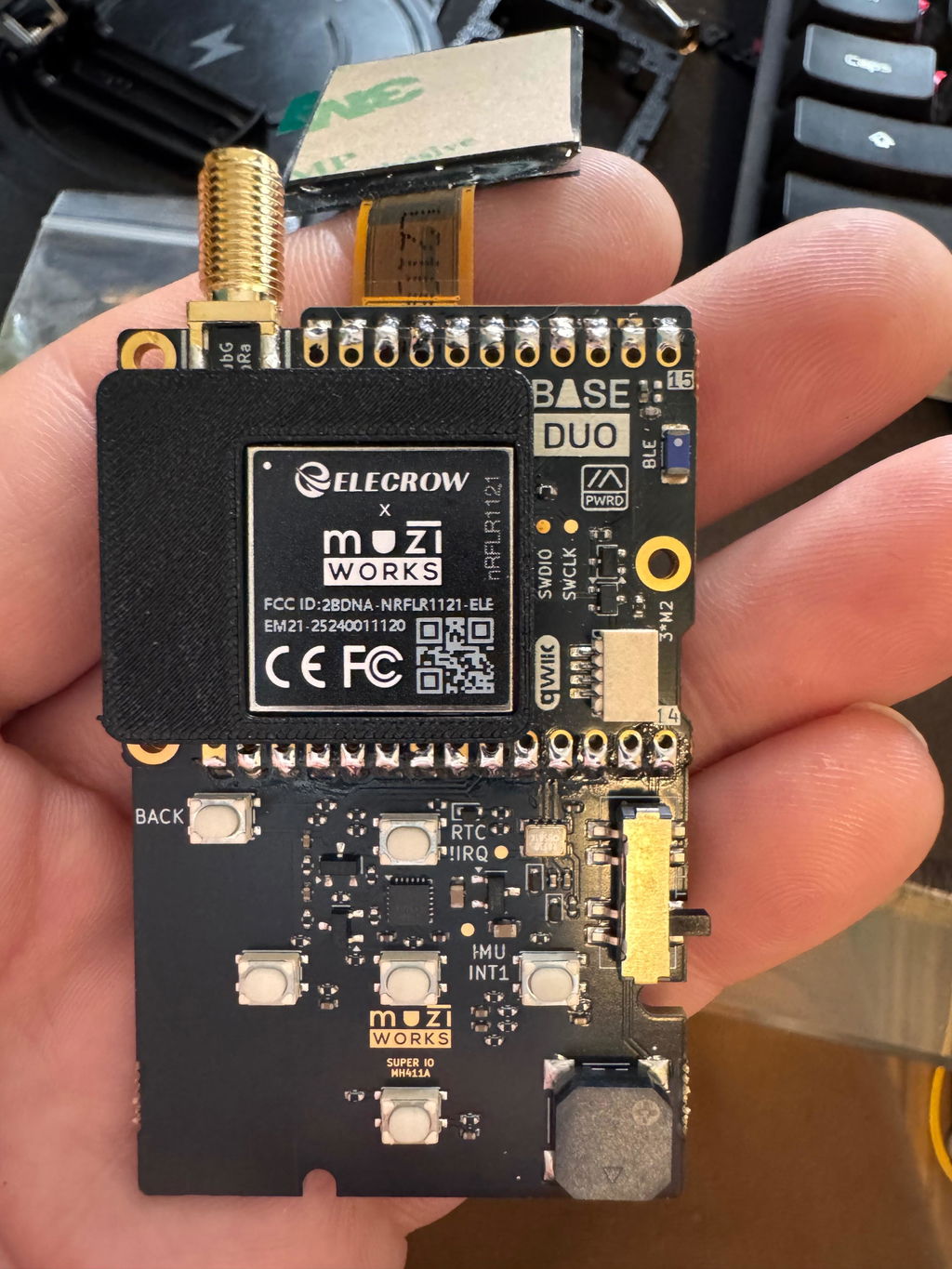

Assembly was easy once I understood where everything goes, but I would love an official step by step in the documentation to show the orientation and screen ribbon cable installation (i almost messed it up because im a noob)

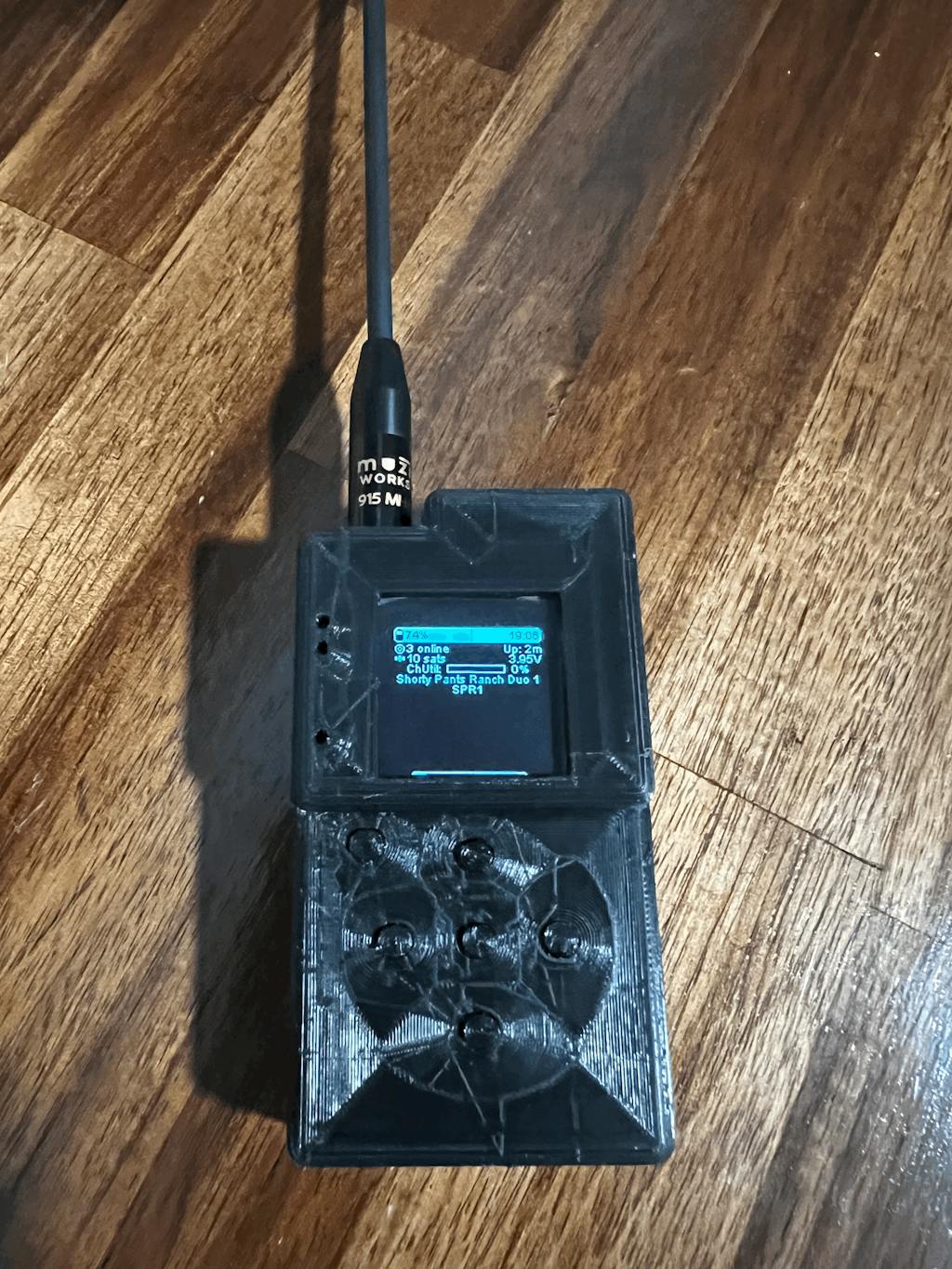

I Love this setup! everything works perfectly! I was a little disappointed at how little documentation there was for the Base duo/uno but was able to get Meshtastic loaded on and running in both 915mhz and 2.4ghz. These boards do a great job and work very well!! The OLED display works great, but is so small it is hard to read, wish it had a bigger display. I could not find a case so I made one, it can be found at https://www.printables.com/model/1619804-muzi-works-super-io-case
Excellent board! Didn’t realize i needed to solder the base board on (it does note this.. i just can’t read). Thankfully i was up to the task and it works great! OLED is very very fragile. Might be nice to see a case or carrier for it, but also if your soldering up dev boards, fragile is always on the menu.
Awesomeness
