SuperBase
SuperBase
Couldn't load pickup availability

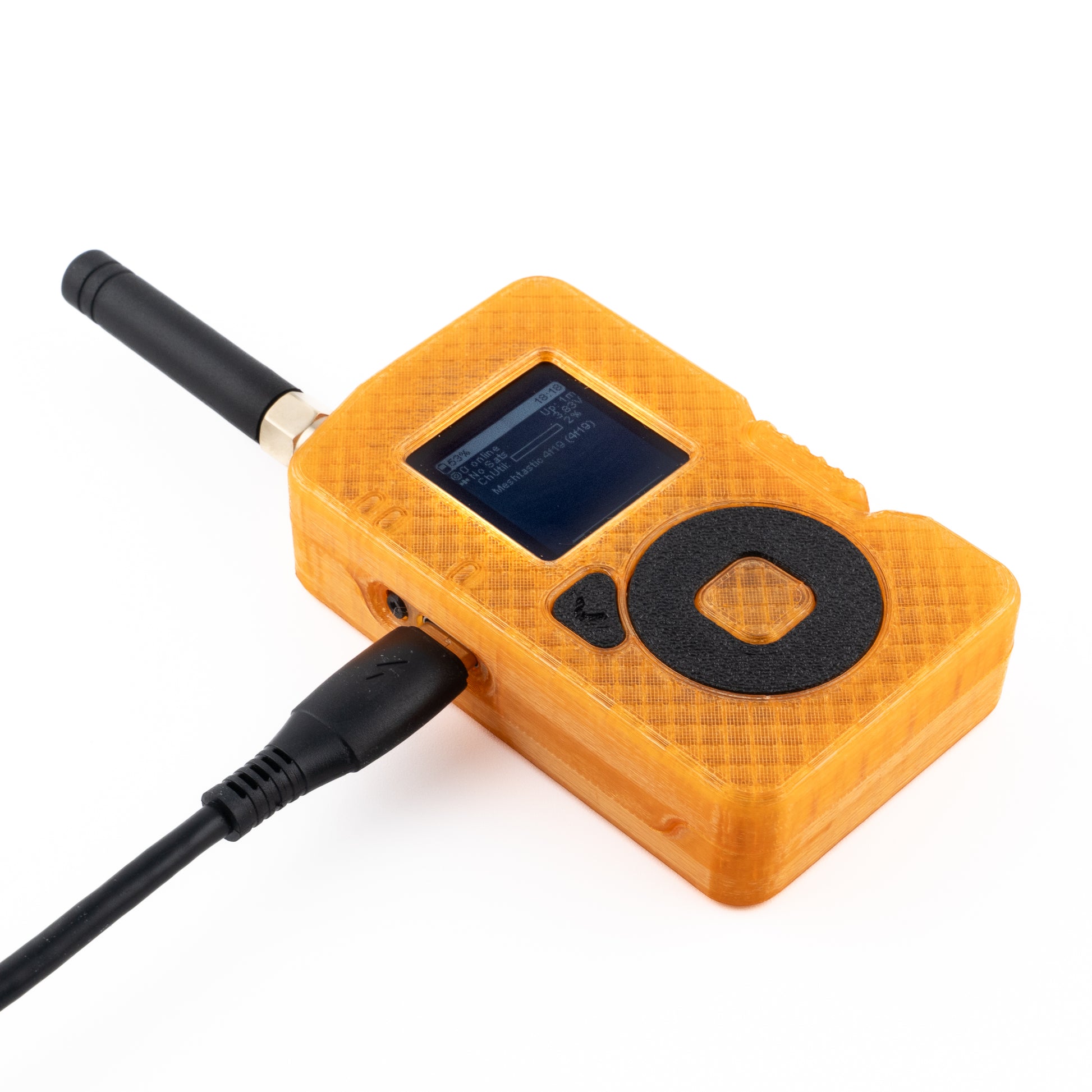

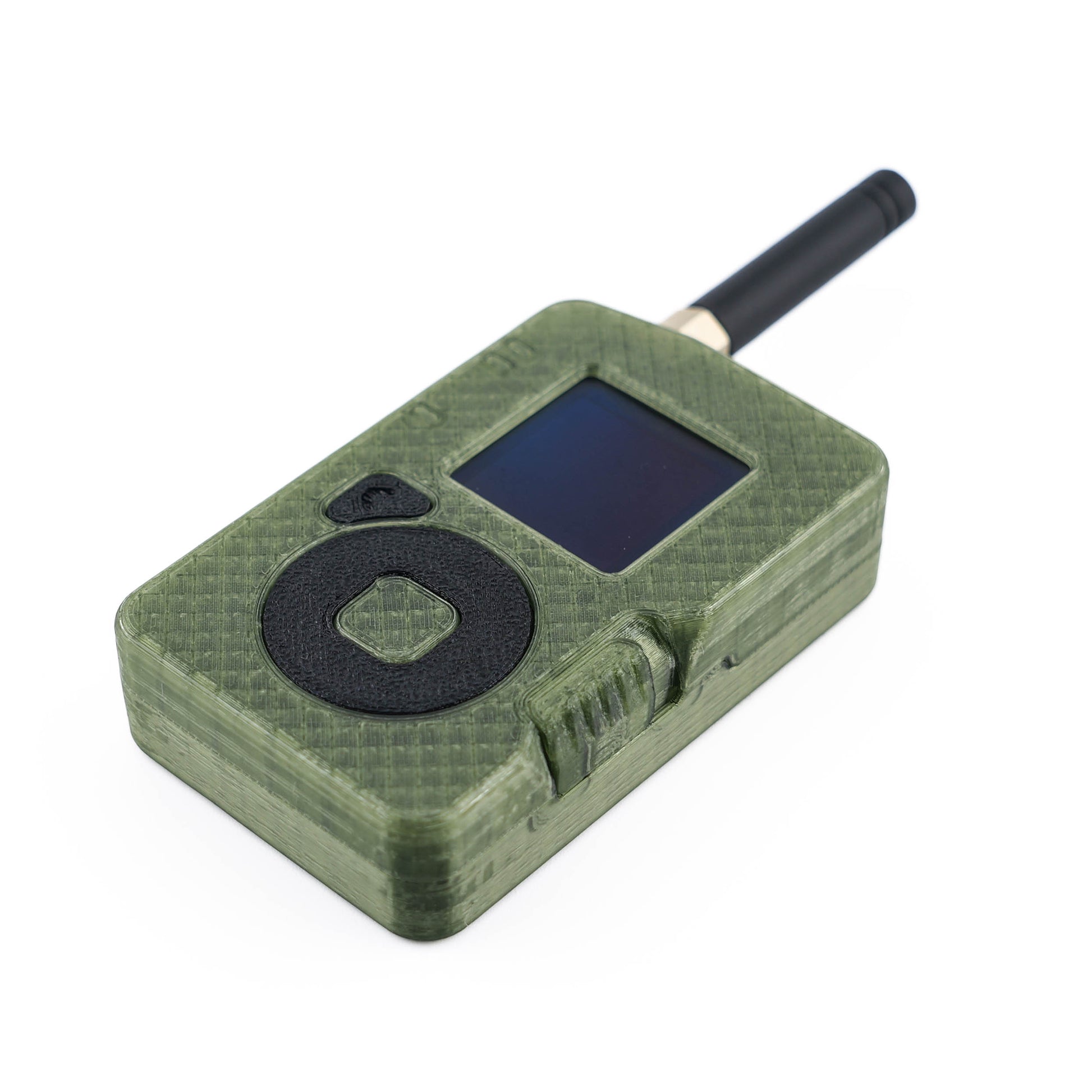

A standalone capable Meshtastic® device powered by Super IO and Base Uno. Unique 3D printed design in translucent PETG material with a universal 868MHz + 915MHz stubby antenna.
Soldering Instructions | Assembly Instructions
Key Features:
- Upgraded OLED Screen with large square format

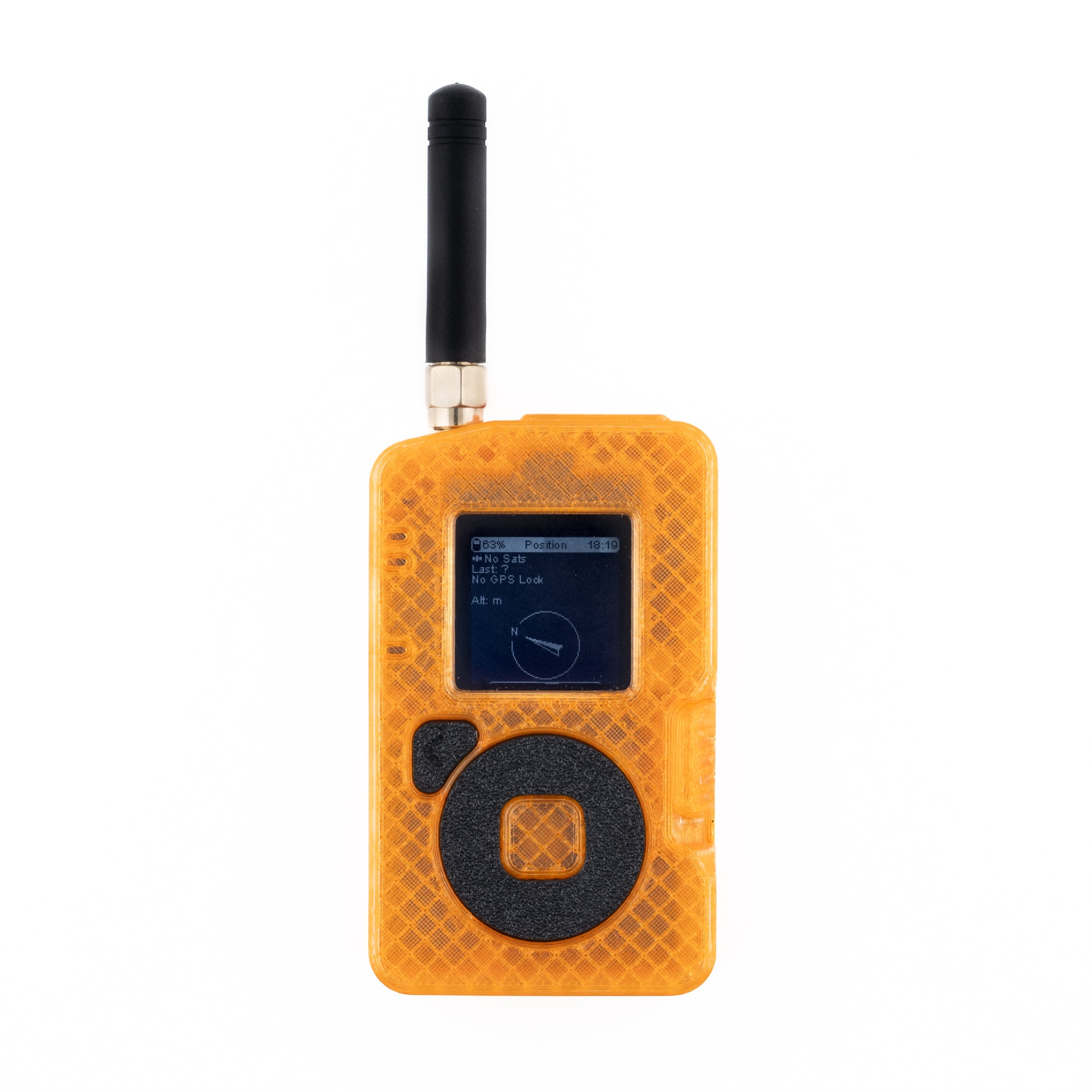

- Digital Compass
- 2 Mode Power Switch

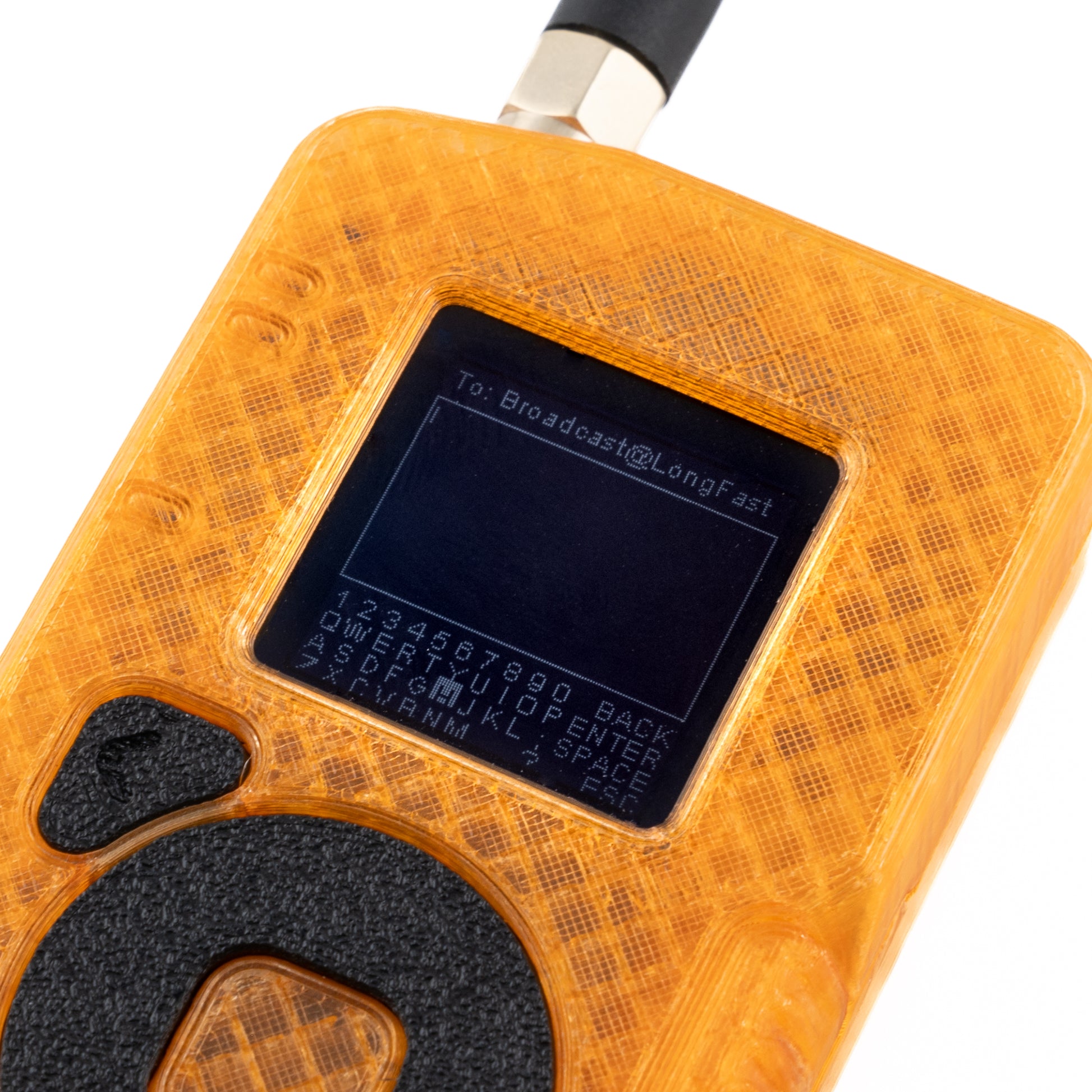

- Navigation Pad
- Built in GPS
- Fast Charging up to 1A
- Tone Buzzer
- Expanded Flash Storage
Using the ultra power efficient nRF52840 SoC, SuperBase will last up to 2 days with GPS enabled. Exact battery life depends on firmware version and mesh traffic.
Assembly instructions for building your DIY Kit.

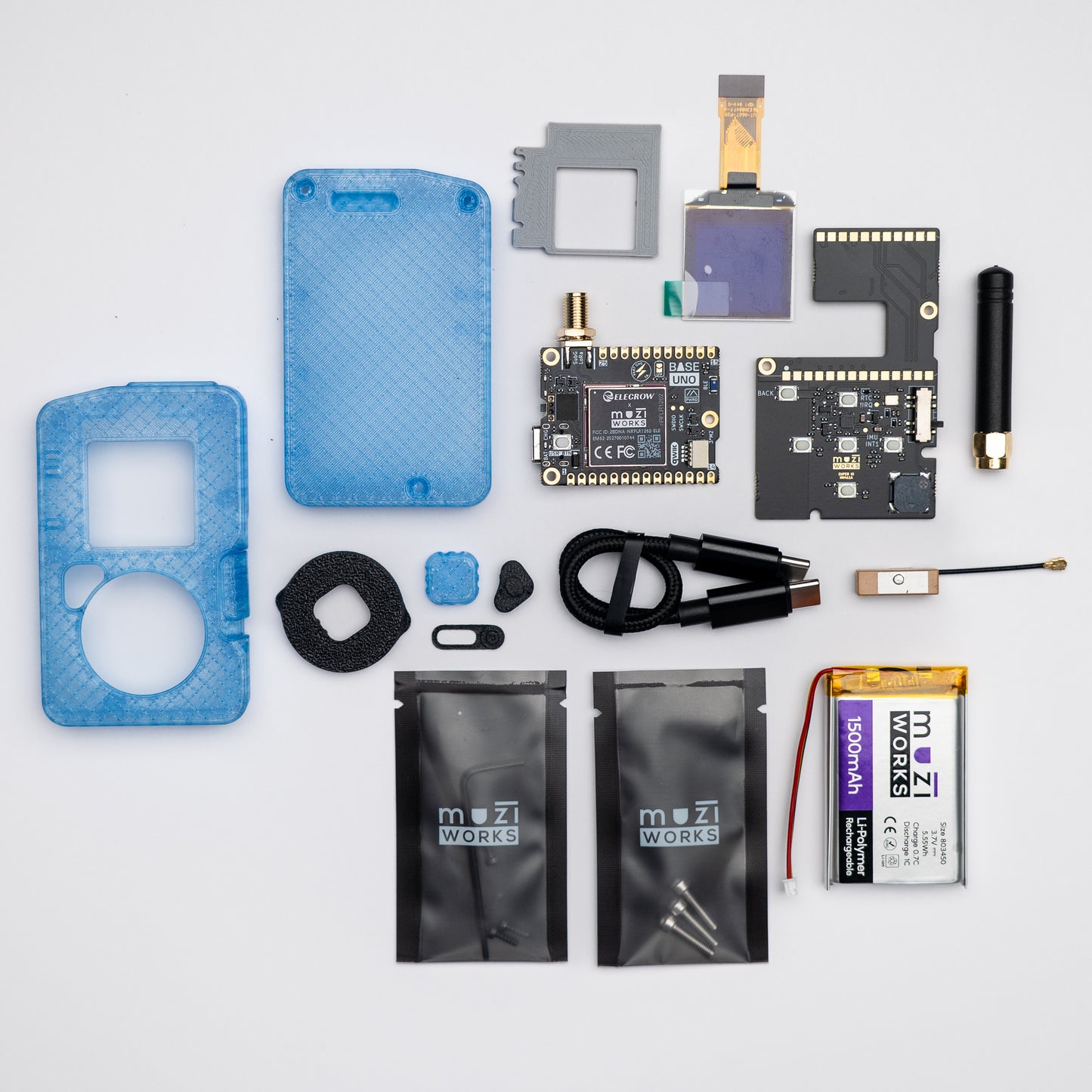

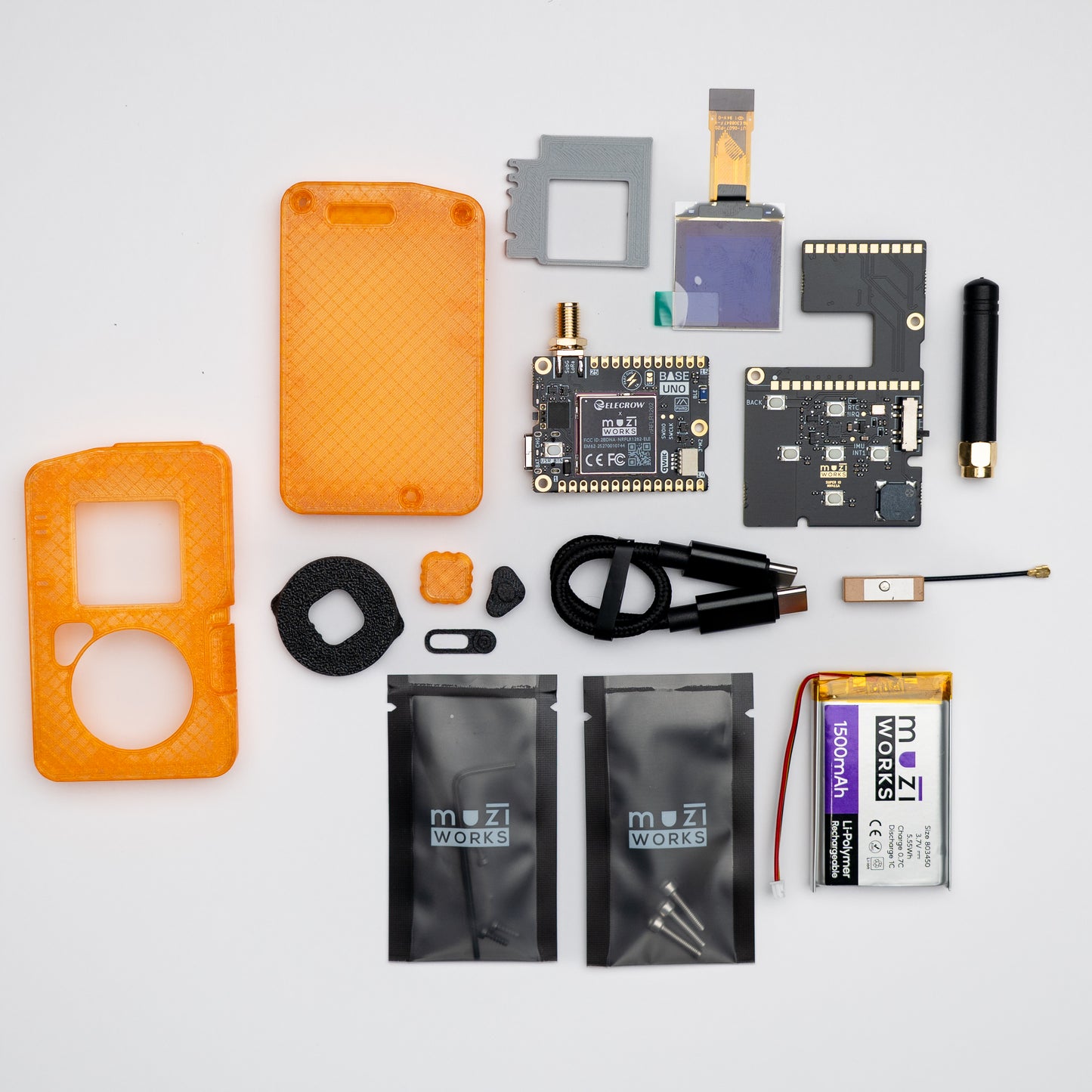

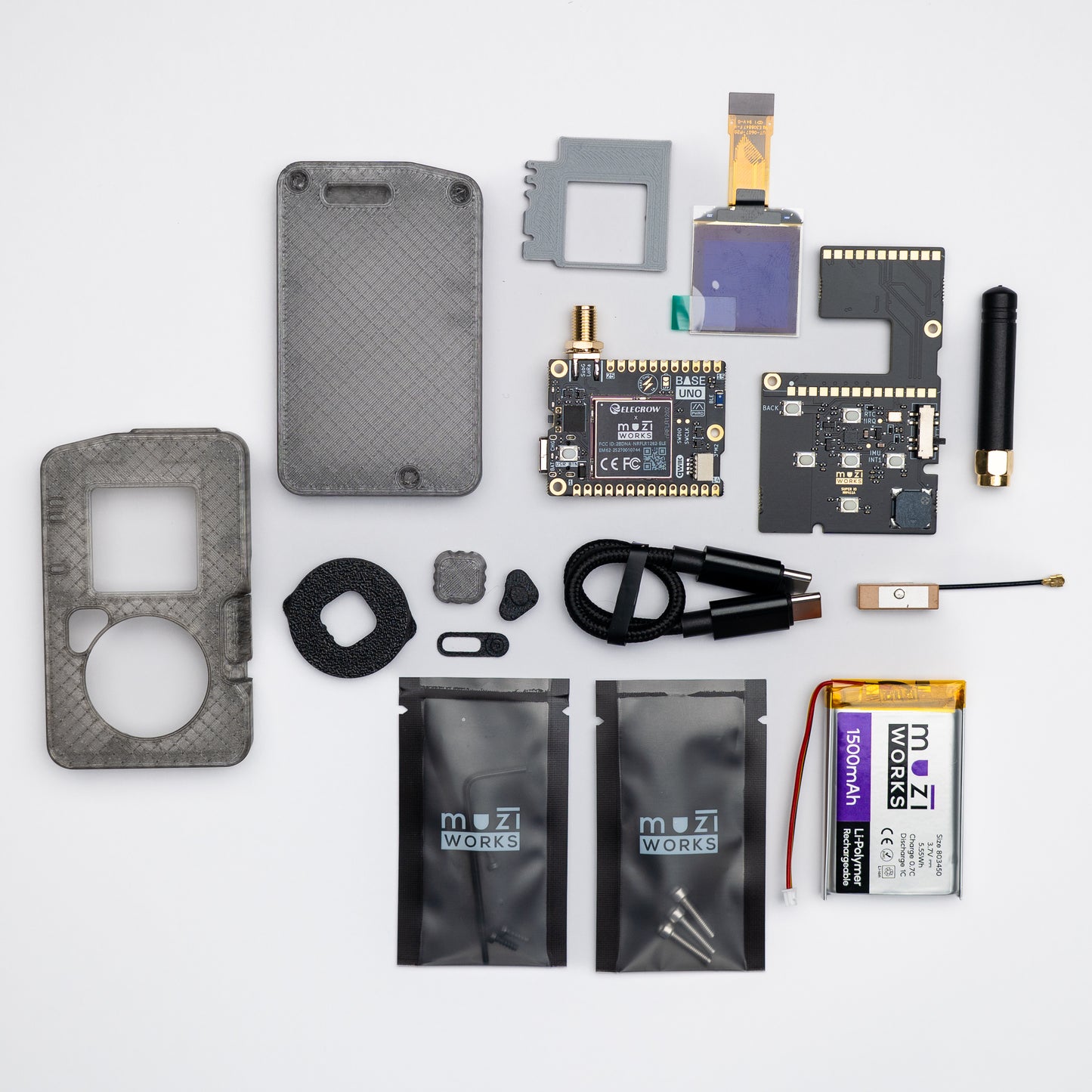

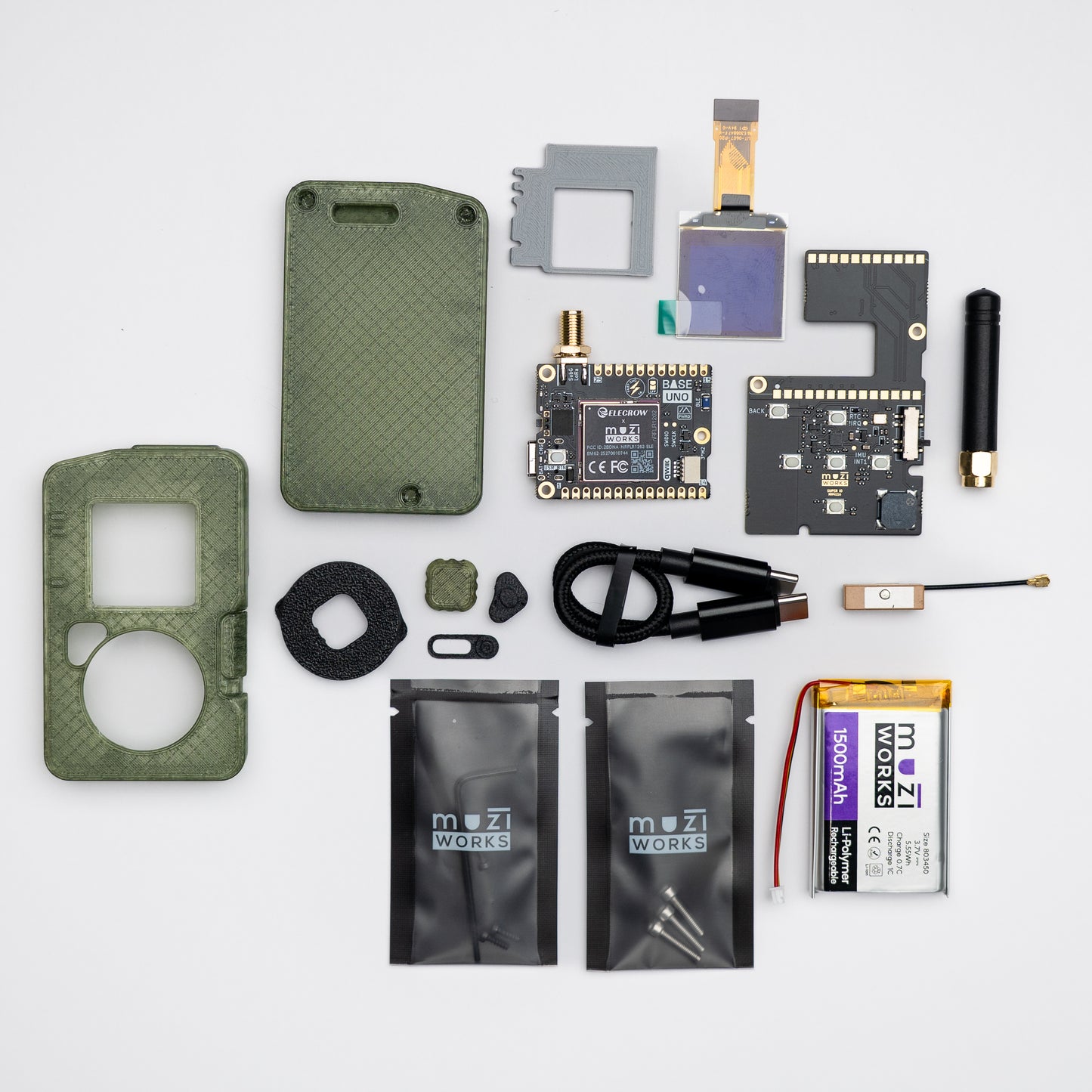

DIY Kit Includes:
- SuperBase case with buttons and screws
- Stubby Antenna
- OLED screen and bracket
- Base Uno and Super IO
- GPS Antenna
- BB15 1500mAh battery

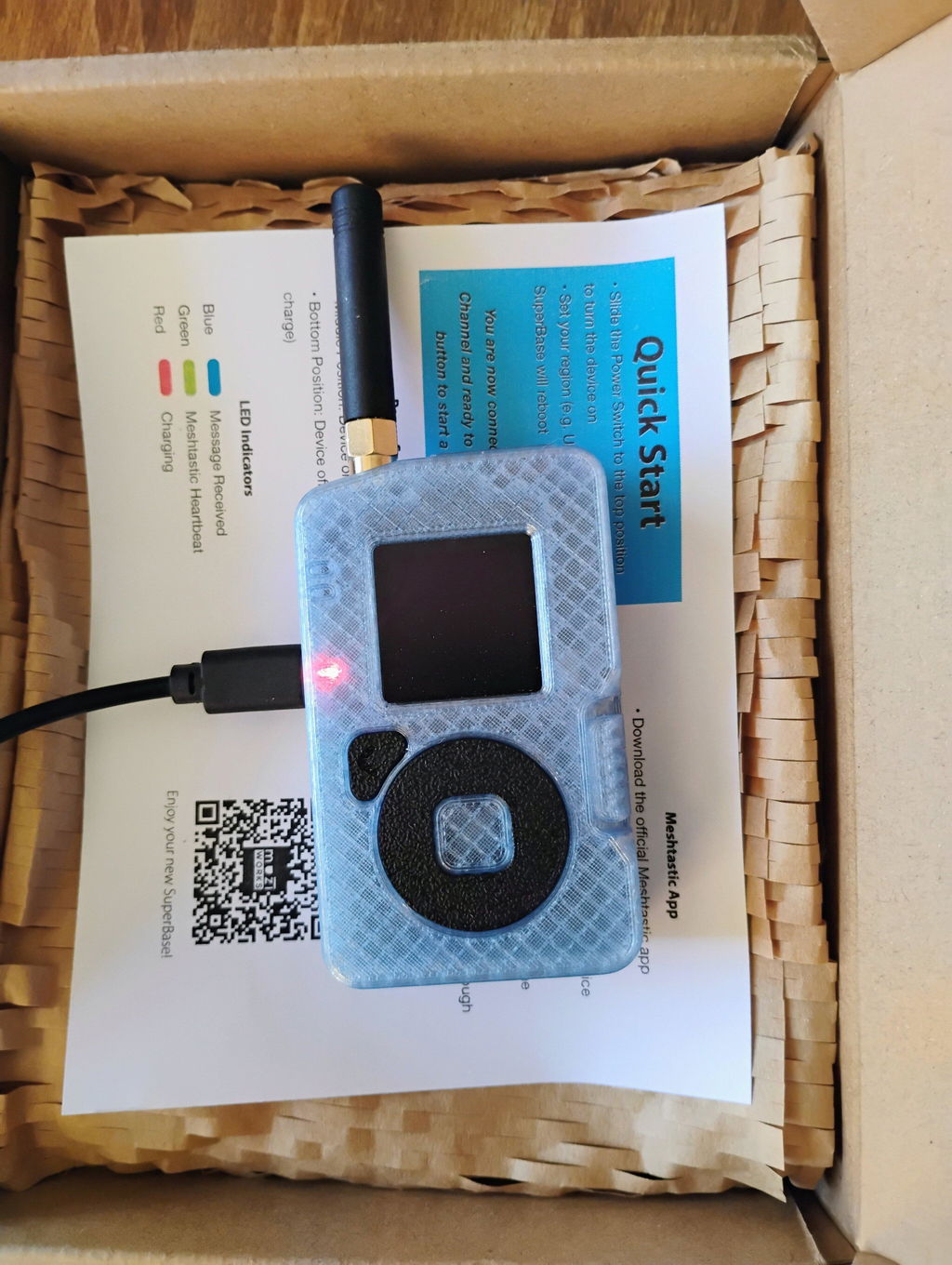

- Quick Start Guide
Specifications:
- Powered by nRF52840 + SX1262
- GNSS dual navigation system GPS/BDS
- Onboard RTC for accurate timekeeping
- Built-in buzzer for message notifications
- 1500mAh protected lithium-ion polymer battery
- USB-C data + power
- Universal 868/915MHz stubby antenna
Dimensions:
- Device: 47.8mm x 79.5mm x 19mm [1.88in x 3.13in x 0.75in]
- Stubby Antenna Length: 4.7cm [1.9in]
- 80.3g [2.8oz] (with stubby antenna)
Meshtastic® is a registered trademark of Meshtastic LLC. Meshtastic software components are released under various licenses, see GitHub for details. No warranty is provided - use at your own risk.
Share
I really enjoyed the process of building the kit, I did receive a faulty battery. Their CS team had me a replacement mailed out the first day after I contacted them. Would buy from again.

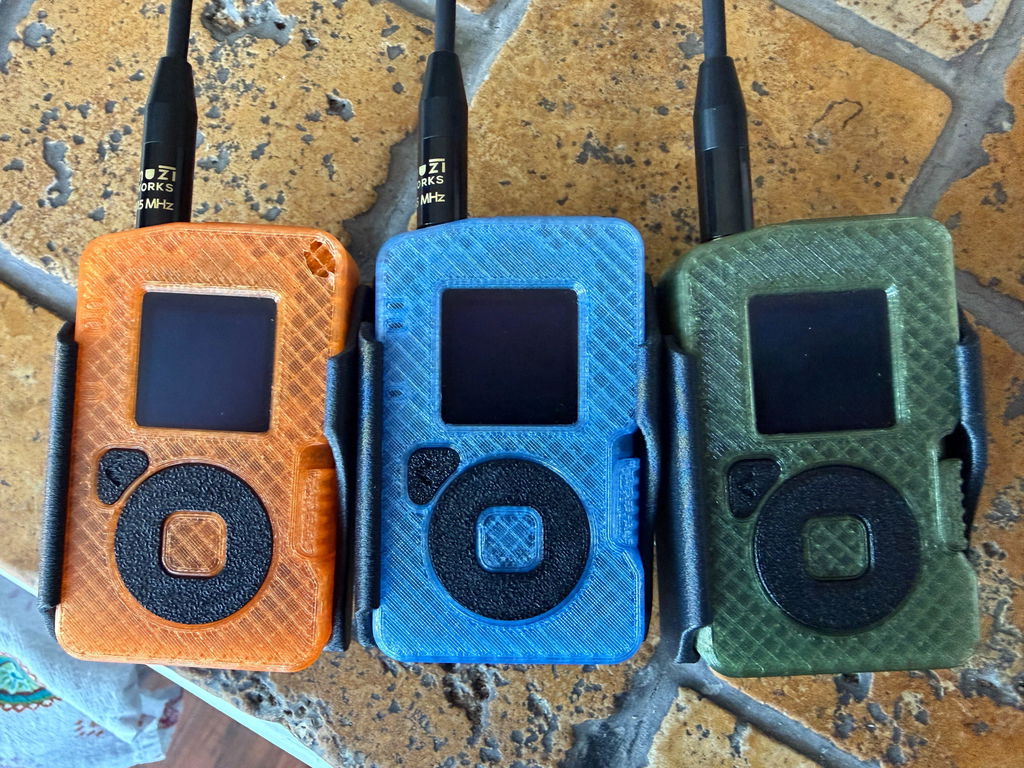

I bought one of the first nodes: the H1 node back before anyone in my area had meshtastic radios. Now in 2026, we have dozens of users. I wanted to upgrade to the SuperBase because of the efficient nRF52840 MPU and the navigation pad so that I can use it without a tablet or phone. This node allows me to send preset messages and "free hand" via a screen QWERTY keyboard. The GPS and compass are nice as well. Bought the upgraded 915MHz antenna for it. Blue is beautiful too. Will play with it more once the battery is fully charged. Happy camper here :o)
Great starter radio for meshing around on Meshtastic. Battery life is very good and the user interface provides a better button experience as well as additional features you won’t find on a generic radio.
Muziworks also has great customer support if any issues arise and stand behind their product. Check out their other radios like the Base Uno and related cases.

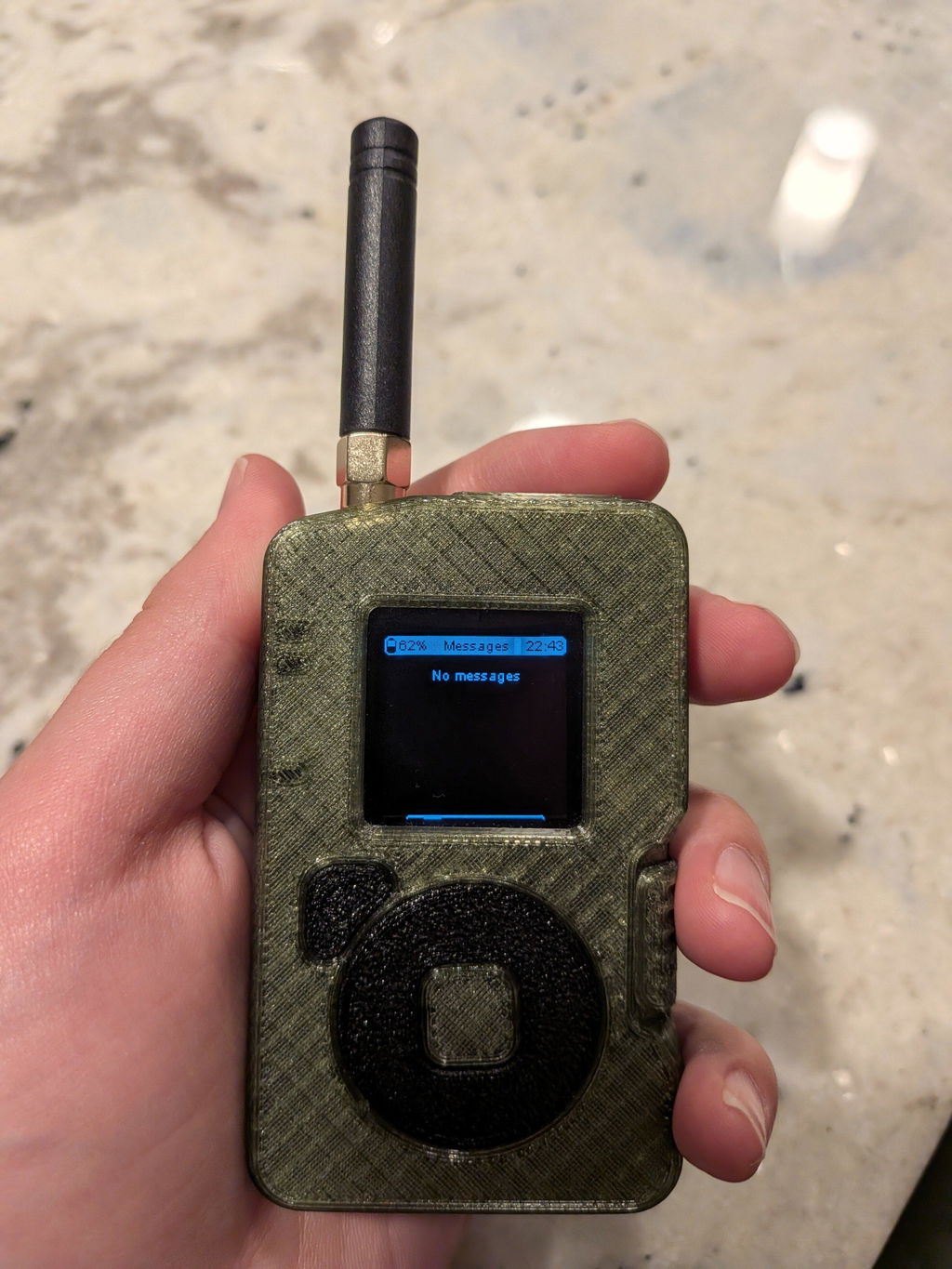

Amazing meshtastic node. Super portable for on the go use. Pretty good range for me. The standalone messaging is very nice to have as a backup, but probably not the best if you plan to use it standalone frequently.
