R1 Neo - Complete Meshtastic® Device with GPS

Name: R1 Neo - Complete Meshtastic® Device with GPS
Brand: muzi ᴡᴏʀᴋꜱ
SKU: MM-R1N-K-US
Price: 89.0 USD
Availability: InStock

$89.00 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Meshtastic® Approved Device. Flashed complete ready-to-use device. Fast charge via USB-C.

View full details

Get lost, then get home again.

The R1 Neo with built-in GPS and improved rugged design, now in a smaller package. Water resistant to handle whatever conditions meet you on your adventures. Multi day battery life to get you there and back.

Features

- New water resistant design
- Aircraft grade aluminum base with 3D printed PETG Carbon Fiber
- Smaller than previous generation R1 by 16%
- Built-in GPS with complete power switch off
- Flexible whip antenna
- Improved efficiency, multi-day battery life with GPS on
- Battery temperature safety sensing

SEALING GASKETS

Protecting the device from elements was our first priority. Adventures can get messy sometimes – we get it.

Custom SMA connector with an O-ring
IP68 rated USB-C connector with built-in gasket
Enclosure base sealed with a compression gasket

Specifications
- R1 Neo baseboard powered by nRF52840 + SX1262
- GNSS dual navigation system GPS/BDS
- Onboard RTC for accurate timekeeping
- Built-in buzzer for message notifications
- 2 hour fast charge
- 1500mAh protected lithium-ion polymer battery
- USB-C data + power
What's Included
- R1 Neo Device
- Whip Antenna, choice of 915MHz or 868MHz
- USB-C to USB-C Cable
- Quick Start Guide

INTEGRATED SOFT TOUCH BUTTON + INDICATOR

One button design. Soft touch elastomer is fused to the enclosure, semi-translucent to pass through the LED indicator.

We built a custom IO controller to combine all functionality into an easy to use weatherproof design.

Dimensions
- Case: 58.0mm x 63.5mm x 17.8mm [2.3in x 2.5in x 0.7in]
- Antenna length: 17cm [6.7in]
- 84g [2.96oz]
Warranty Information
R1 Neo is backed by our standard one year warranty. Factory sealed weather resistance – read more here.
[Designed and assembled in USA]
Meshtastic® is a registered trademark of Meshtastic LLC. Meshtastic software components are released under various licenses, see GitHub for details.

Amazing devide!

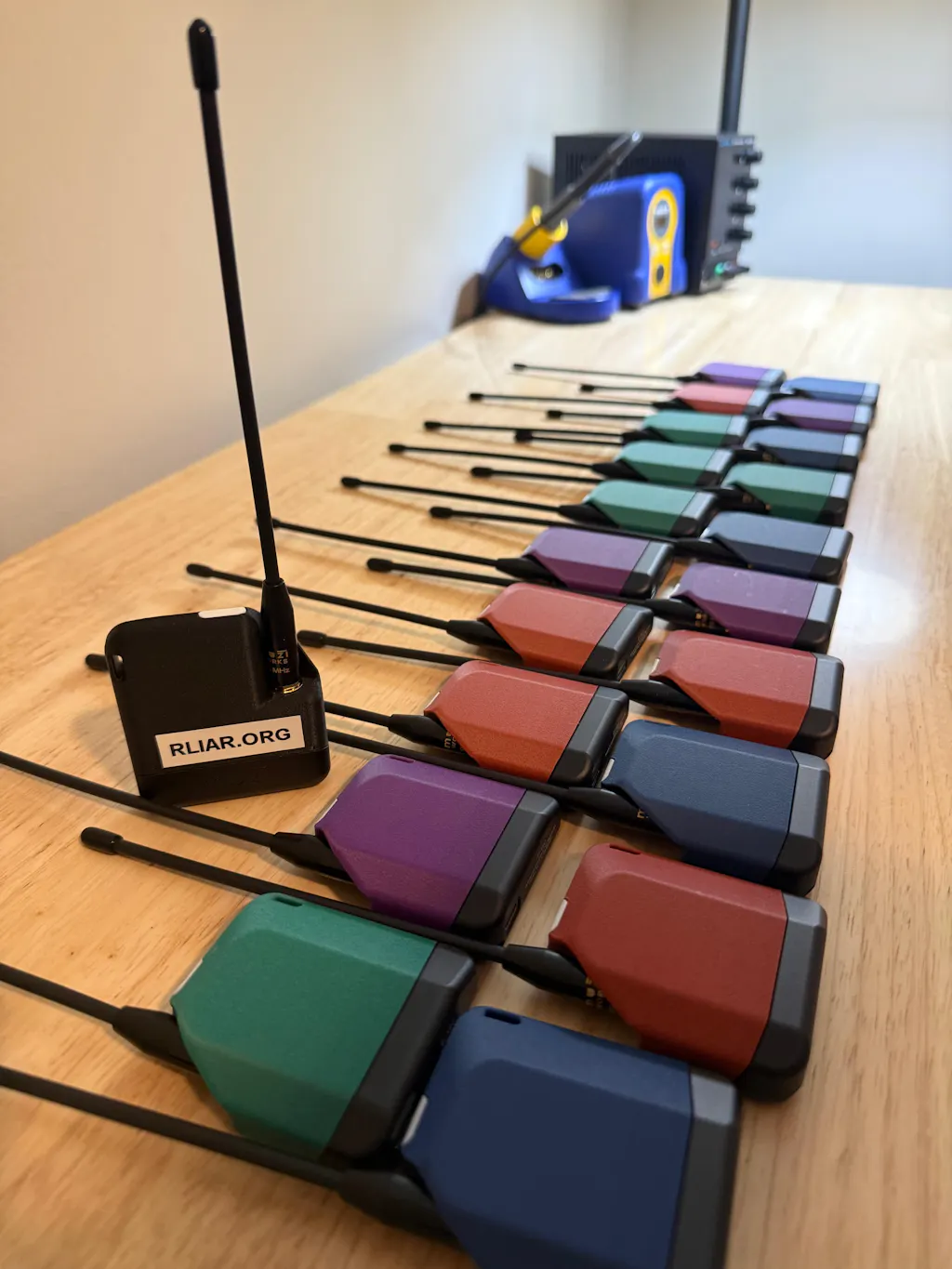

These little meshtastic devices were perfect for our adventure race. We purchased 20 of these to track race teams through the back country. With high powered nodes we were able to create a broad area mesh. Very cool. Very convenient.

Impressive build quality and implementation. The complete package.

I was a little wary in ordering this. Including 3D printed components typically means the quality isn't great. And boy was I wrong. This may be the finest 3d printed components I've seen. I am completely confident in its IP rating.

I'm new to meshtastic hardware, so keep that in mind. Technically in the weeks I've been using it, the range appears as promised. Connectivity between the phone and is really good - range is great and connection is rock solid.

I plan on getting a second for other members of my party and I'll be able to put it to a better test.

Super small footprint, looks professionally made and its not 3d printed junk like some of the others on the market.

Almost perfect for what I need

Overall, the MuZi R1 Neo is a very well-designed device. However, it does have a few weaknesses that only become apparent after extended use. For example, the charging status displayed in the app is sometimes unreliable. This definitely needs improvement. Nevertheless, I appreciate the device itself and will continue to recommend it.

Very nice unit with just minor flaws

I really like the build of the device. It works well and seems to connect to the app easily. As it is flashed it is not able to connect to the Meshtastic web client however. It sees the com port and attempts to connect but never is able to get data from the device. Hopefully this if fixed in a firmware update.
Other than that I like it a lot and it is small and convenient.
