R1 Neo - Complete Meshtastic® Device with GPS

Name: R1 Neo - Complete Meshtastic® Device with GPS
Brand: muzi ᴡᴏʀᴋꜱ
SKU: MM-R1N-K-US
Price: 89.0 USD
Availability: InStock

$89.00 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Meshtastic® Approved Device. Flashed complete ready-to-use device. Fast charge via USB-C.

View full details

Get lost, then get home again.

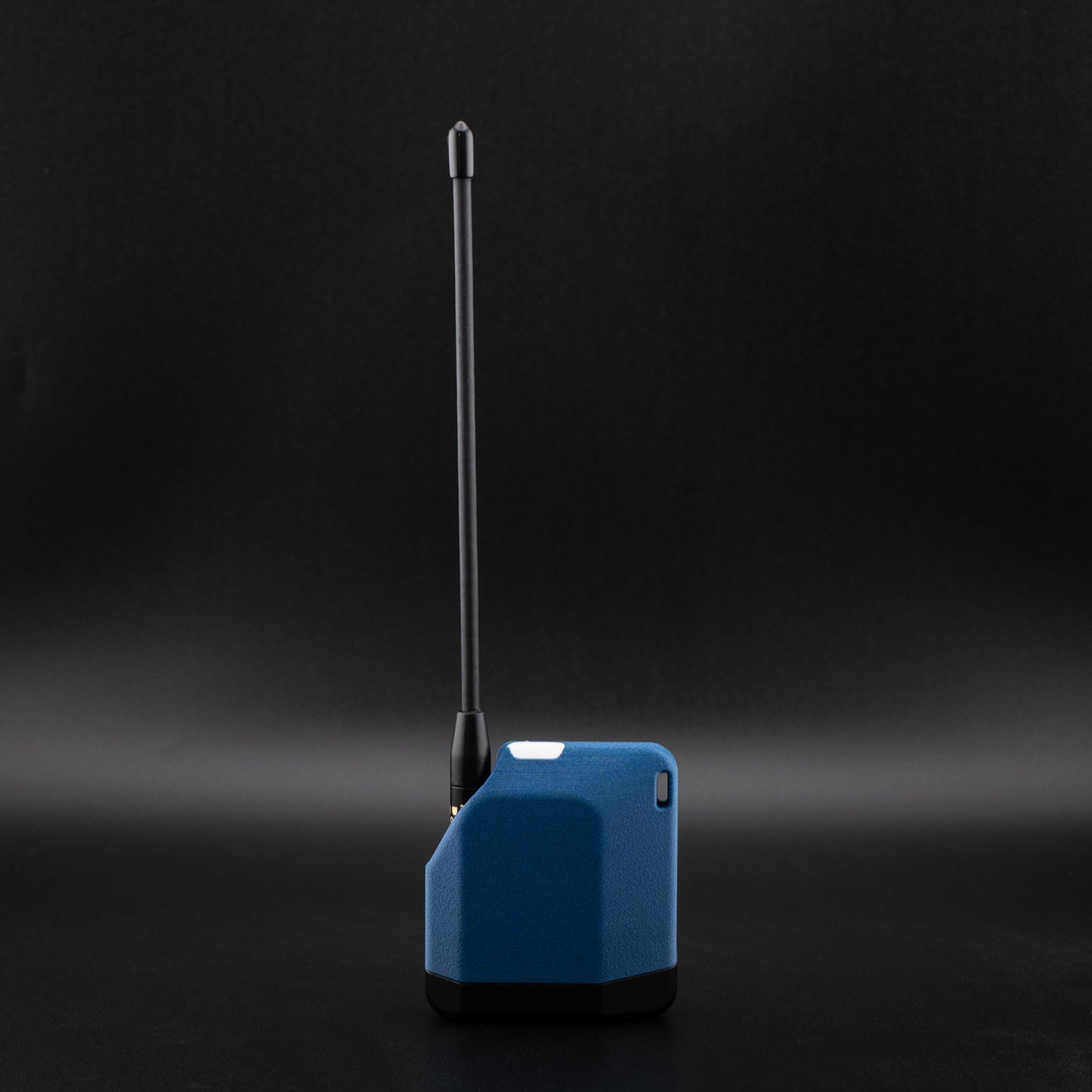

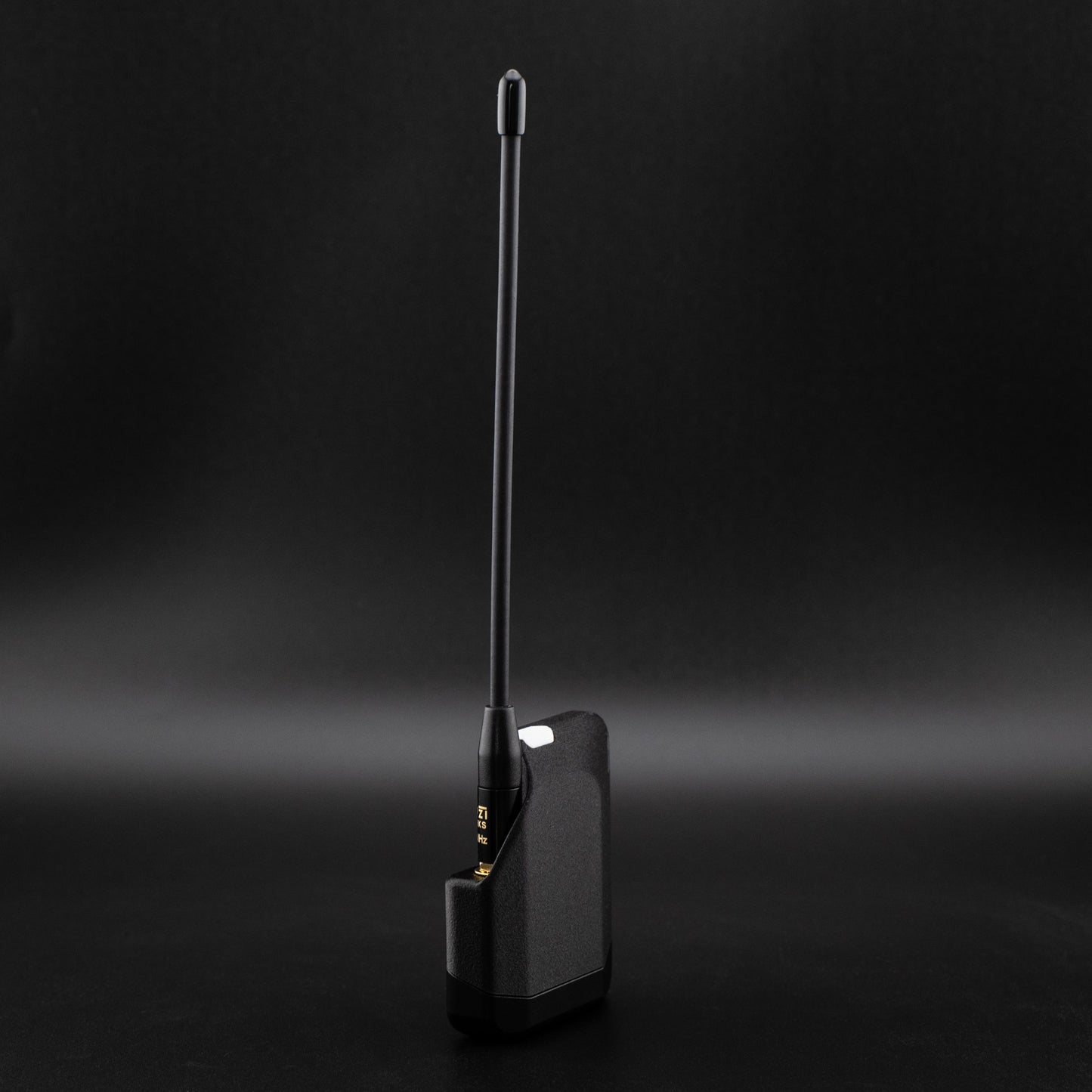

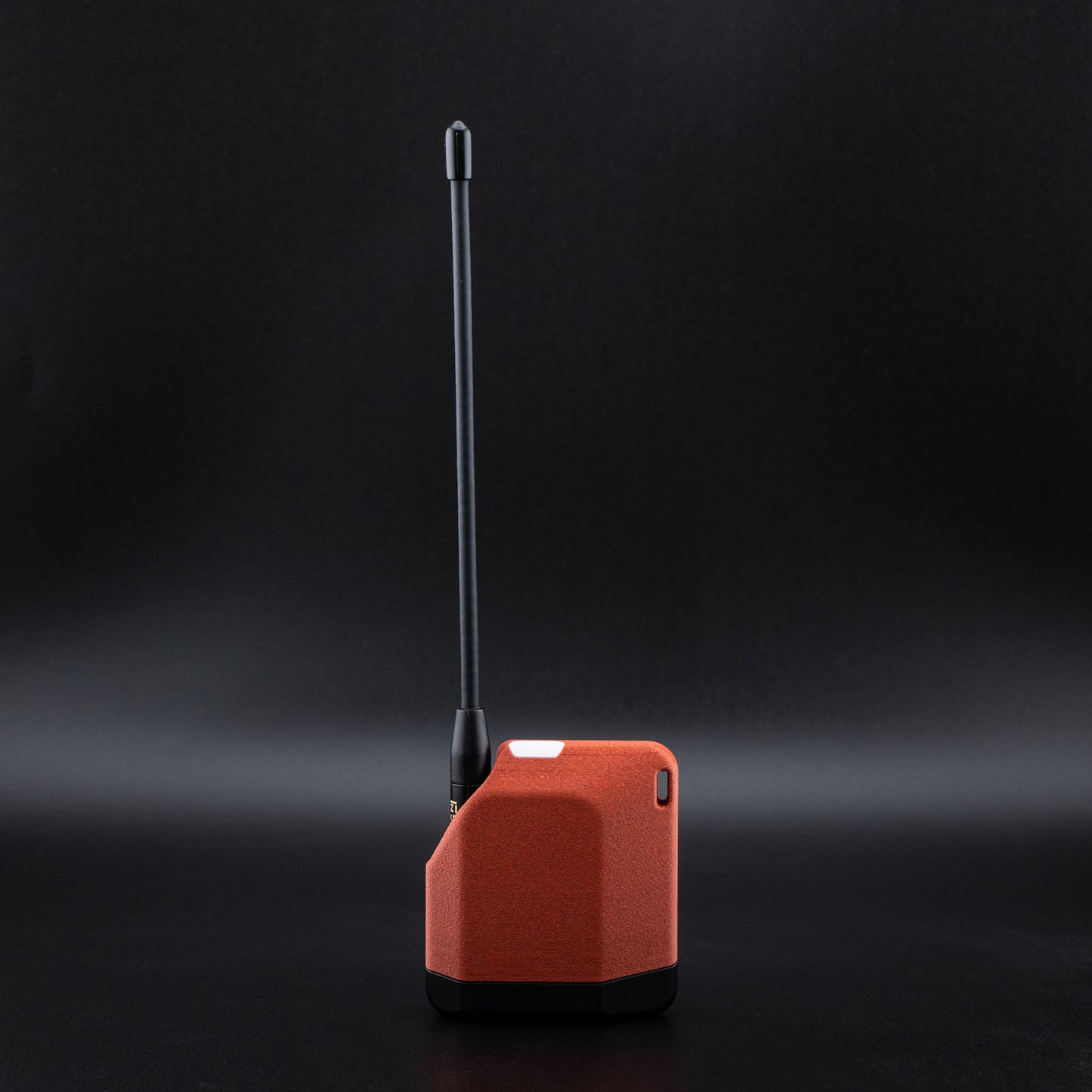

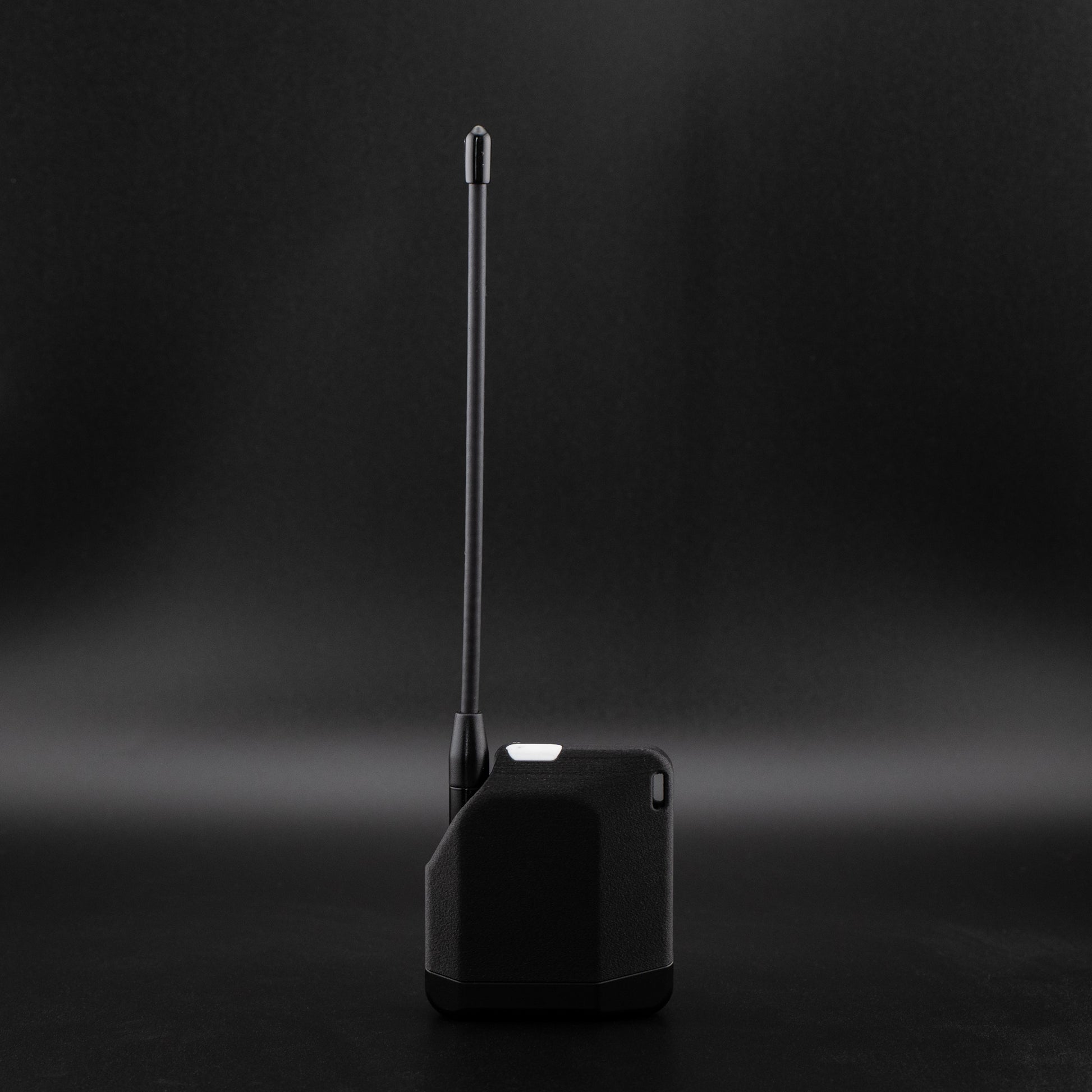

The R1 Neo with built-in GPS and improved rugged design, now in a smaller package. Water resistant to handle whatever conditions meet you on your adventures. Multi day battery life to get you there and back.

Features

- New water resistant design
- Aircraft grade aluminum base with 3D printed PETG Carbon Fiber
- Smaller than previous generation R1 by 16%
- Built-in GPS with complete power switch off

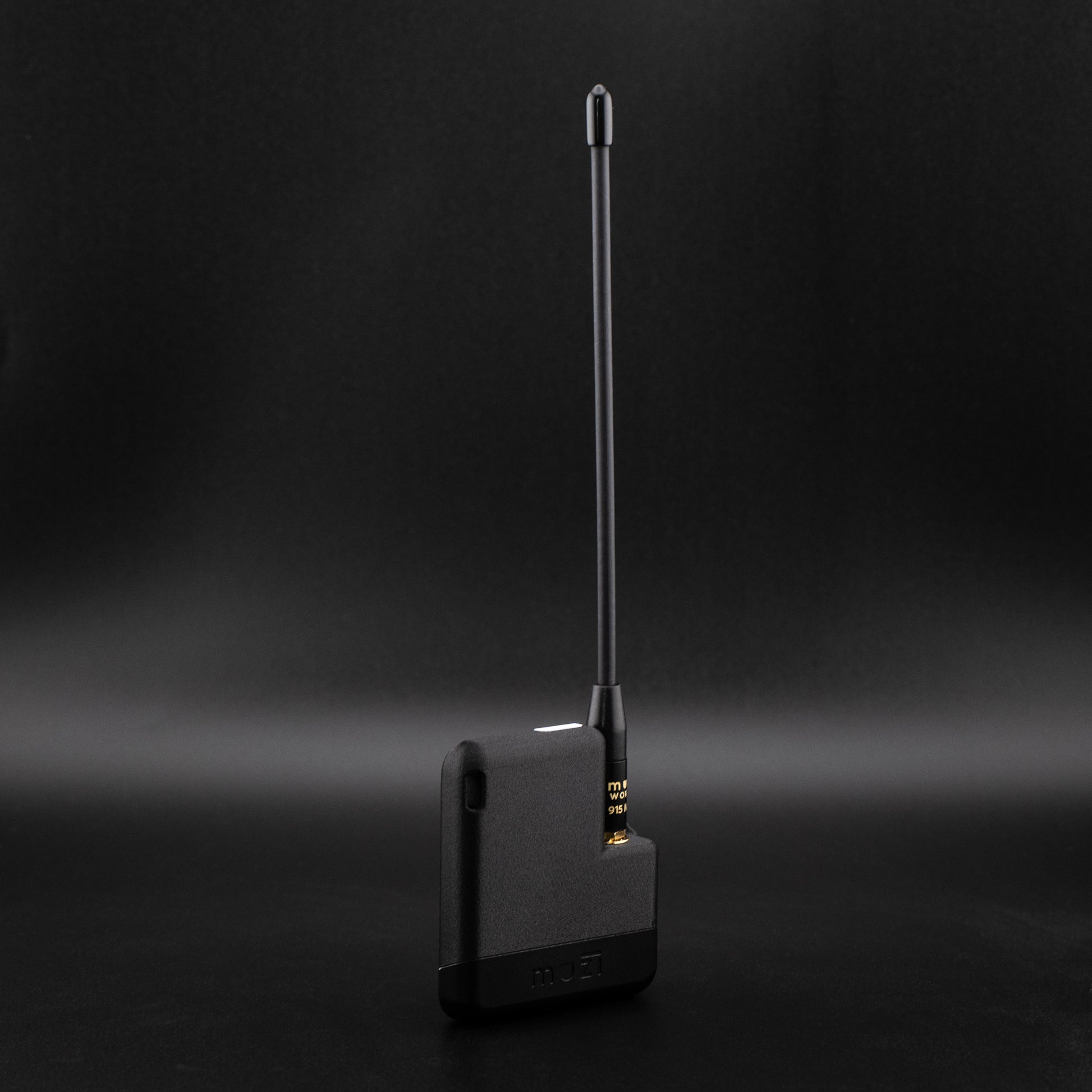

- Flexible whip antenna
- Improved efficiency, multi-day battery life with GPS on
- Battery temperature safety sensing

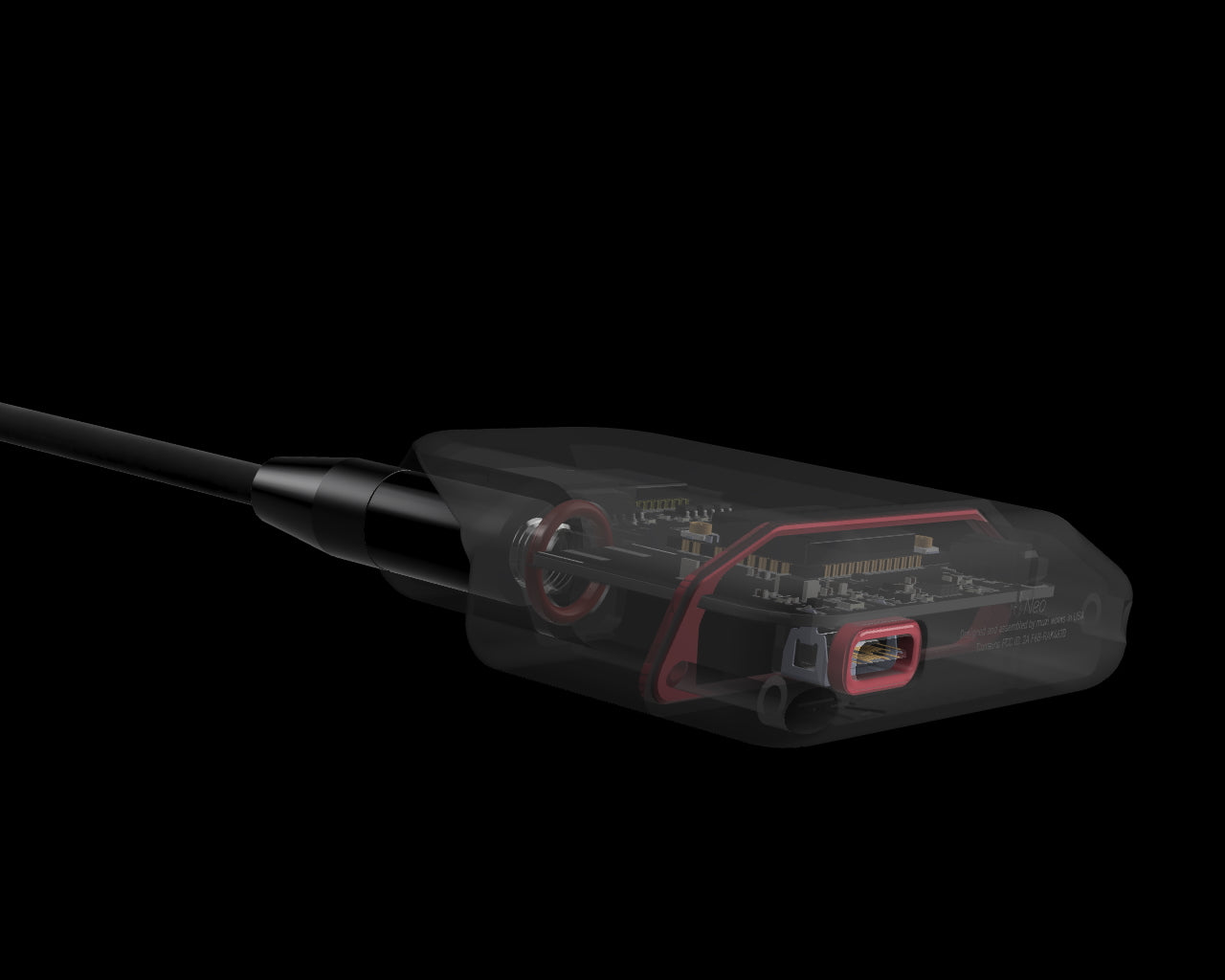

SEALING GASKETS

Protecting the device from elements was our first priority. Adventures can get messy sometimes – we get it.

Custom SMA connector with an O-ring

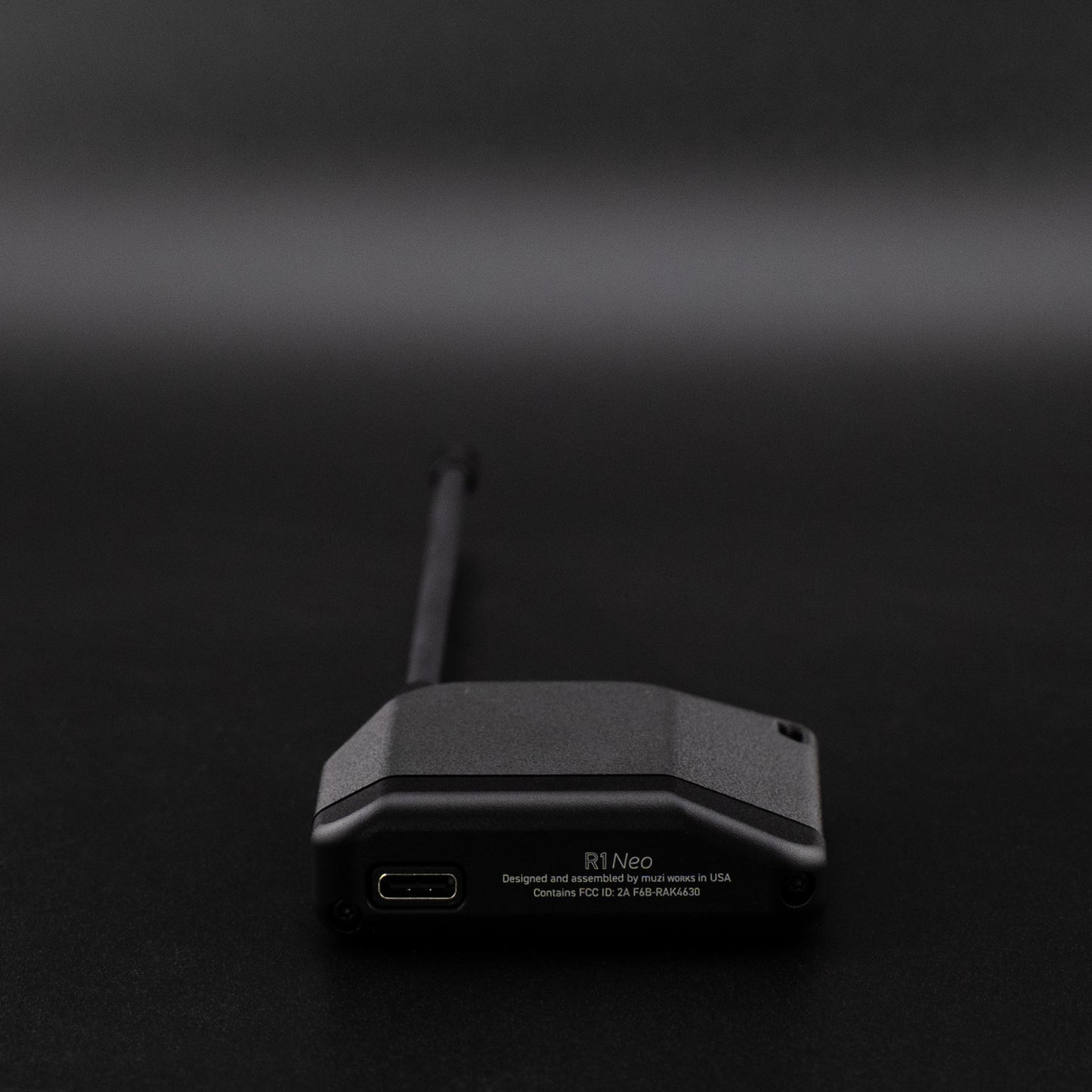

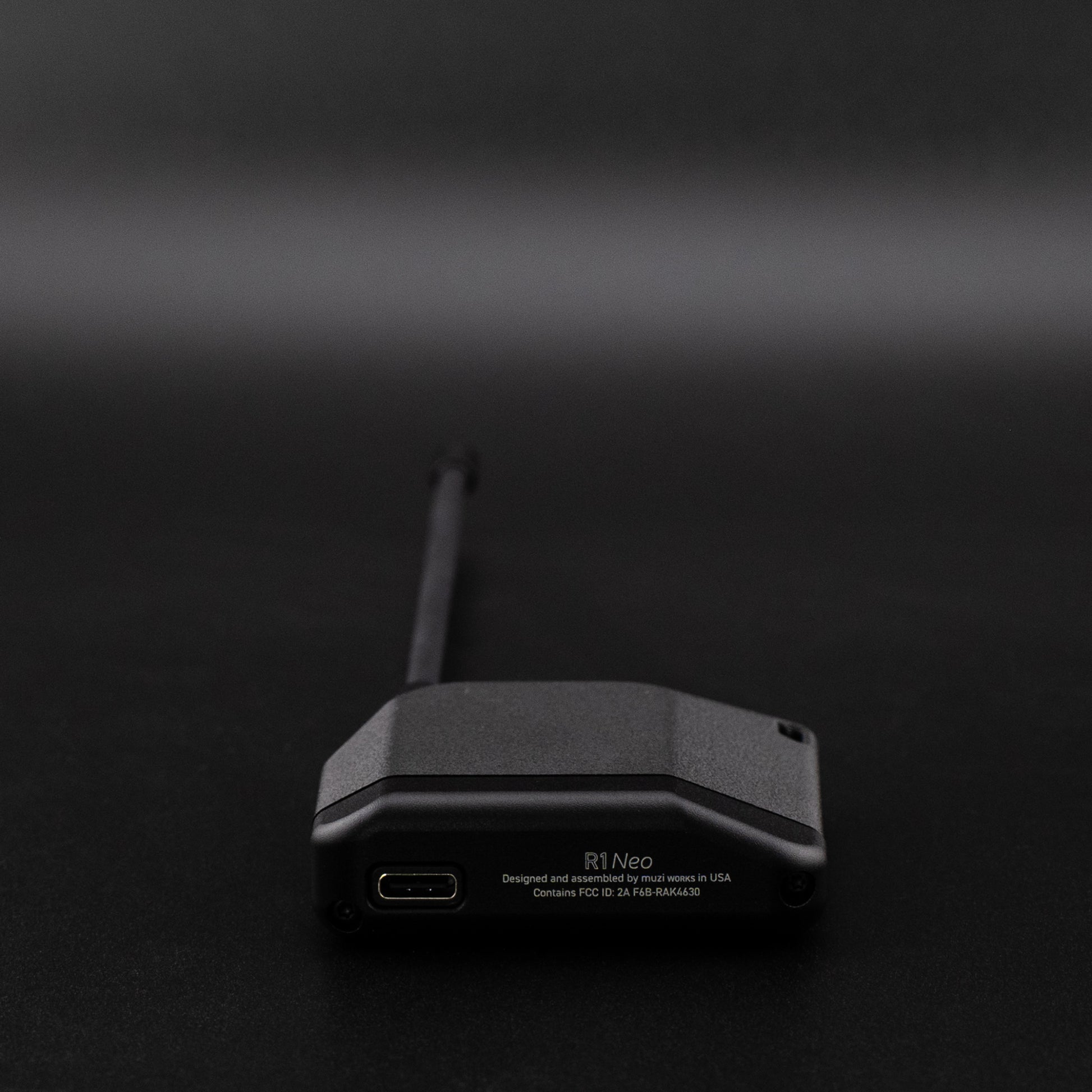

IP68 rated USB-C connector with built-in gasket
Enclosure base sealed with a compression gasket

Specifications
- R1 Neo baseboard powered by nRF52840 + SX1262
- GNSS dual navigation system GPS/BDS
- Onboard RTC for accurate timekeeping
- Built-in buzzer for message notifications
- 2 hour fast charge
- 1500mAh protected lithium-ion polymer battery
- USB-C data + power
What's Included
- R1 Neo Device
- Whip Antenna, choice of 915MHz or 868MHz
- USB-C to USB-C Cable
- Quick Start Guide

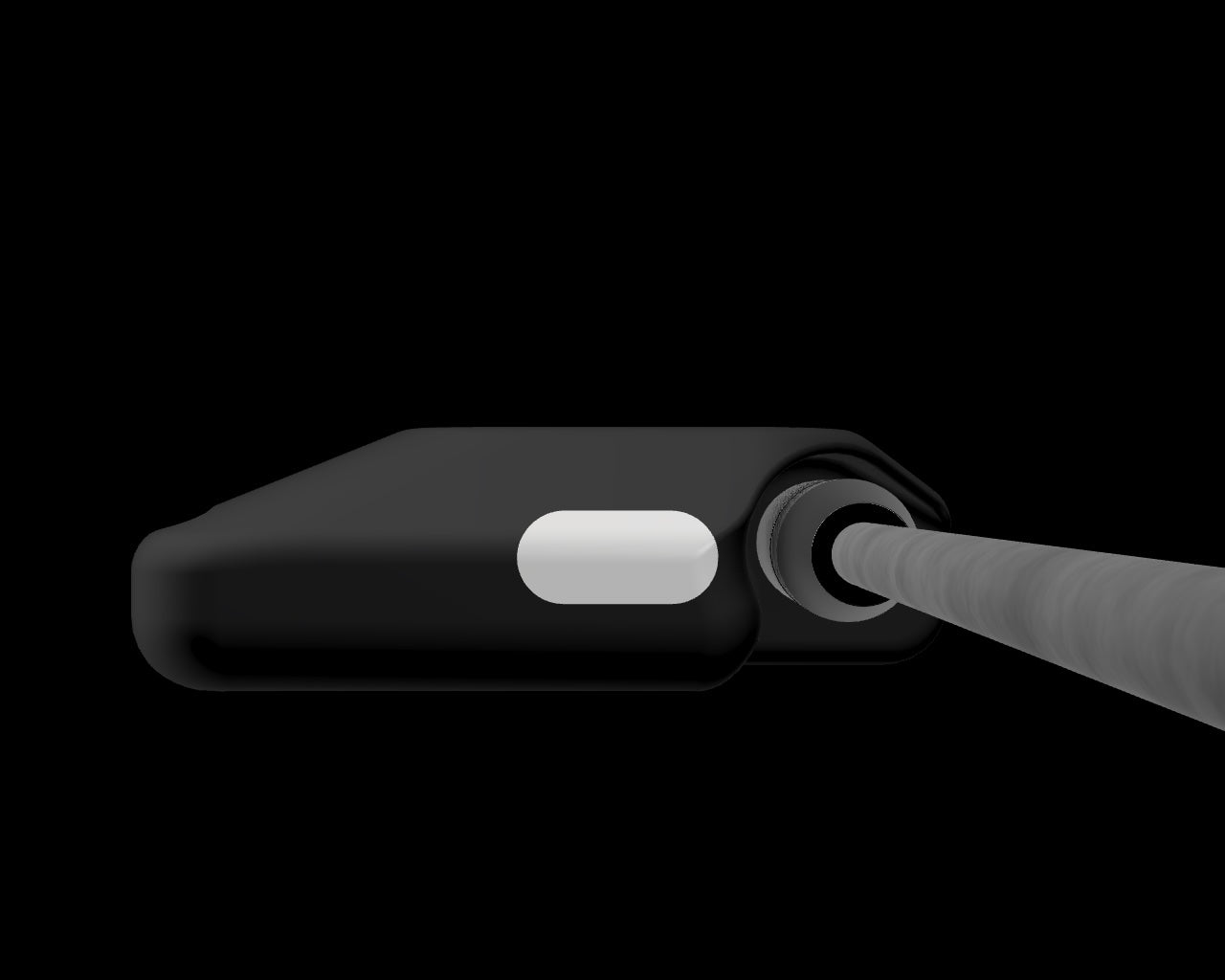

INTEGRATED SOFT TOUCH BUTTON + INDICATOR

One button design. Soft touch elastomer is fused to the enclosure, semi-translucent to pass through the LED indicator.

We built a custom IO controller to combine all functionality into an easy to use weatherproof design.

Dimensions
- Case: 58.0mm x 63.5mm x 17.8mm [2.3in x 2.5in x 0.7in]
- Antenna length: 17cm [6.7in]
- 84g [2.96oz]
Warranty Information
R1 Neo is backed by our standard one year warranty. Factory sealed weather resistance – read more here.
[Designed and assembled in USA]
Meshtastic® is a registered trademark of Meshtastic LLC. Meshtastic software components are released under various licenses, see GitHub for details.

BLE the only limitation

It works exactly as desired. It is built with thought and useful specs. I do wish the bluetooth was stronger as the strength of connection drops EXTREMELY quickly if you are not right on top of it.

Otherwise I'm quite happy.

I wish there were more instructions or documentation on how to use the product.

Seems OK but

GPS has me several kilometers away from my actual position

forgot to mention simply what it does

Specs and all, yes. But what does this doe actually? It connects as a mesh device, we get that. Then what?type a message on a phone?

The best pocket carry node money can buy

I was torn between 4 and 5 because of one flaw, but I can’t see any better node for EDC currently, so it’s 5

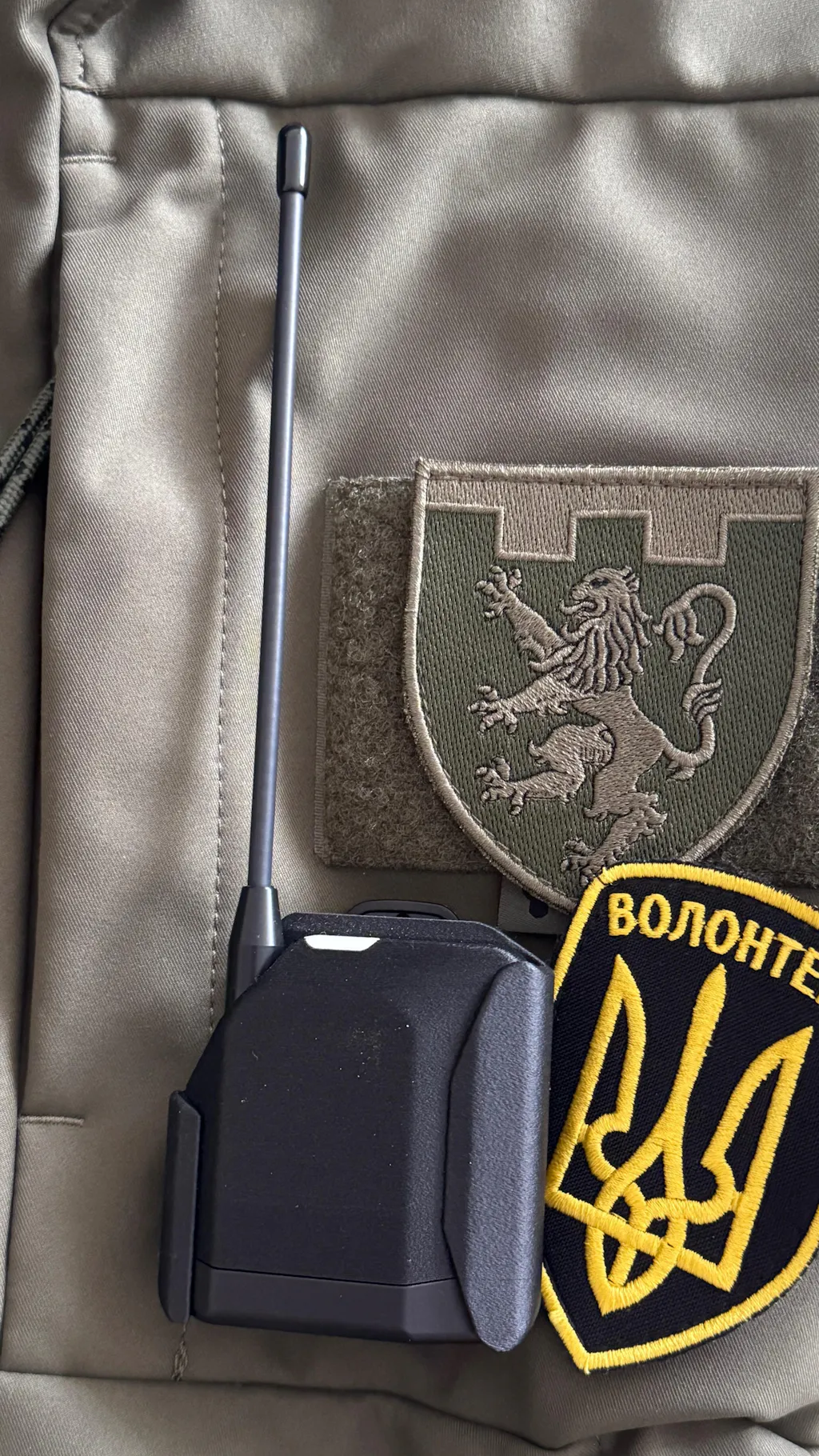

I like the design and build. I immediately put a stubby antenna and it’s pretty pocketable as long as antenna is safe. The builtin antenna as in original version would make it even more pocketable, so looking forward for it if any plans, but otherwise it’s good enough and it’s nice to have an option for better antenna. Printing around the loop hole have an imperfections but I can live with it

The range is great for a pocket node, even with a stubby antenna. Everyone prizes T1000E, but always skips the important part: transmission. See, this is communication device, not just for listening and this is where R1 Neo shines. I was able to transmit a message directly to my home 2.5 kilometres away through the urban area with both nodes being placed in hands. Which is an absolutely fantastic transmission result in my opinion.

The battery life also excels. I configured GPS to read every five minutes and transmit position if I move, which is good enough and still get almost two days. Three days is achievable with lower poll rate.

Weather proofing is a very welcome addition for EDC node. Haven’t tested it too much yet though

The only serious flaw it have is BLE range. It’s very weak and really works reliably when it’s in a pocket not so far from the phone. Not great
