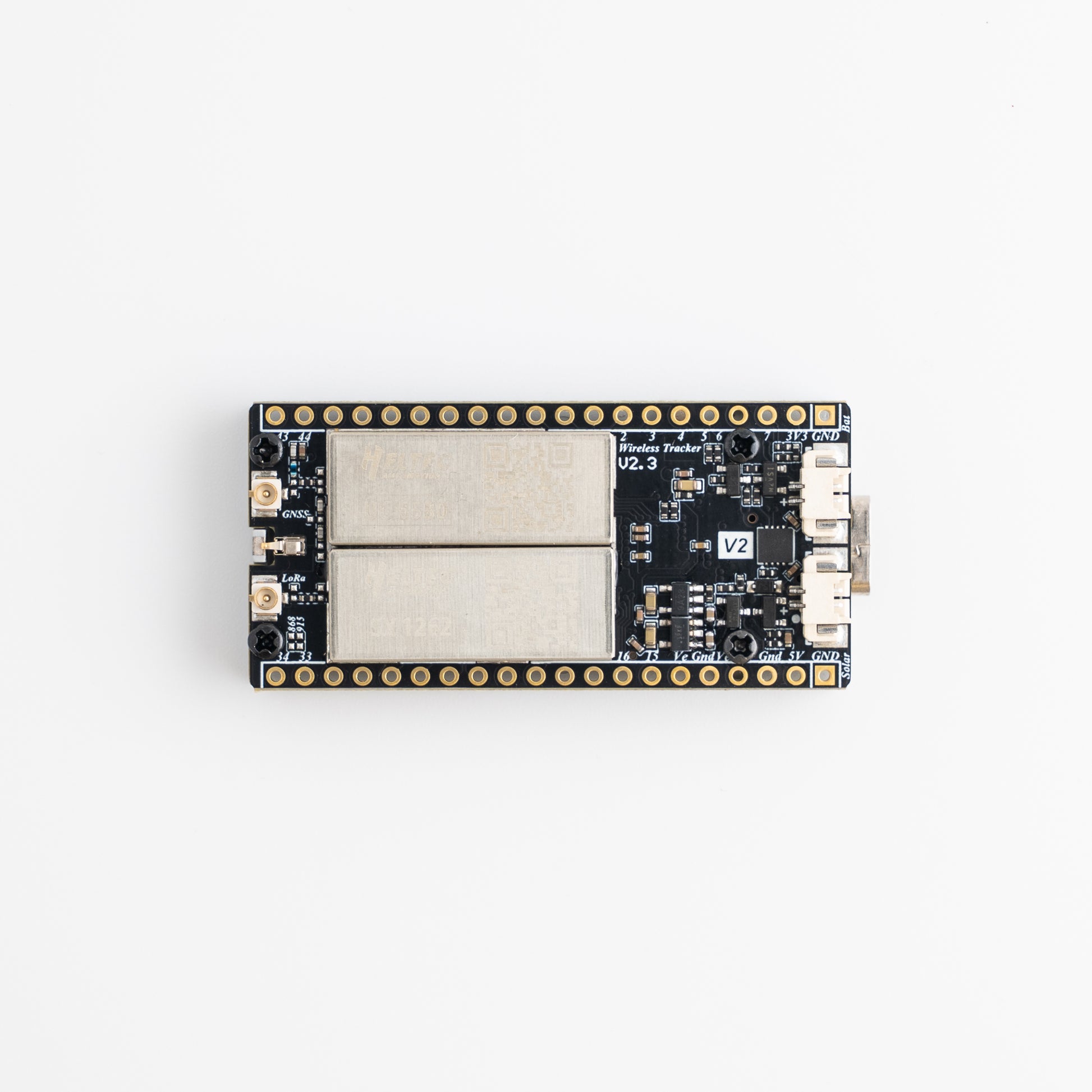

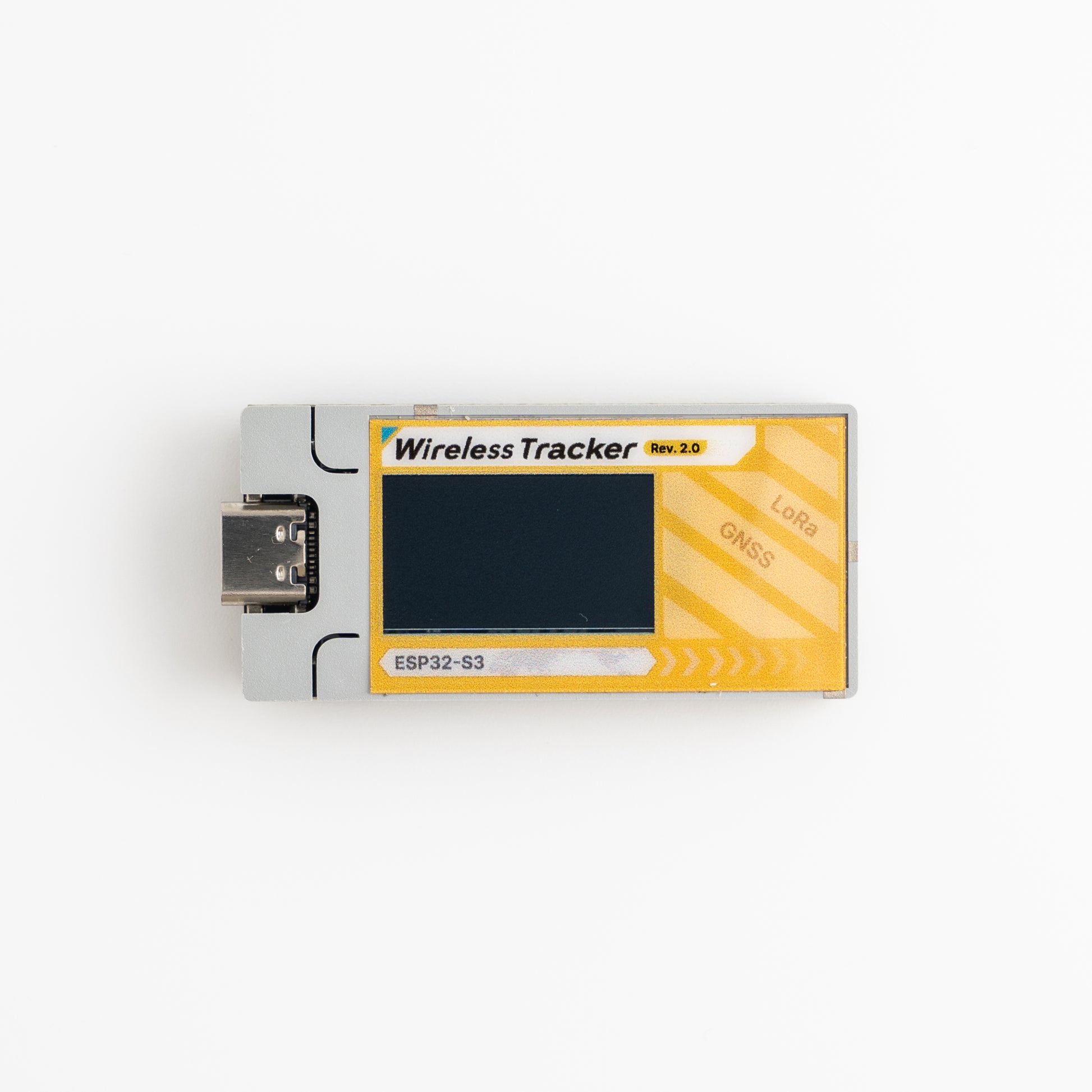

Heltec Wireless Tracker V2 – GPS Built-in

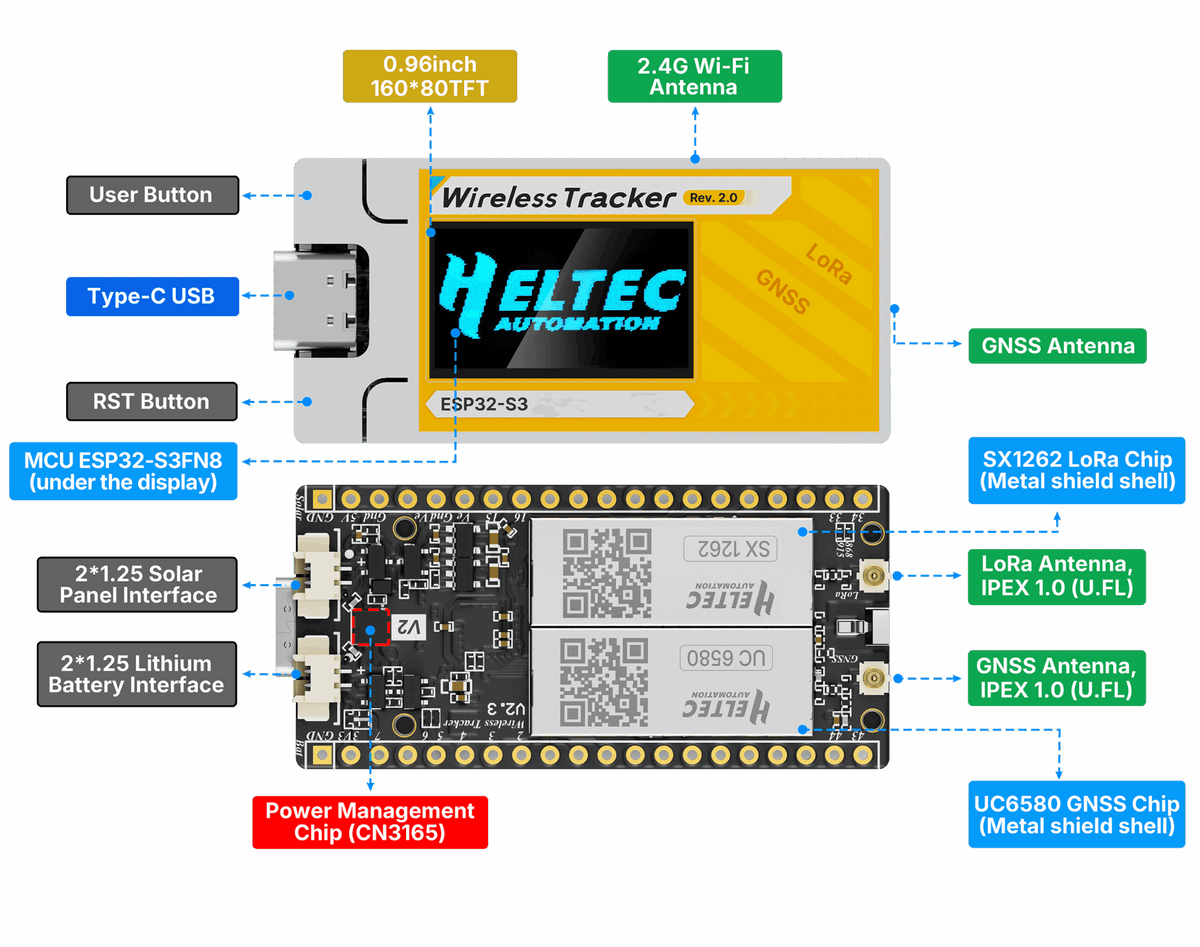

The Wireless Tracker V2 is built around the ESP32-S3FN8 and integrates the SX1262LoRa chip along with the UC6580 GNSS chip.

This new generation Wireless Tracker V2 incorporates a power amplifier, achieving a maximum transmission power of up to 28±1dBm. The LNA can be bypassed without affecting reception performance.

The Wireless Tracker V2 features LDS antennas for both GNSS and 2.4G, significantly reducing the device’s size. It is widely used in fields such as personnel positioning, asset tracking, LoRaWAN, Meshtastic, and MeshCore.

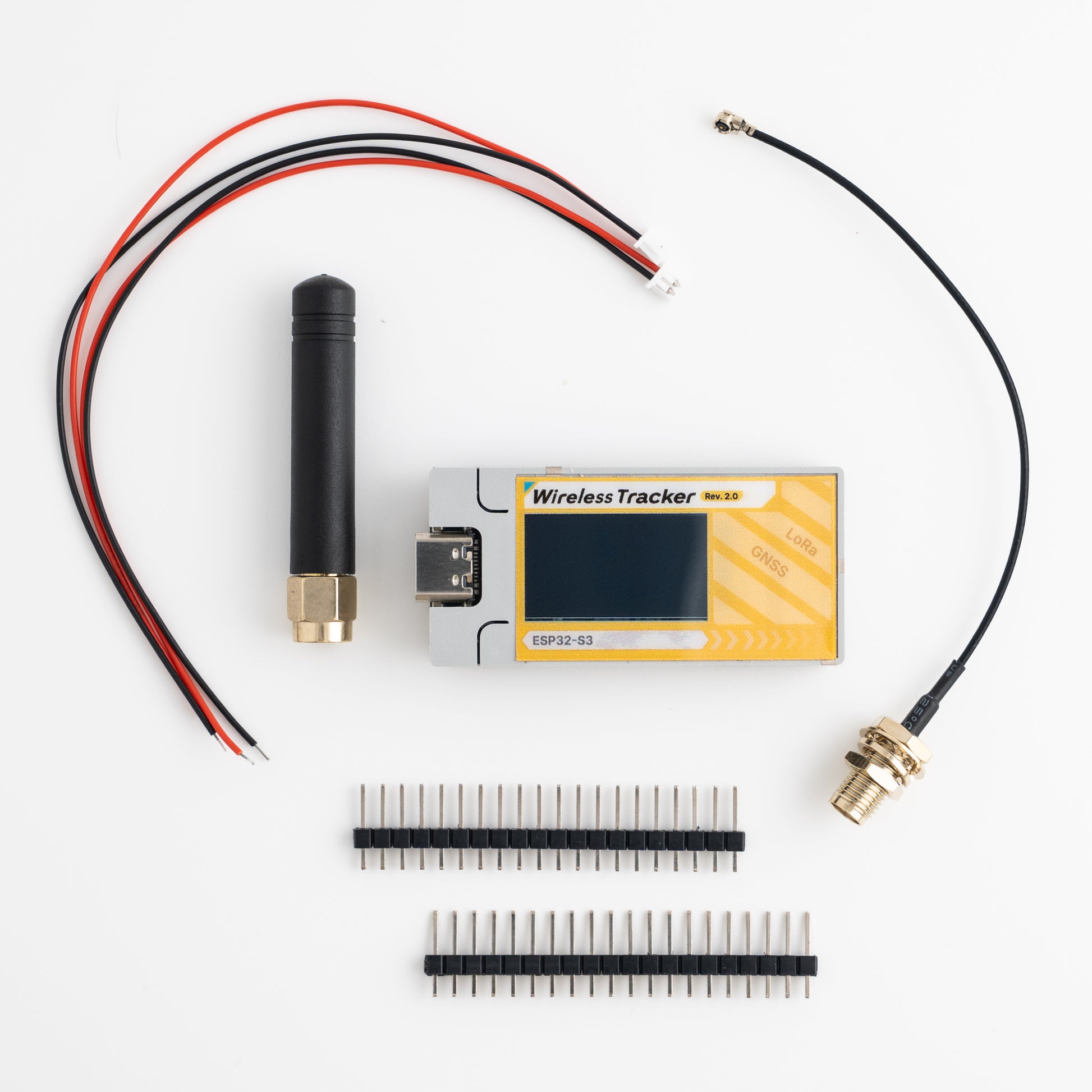

Product Includes

• Wireless Tracker V2
• Universal 868/915MHz Stubby Antenna
• Header Pins
• U.FL to SMA Pigtail Cable 10cm
• Pigtail cables for power and solar

Main Features

• Supports Wi-Fi/Bluetooth, LoRa, and GNSS communication.
• Integrates a power amplifier with a maximum output power of 28±1dBm, and the LNA can be bypassed.
• Supports multi-system joint positioning including GPS, GLONASS, BDS (BeiDou), Galileo, NAVIC, and QZSS.
• Integrated lithium battery management system (charge/discharge management, overcharge protection, battery power detection, automatic switching between USB and battery power).
• USB-C interface with comprehensive voltage regulation, ESD protection, short circuit protection, and RF shielding.
• Supports the Arduino development framework, providing LoRa/LoRaWAN examples.
• Compatible with Meshtastic and MeshCore.
