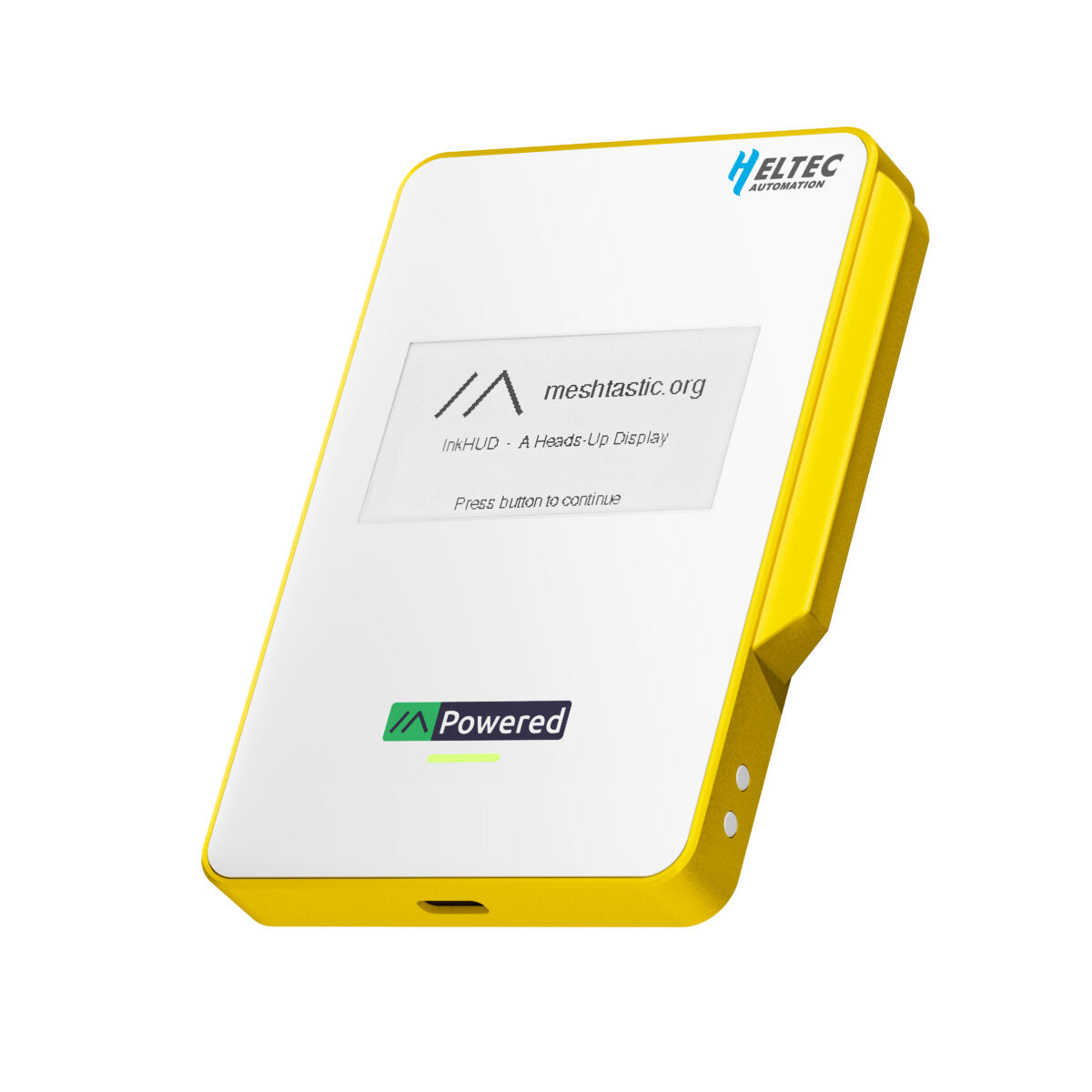

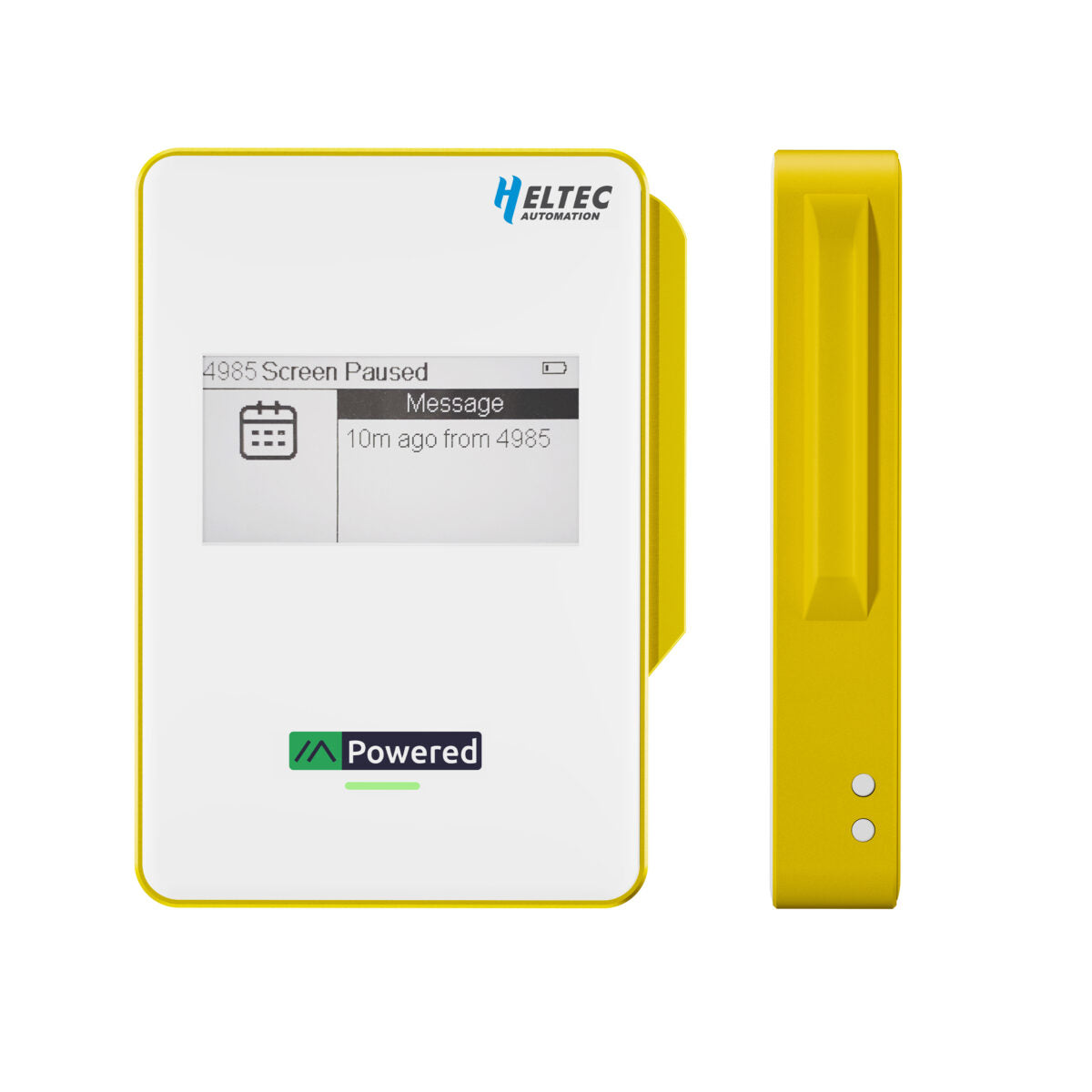

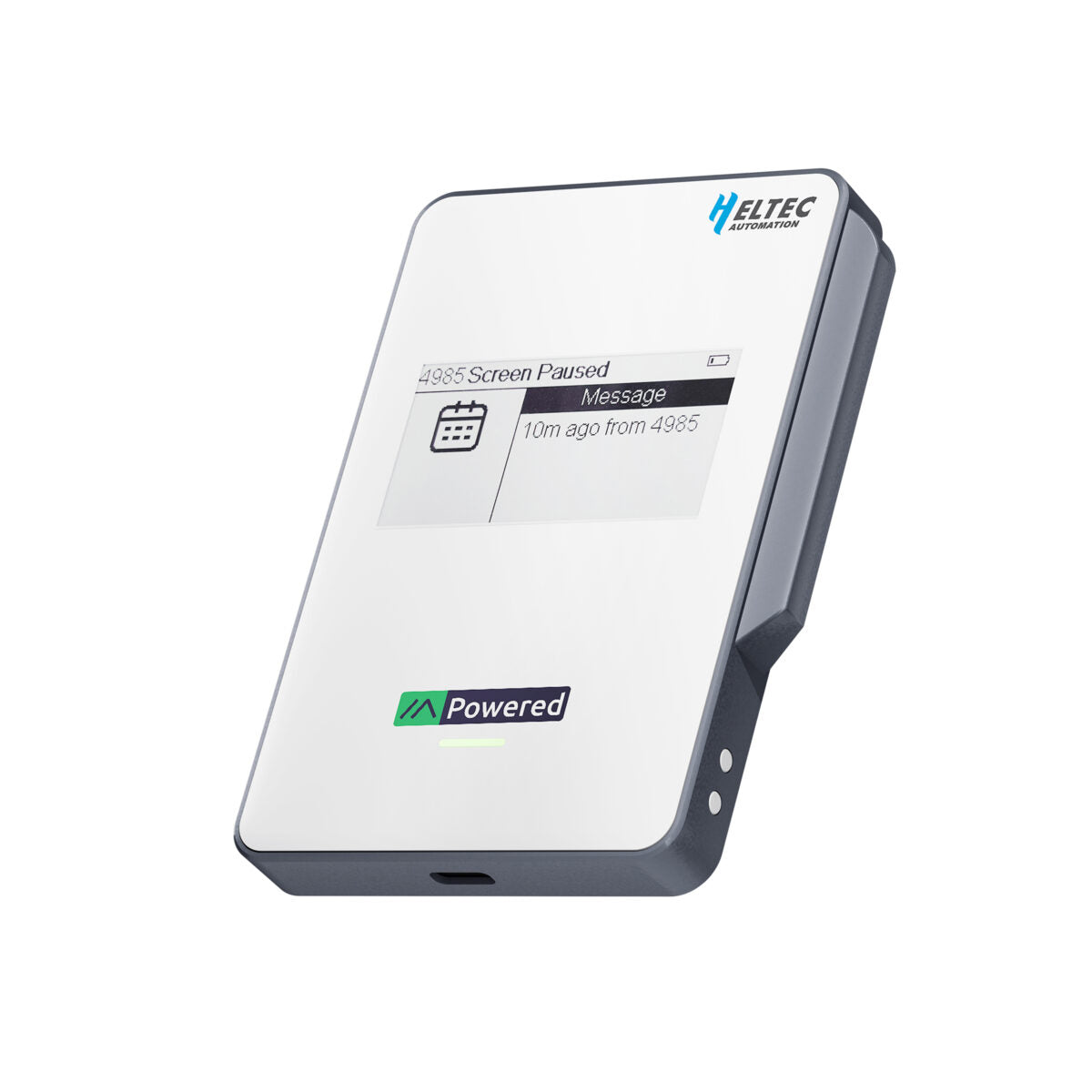

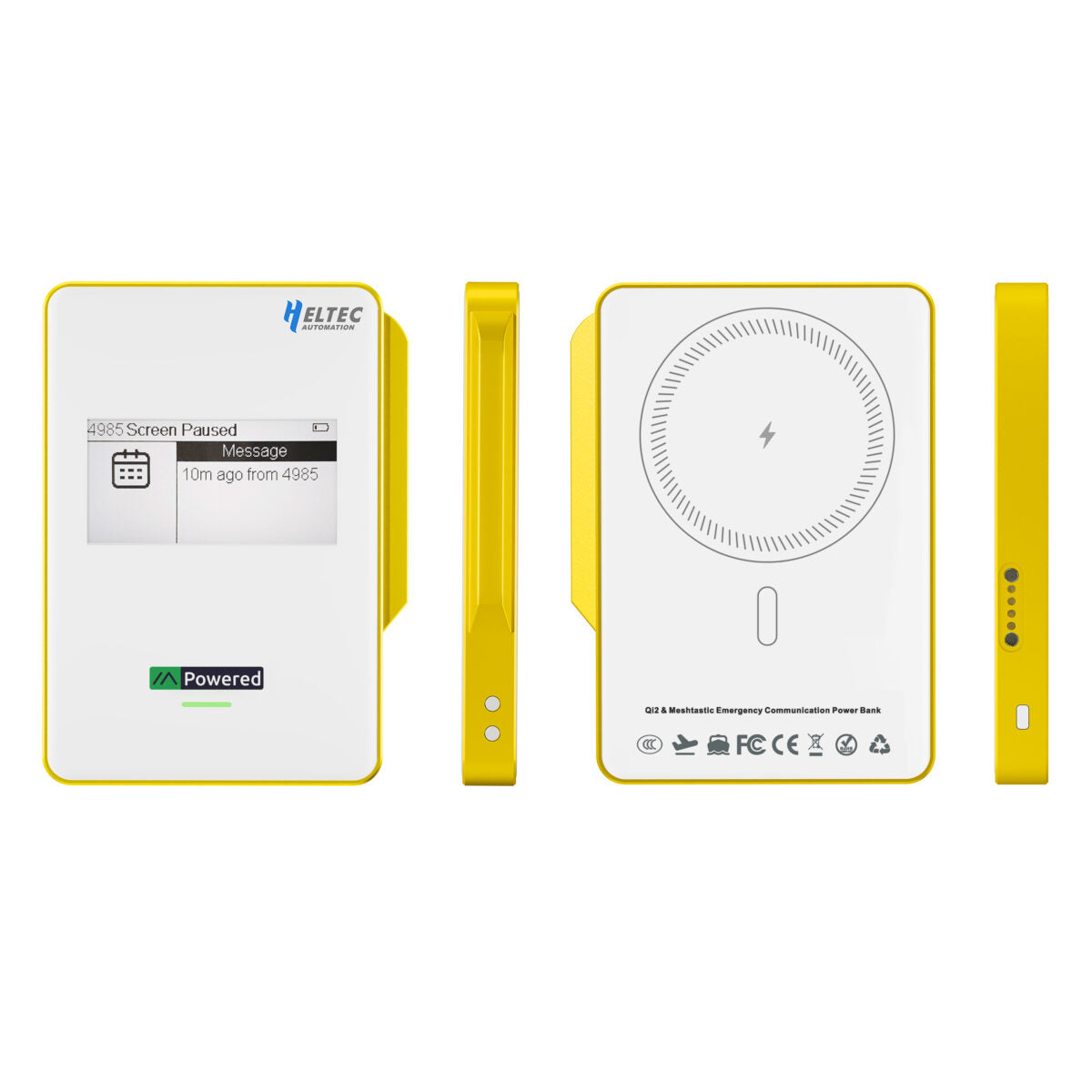

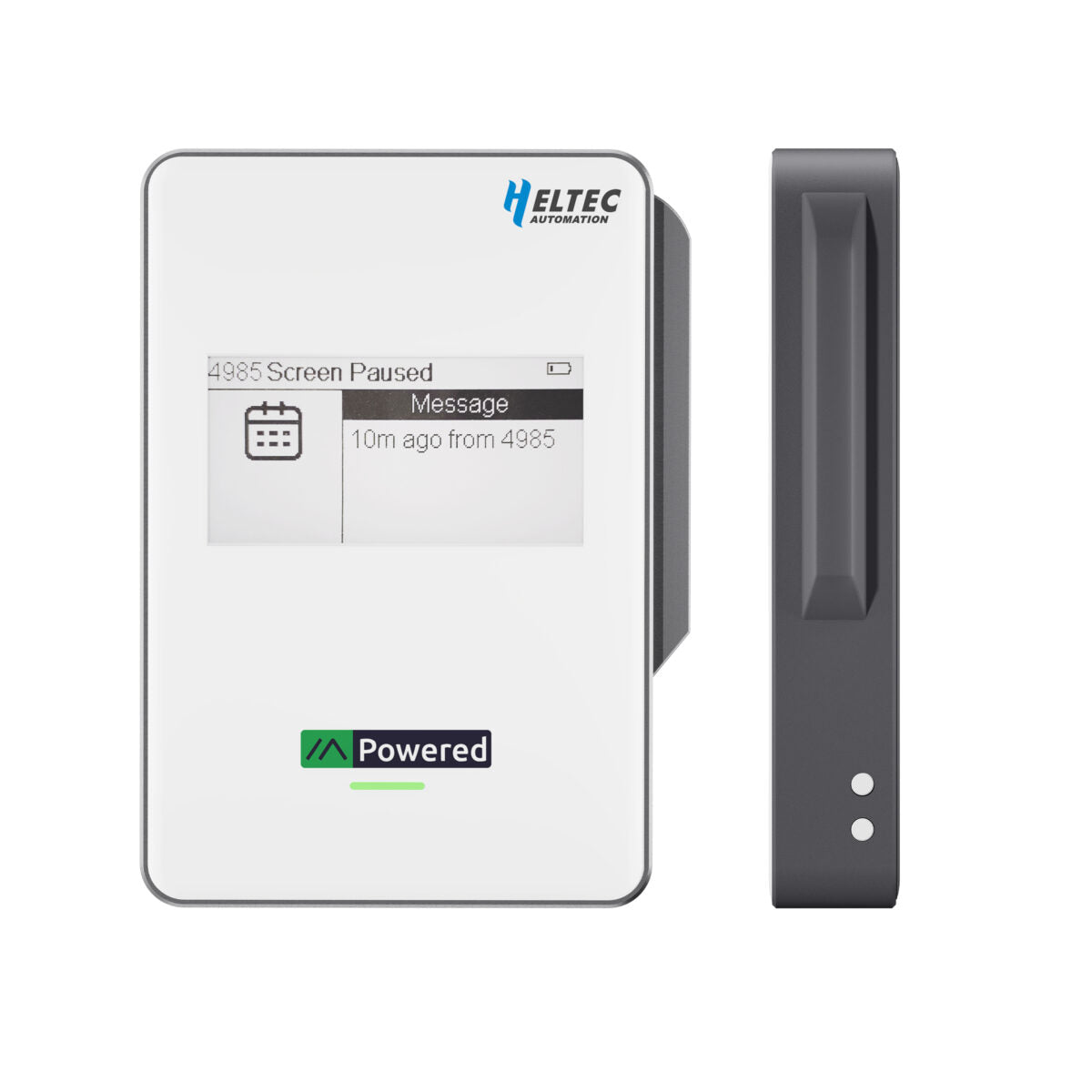

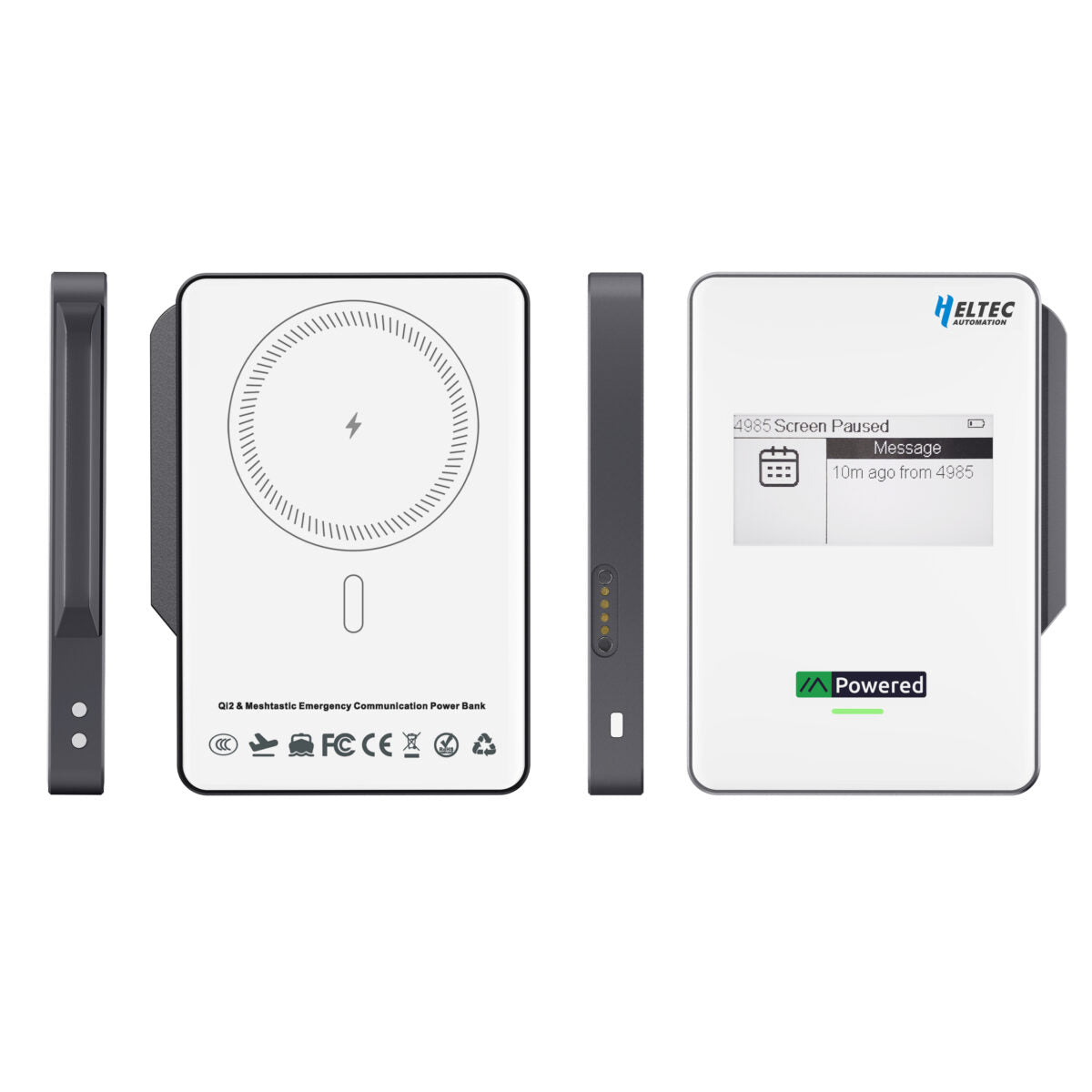

Heltec MeshPocket - Integrated Qi2 Power Bank

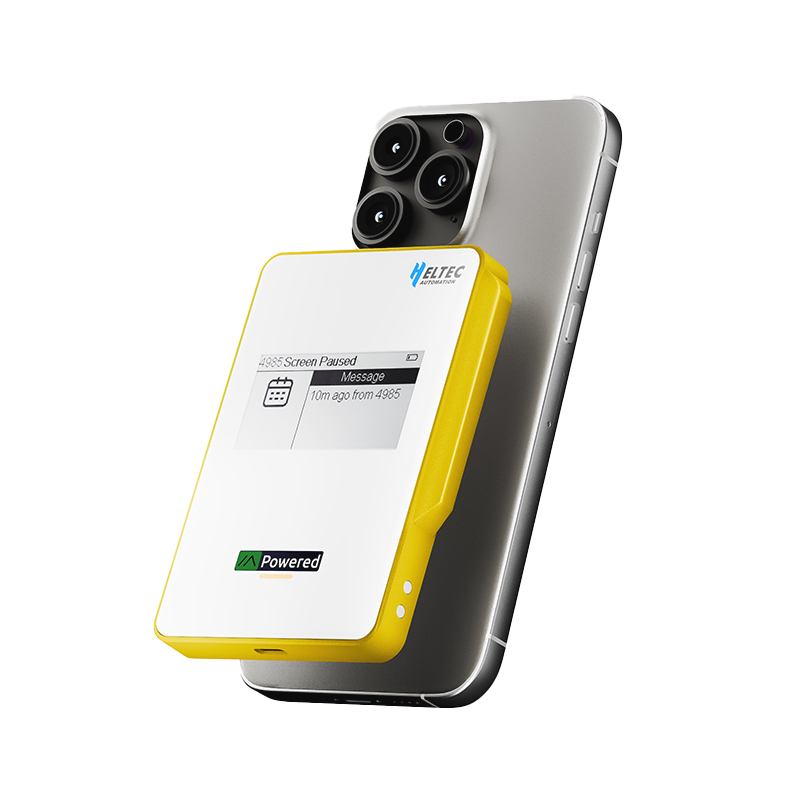

MeshPocket is not only a Qi2 magnetic power bank but also an intelligent device equipped with Bluetooth, LoRa remote communication, and e-ink display, making it the perfect companion for open source projects such as Meshtastic and providing a good solution for outdoor exploration and emergency communication.

MeshPocket is a device that brings Meshtastic into your daily life.

Features

• 902-928MHz band.
• 5000mAh/10000mAh battery capacity.
• Qi2 compatibility.
• Supports 5W, 7.5W, 10W, and 15W wireless charging.
• Supports 9V-2.22A and 5V-3A USB-C input and output protocols.
• Supports industry-standard protocols like PD, AFC, and Huawei adapter protocols.
• Allows simultaneous charging and discharging.
• Enables both wireless and wired discharging at the same time.
• Supports input over-voltage and under-voltage protection, output over-current and short circuit protection, battery under-voltage protection, NTC temperature protection, chip temperature protection, and charging timeout protection.
• Integrates the nRF52840(BLE) and SX1262(LoRa).
• Equipped with a 2.13-inch e-ink display, providing clear, power-efficient information updates even in direct sunlight.
• Offers full custom firmware support, allowing developers to adapt it for specialized applications.
• Seamlessly compatible with Meshtastic.

Specs

• E-Ink Display: 2.13"

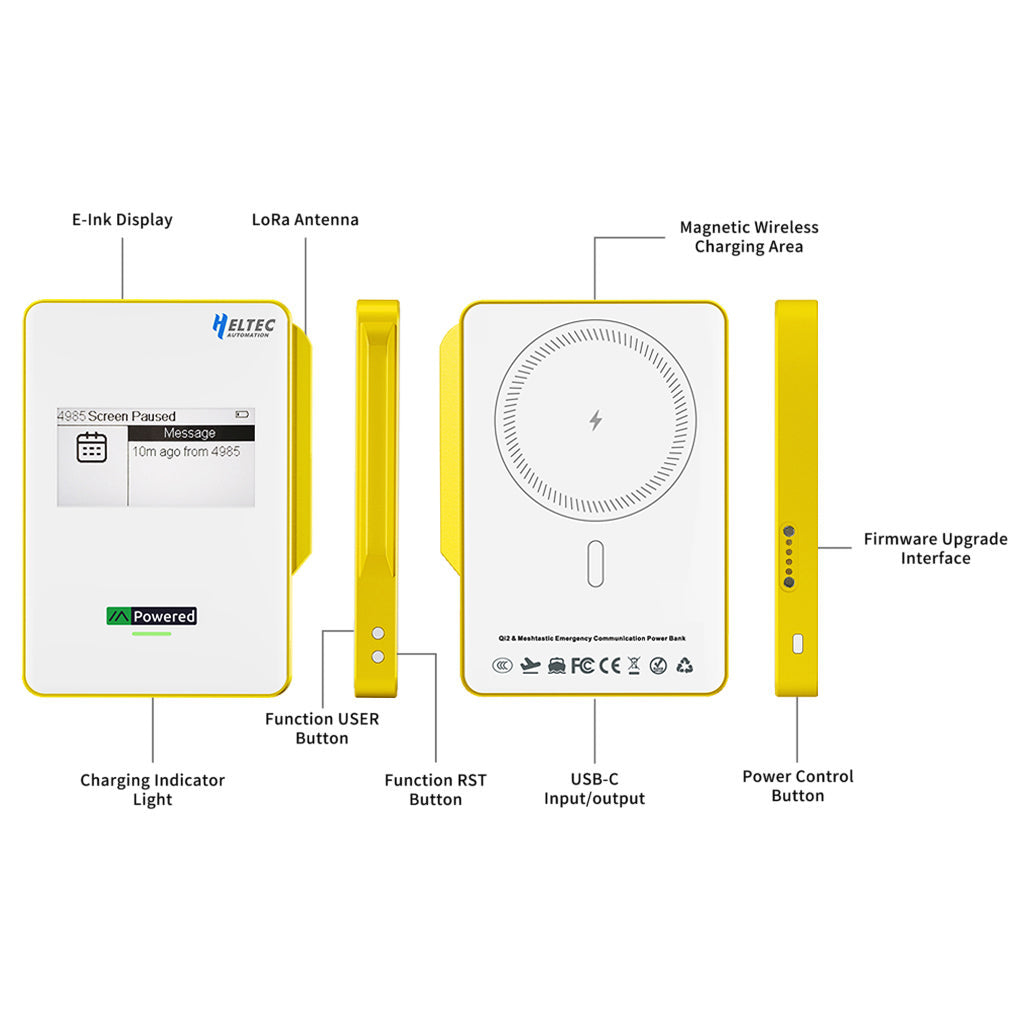

• Interface: USB-C, Qi2 Wireless Charging, Magnetic Data Port
• Wireless Charging Rate: 5W, 7.5W, 10W, 15W

• Shell: ABS, Tempered Glass

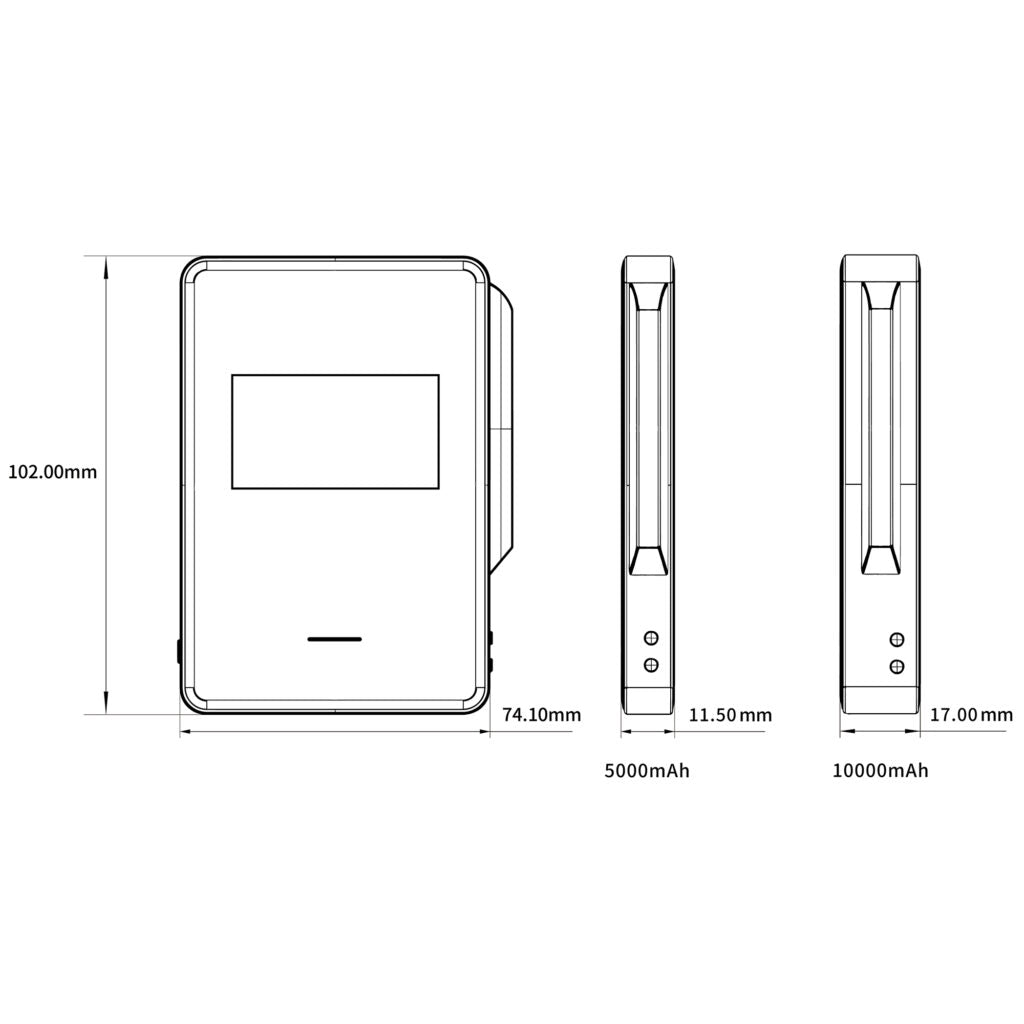

• Dimensions: 102mm x 74.1mm x [11.5mm / 17mm]
• Weight: 140g / 220g
• Operating Temperature: 0°C to 45°C

Includes

• MeshPocket Device

• USB-C to USB-C Cable

• USB-A to Magnetic Data Cable
• User Manual
• 3M Magnet Sticker (attach to phone)
• Soft Carry Case
