Elecrow ThinkNode M6 Outdoor Solar Power

Name: Elecrow ThinkNode M6 Outdoor Solar Power
Brand: Elecrow
SKU: MM-ELTNM6
Price: 99.0 USD
Availability: InStock

$99.00 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

The ThinkNode M6 Outdoor Solar Power is a high-performance Meshtastic IoT device designed for harsh outdoor environments and industrial scenarios.

It features the nRFLR1262 LoRa transceiver module and the nRF52840 core processor, supporting Bluetooth and LoRa dual-mode connectivity to ensure stable signal coverage. Equipped with a 6W solar charger and two 18650 batteries, it offers all-weather operation. Its IP65 waterproof housing allows operation in extreme environments ranging from -20°C to 60°C. It offers flexible mounting options, including wall mounting, brackets, pole mounting, and U-shaped clamps.

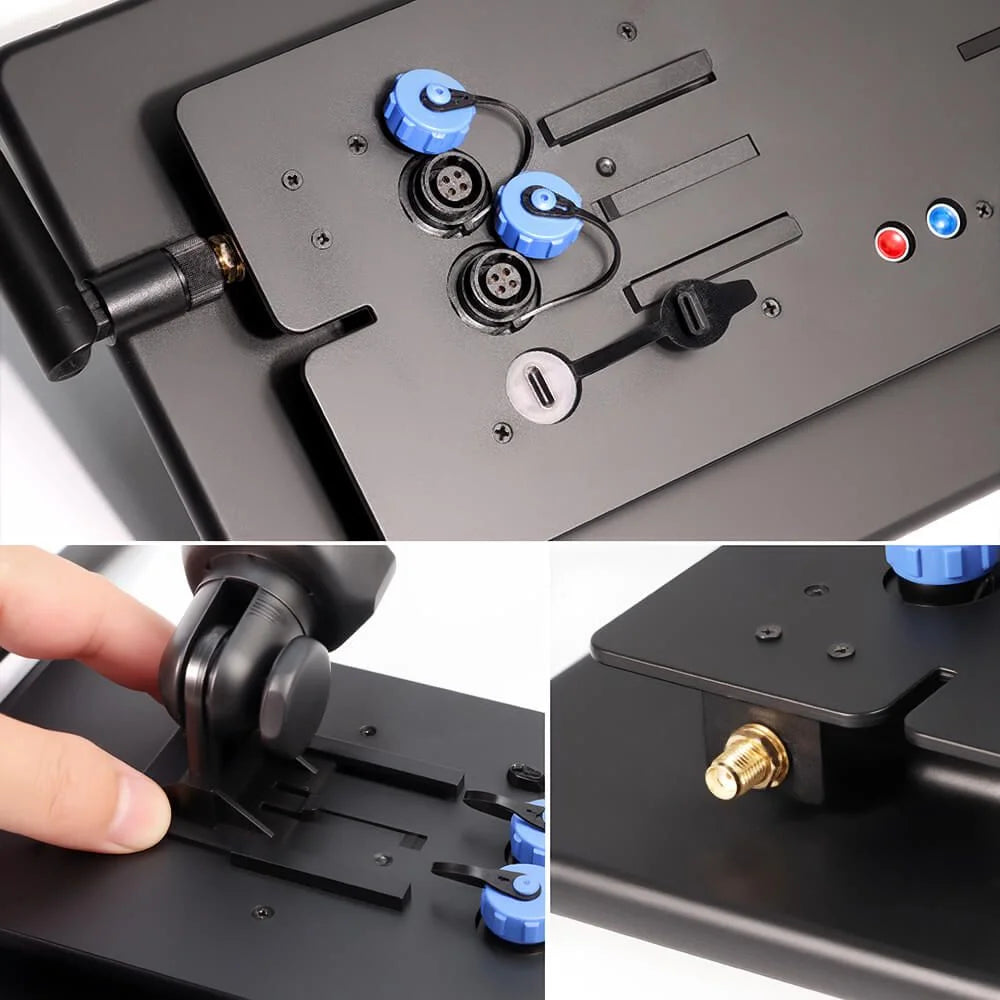

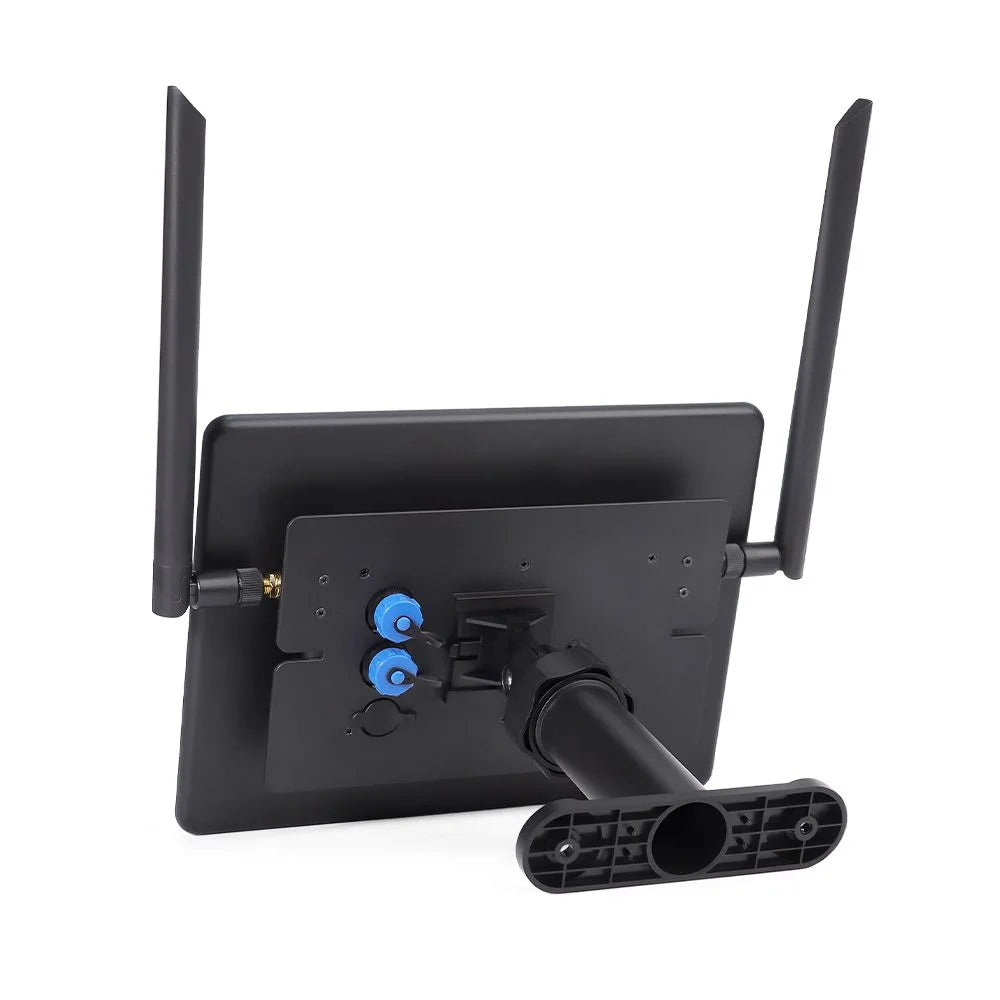

ThinkNode M6 comes with dual SP11 waterproof aviation connectors and supports long-range communication, precise positioning, and low-power operation. It can be used out-of-the-box, and rapid deployment, ideal for Meshtastic network expansion, remote monitoring, outdoor emergency response, and off-grid communications, especially in remote areas with limited outdoor network access.

Features

All-Weather Power System

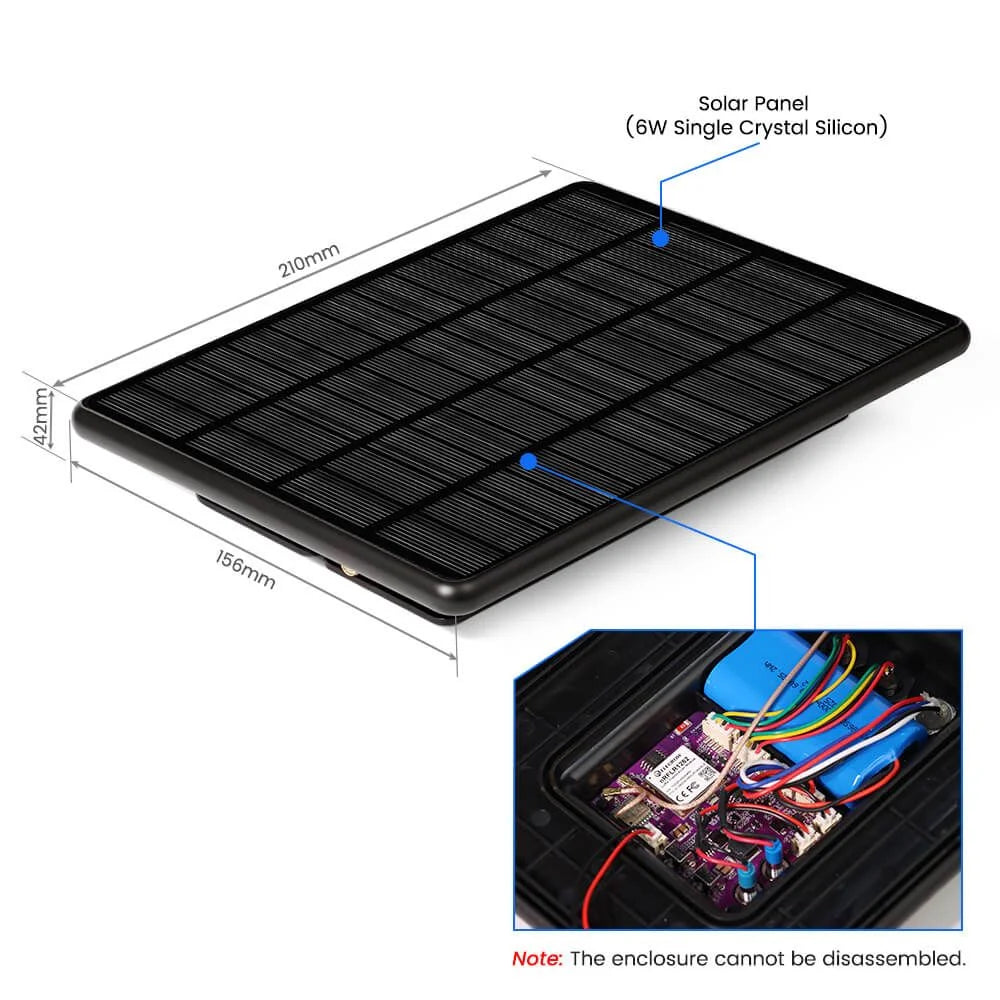

- Integrated 6W high-efficiency silicon solar panels and MPPT smart charging maximize energy harvesting efficiency.
- Combined with a large-capacity lithium battery and ultra-low power consumption, it maintains stable operation for extended periods.
High-Performance Hardware Configuration
- A built-in 64 MHz Arm Cortex-M4 processor with a DSP instruction set enables smooth execution of complex algorithms.
Dual-mode communication chip for wireless connectivity
- Bluetooth 5.4 (BLE) enables fast near-field configuration and low-power connectivity. The LoRa SX1262 chip supports the full 150-960 MHz frequency band.

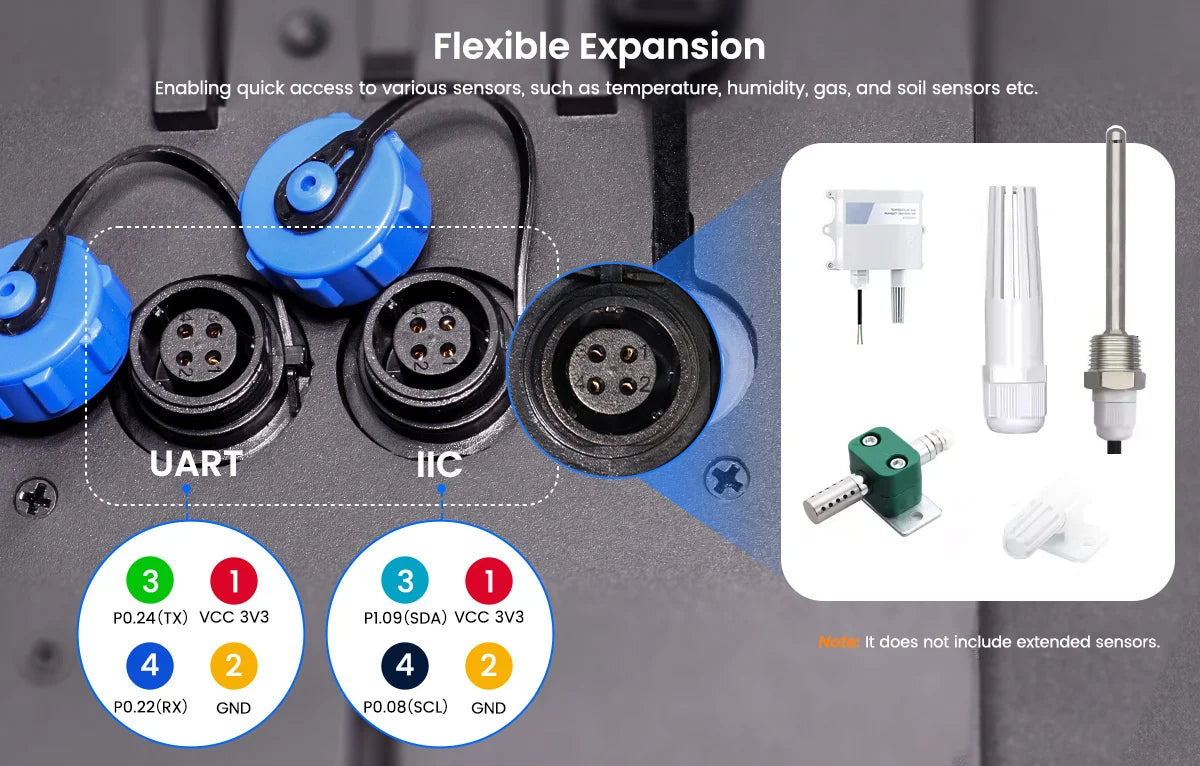

Flexible Expansion

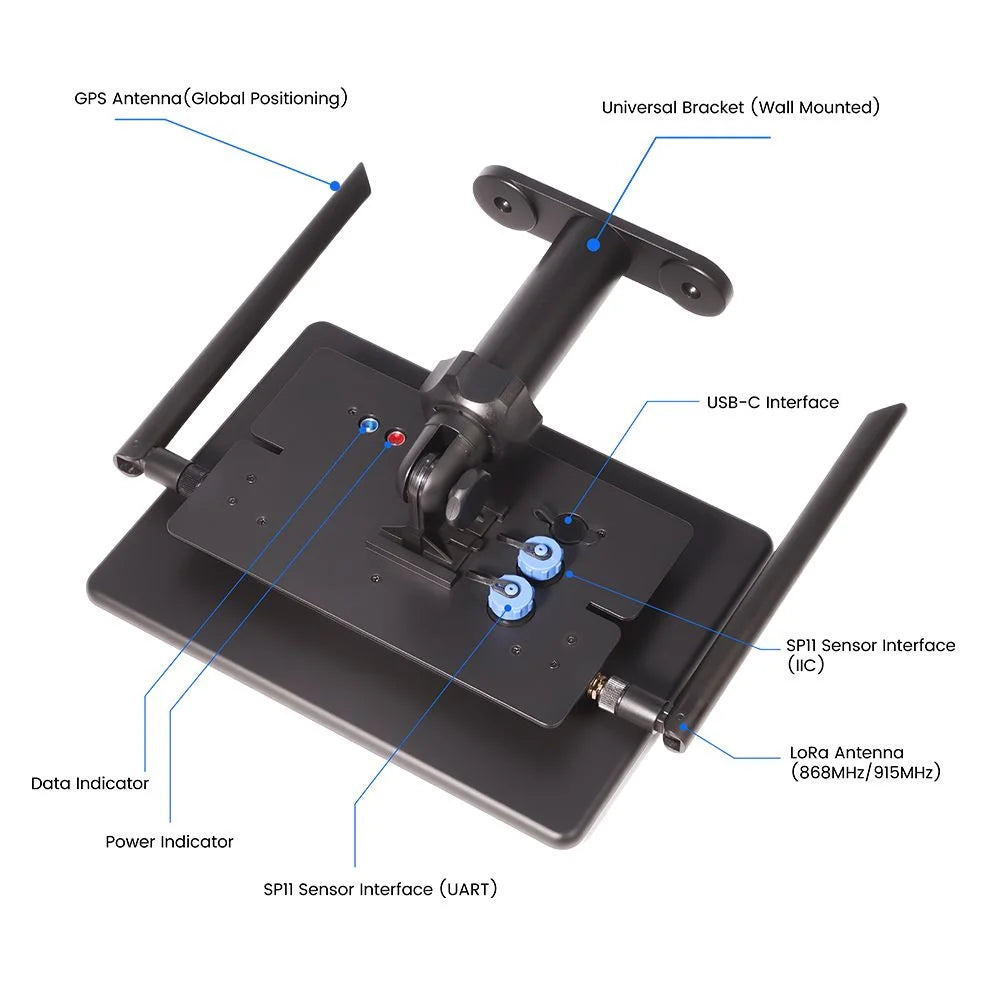

- Dual SP11 waterproof aviation interfaces support IIC/UART, enabling quick access to various sensors, such as temperature, humidity, gas, and soil sensors etc.
Local Data Processing
- Edge computing capabilities support local data pre-processing (such as filtering, compression, and protocol conversion), reducing cloud reliance and improving response speed and privacy.
Simple Deployment and Compatibility
- Pre-installed with Meshtastic firmware and support Meshtastic App, compatible with Meshtastic ad hoc networks, for out-of-the-box use.
High-Precision Positioning
- The L76K GPS module supports real-time, accurate positioning and location information sharing.

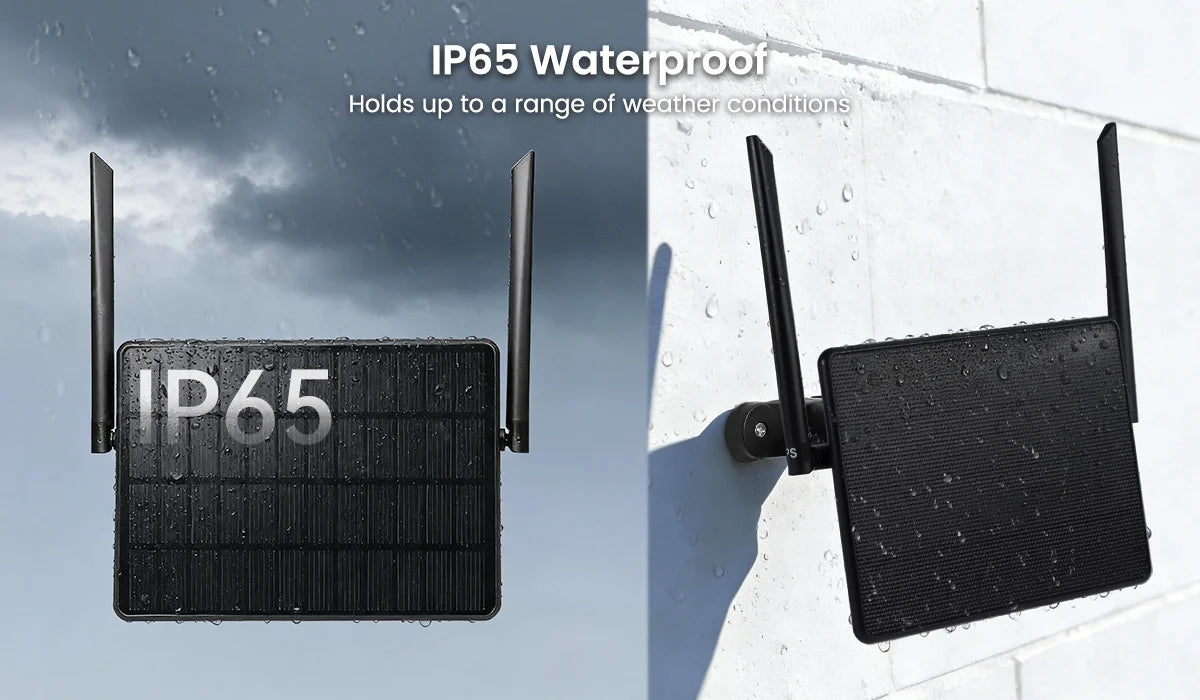

IP65 Protection
- The integrated sealing structure supports an IP65 protection level and can be used in environments ranging from -20°C to 60°C.
Multiple mounting options
- Supports wall mounting, bracket mounting, pole mounting, and U-shaped clamp mounting.
Multi-scenario application coverage
- It can be used in wide-area IoT applications( remote monitoring, environmental monitoring, and asset tracking), and also supports ad hoc networks, making it suitable for distributed deployment in areas without network coverage.
