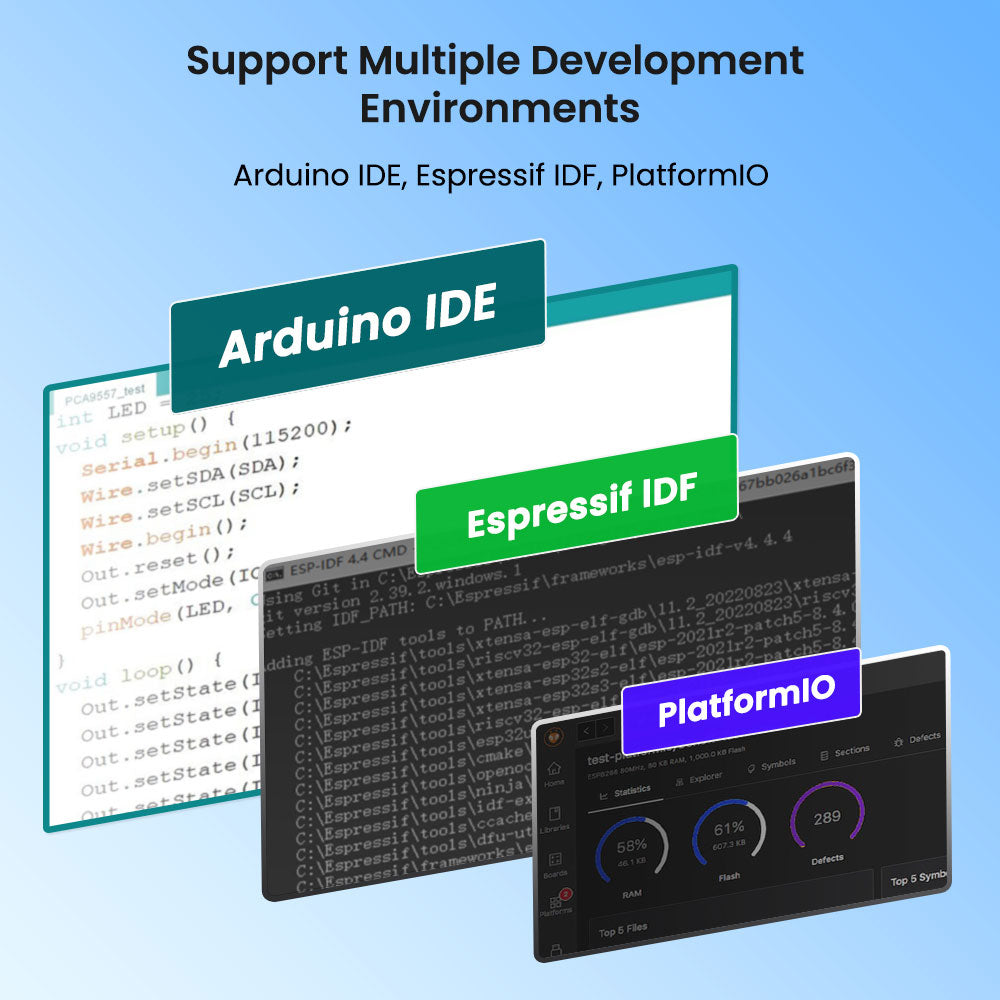

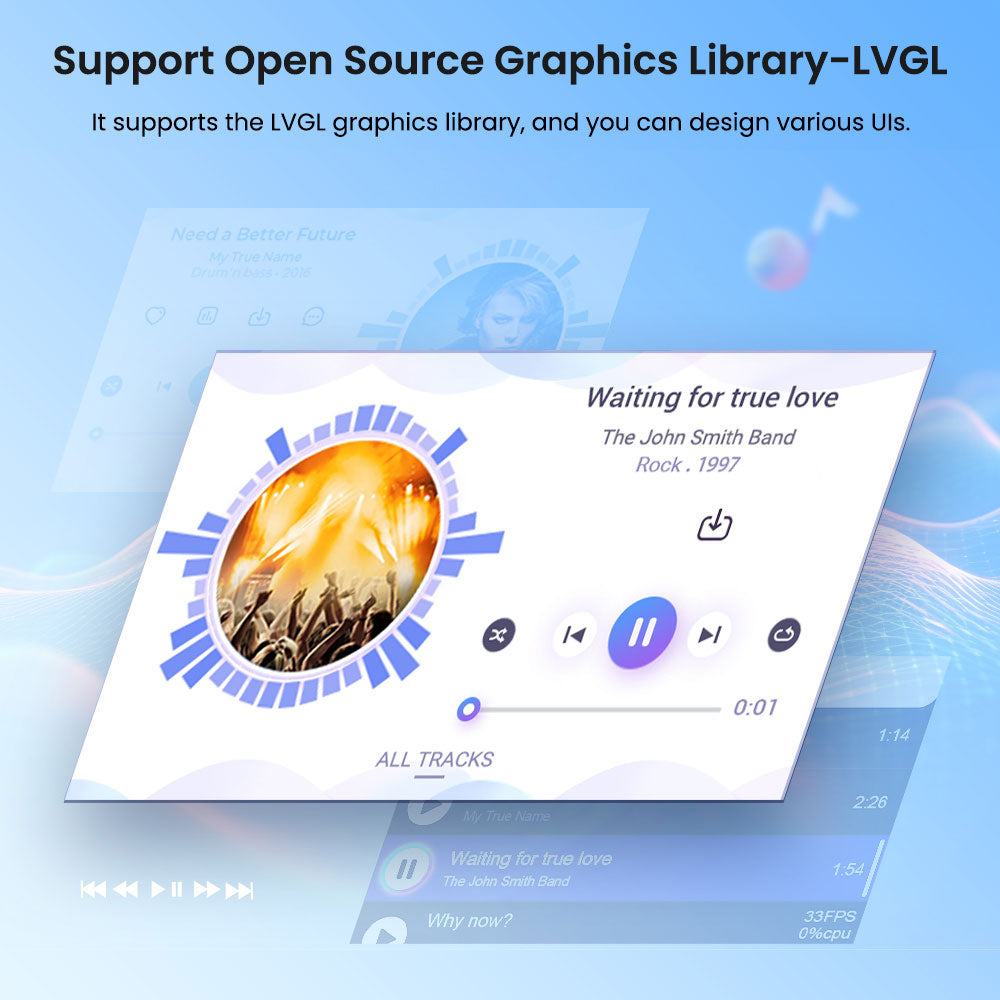

The CrowPanel Advance 3.5" is a powerful HMI touch display with a 480*320 resolution IPS screen. It uses the ESP32-S3 chip as the core processor. This chip is equipped with an Xtensa 32-bit LX7 dual-core processor with a main frequency of up to 240MHz, equipped with 512KB SRAM, 8M PSRAM and 16M Flash, providing the device with powerful data processing capabilities. The integrated 2.4GHz Wi-Fi and BLE functions, combined with the built-in RF antenna, ensure the stability and reliability of the wireless connection. Also, the diverse interfaces and low power make this 3.5-inch screen ideal for HMI applications that need strong wireless connectivity. It supports the Arduino IDE, Espressif IDF, and PlatformIO. It is compatible with the LVGL graphics library and supports C++.

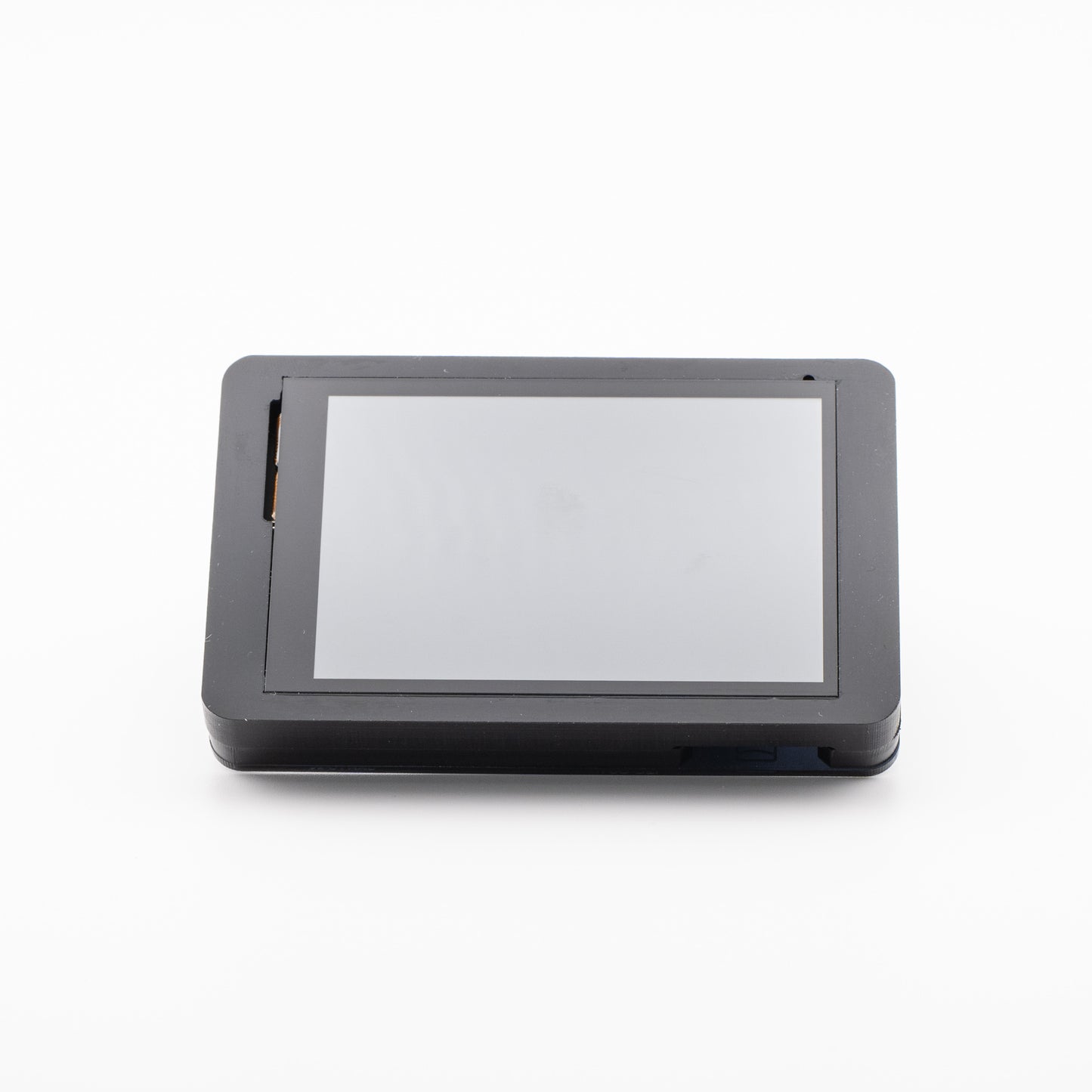

This 3.5-inch screen uses an IPS panel, and the 178°wide viewing angle allows you to enjoy a vivid visual experience at any angle. Capacitive touch technology enables smooth, responsive interactions.
A notable feature of the CrowPanel Advance 3.5-inch display is its integrated AI function. Users can interact by using the microphone and speaker. This includes voice recognition and speech synthesis. They can have seamless conversations with smart assistants to get information. With the SX1262 wireless module, the Advance 3.5" HMI display can support access to the Meshtastic network.
This display integrates the latest Meshtastic technology, optimized port layout, excellent display touch performance, and larger storage space. These improvements enhance the flexibility and reliability of connectivity, provide users with more diverse choices and wider application possibilities, and meet the stringent requirements of modern intelligent systems for remote monitoring and control. This 3.5" display also supports tactility.

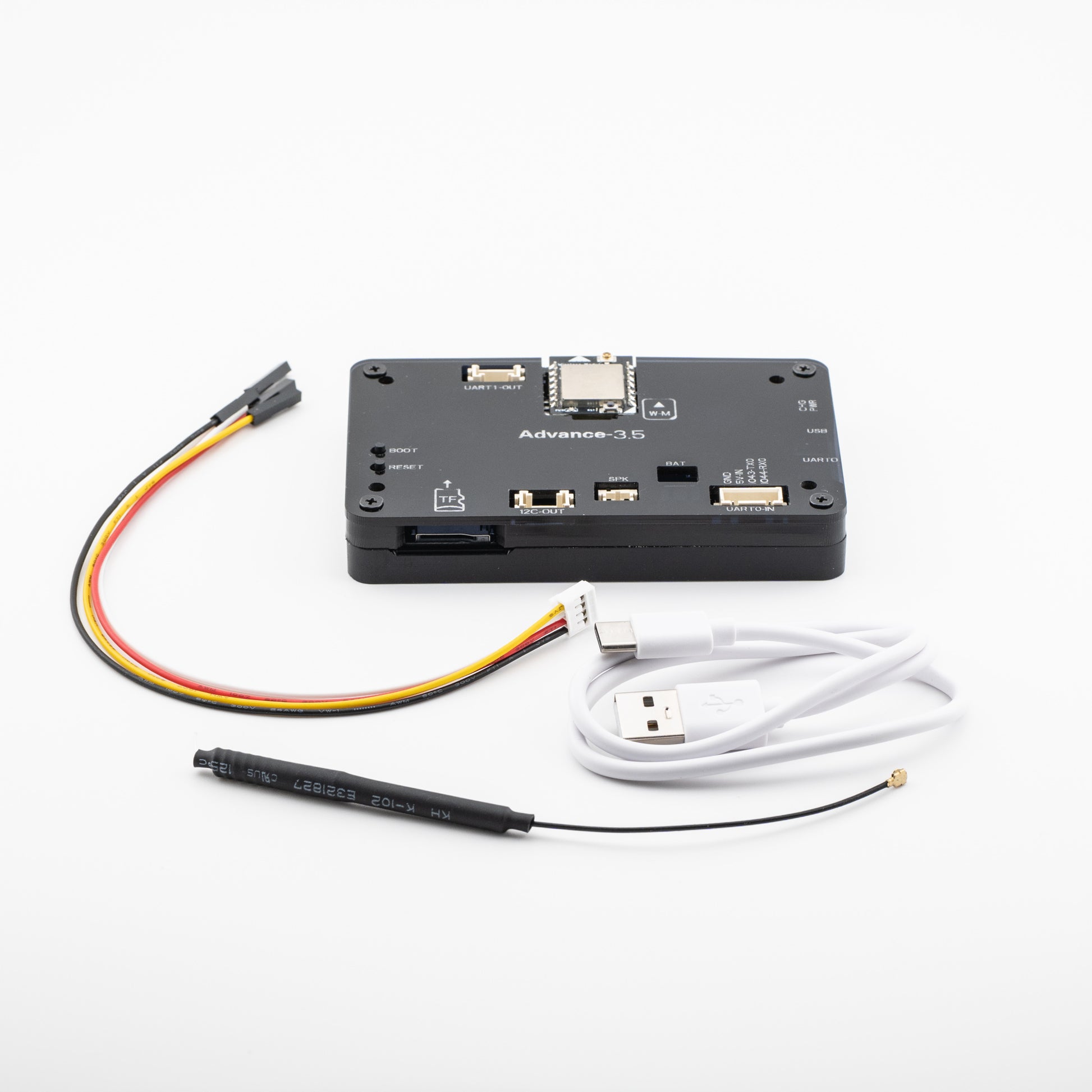

Product Includes

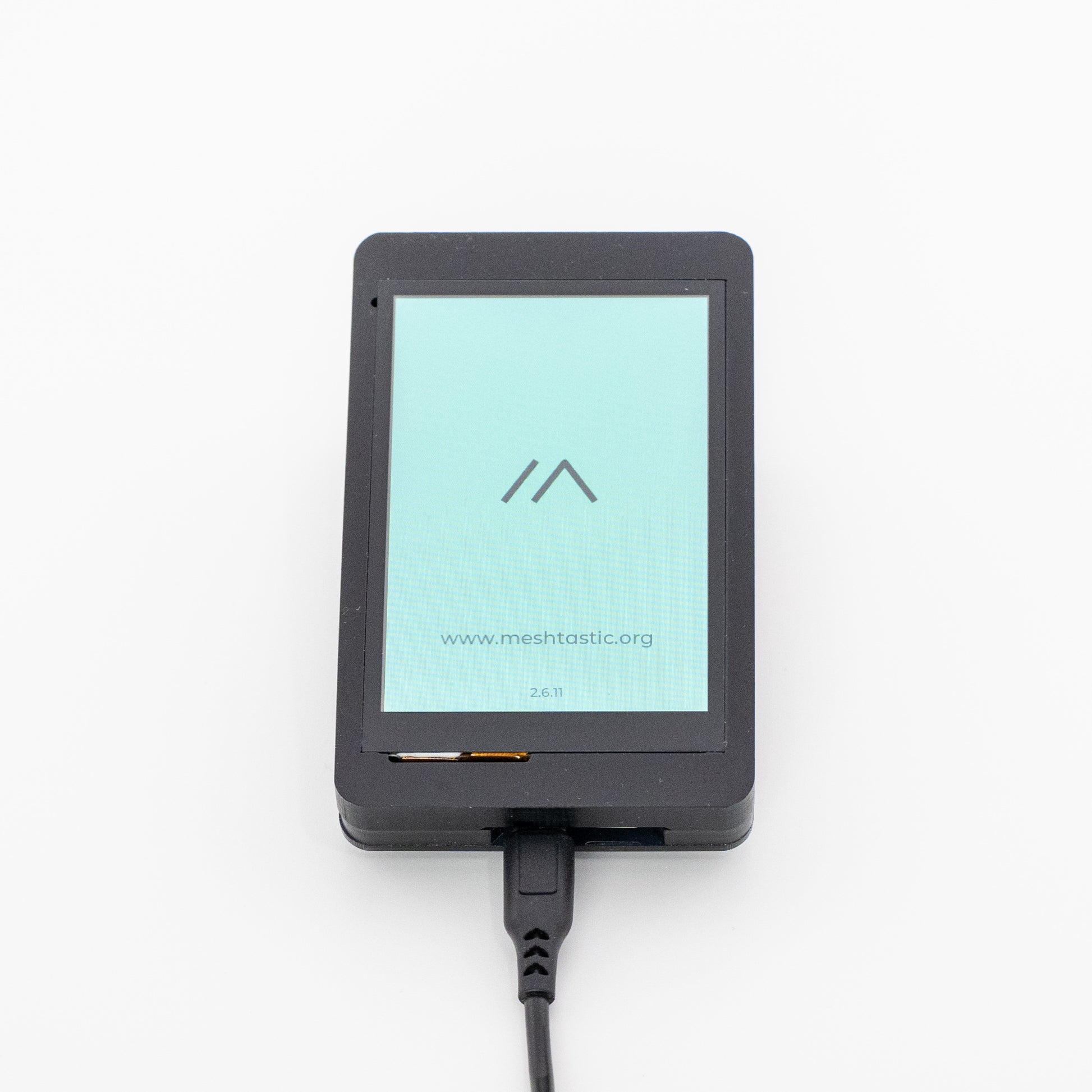

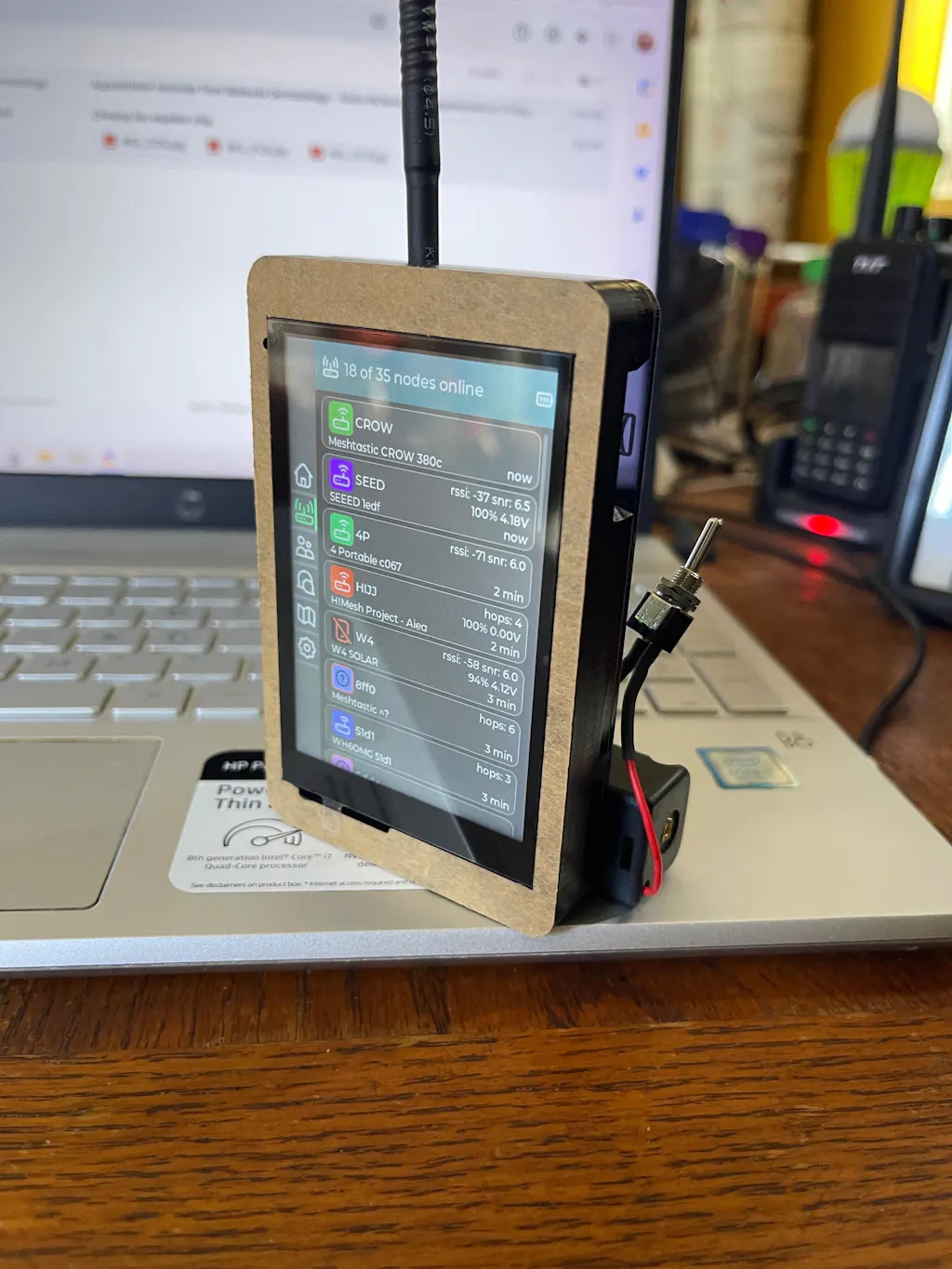

CrowPanel Advance 3.5" Board flashed with Meshtastic running MUI

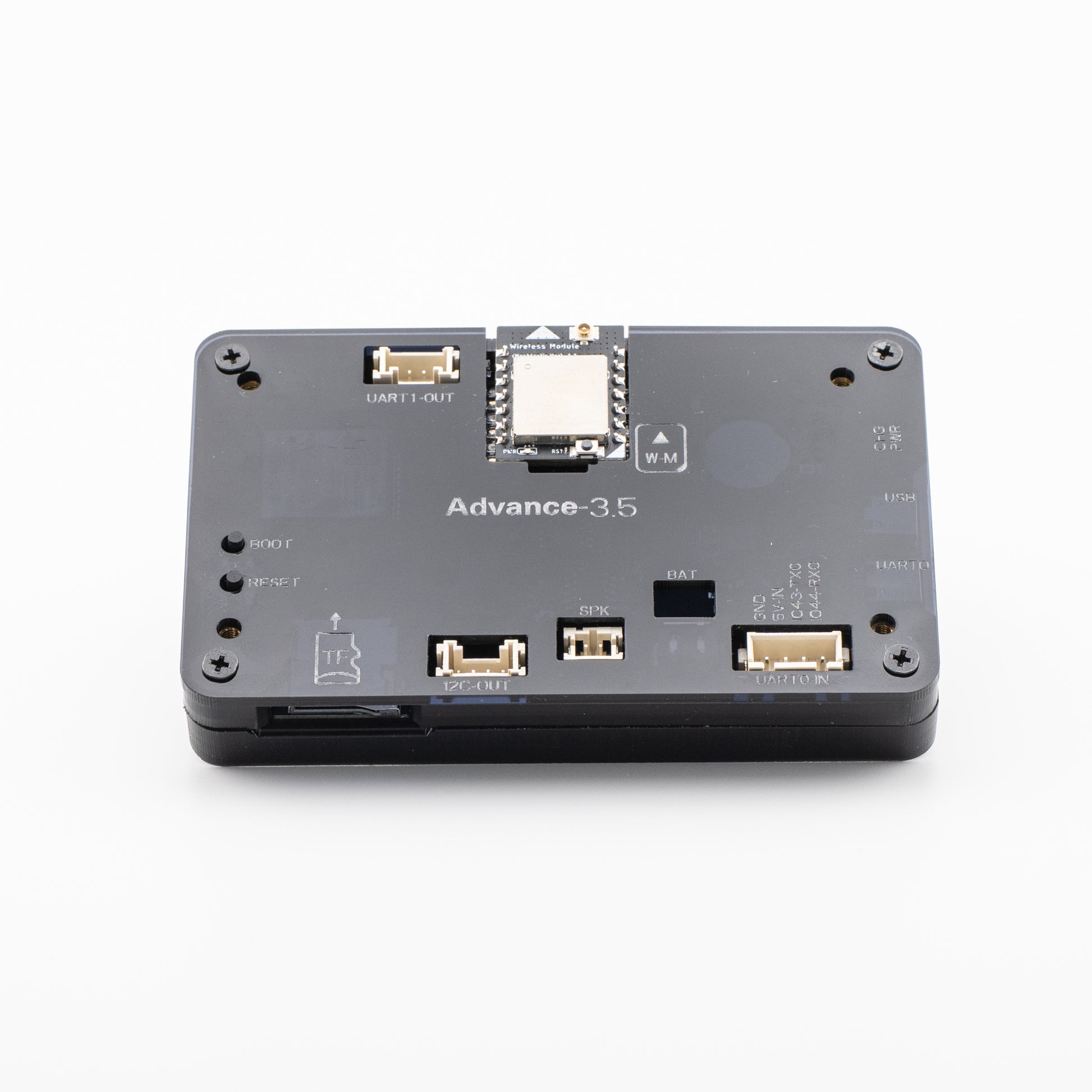

Acrylic Case Pre-Assembled
U.FL LoRa 915MHz Antenna
Crowtail/Grove to 4Pin DuPont Cable
USB-A to USB-C Cable
Main Features

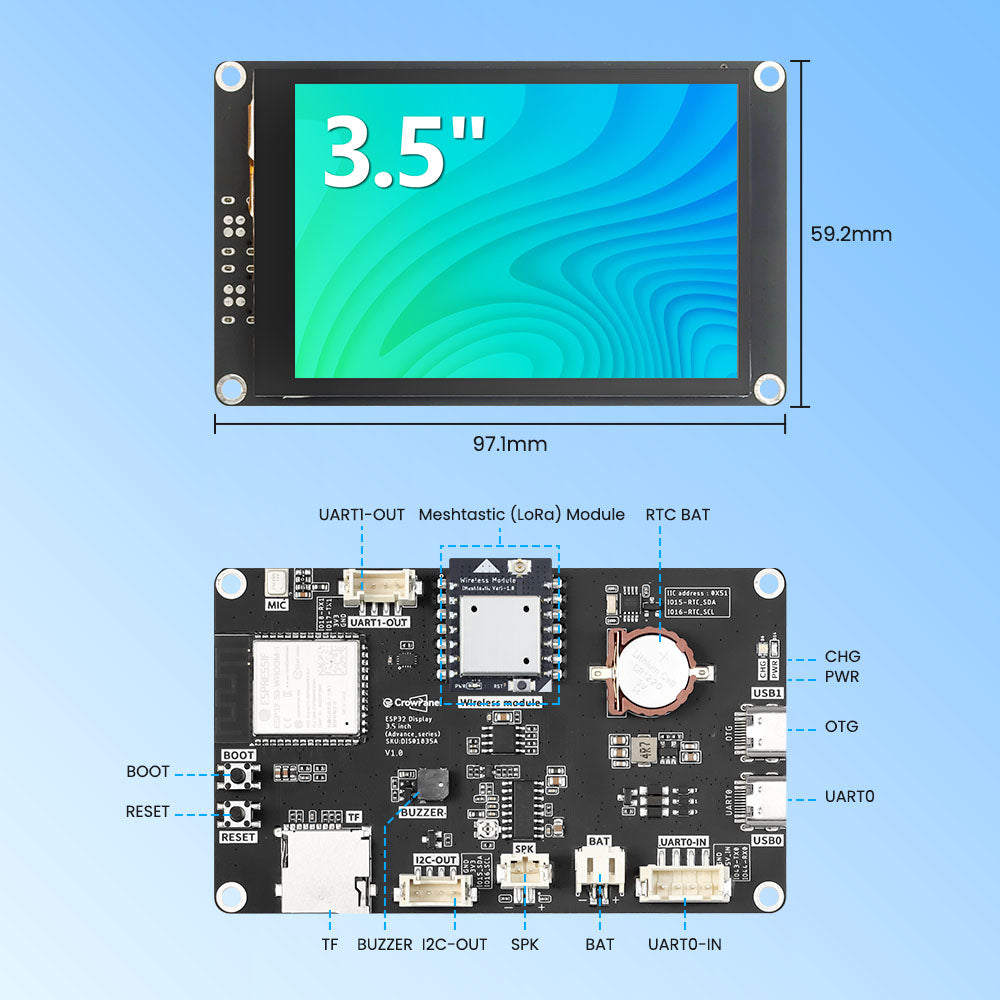

Equipped with ESP32-S3-WROOM-1 module as the core controller, it provides more excellent performance;
Main frequency up to 240MHz, equipped with 512KB SRAM, 8M PSRAM and 16M Flash;
Intelligent AI function, equipped with speaker port and high-performance microphone, users can have seamless conversations with smart assistants through voice command interaction, voice recognition and speech synthesis;

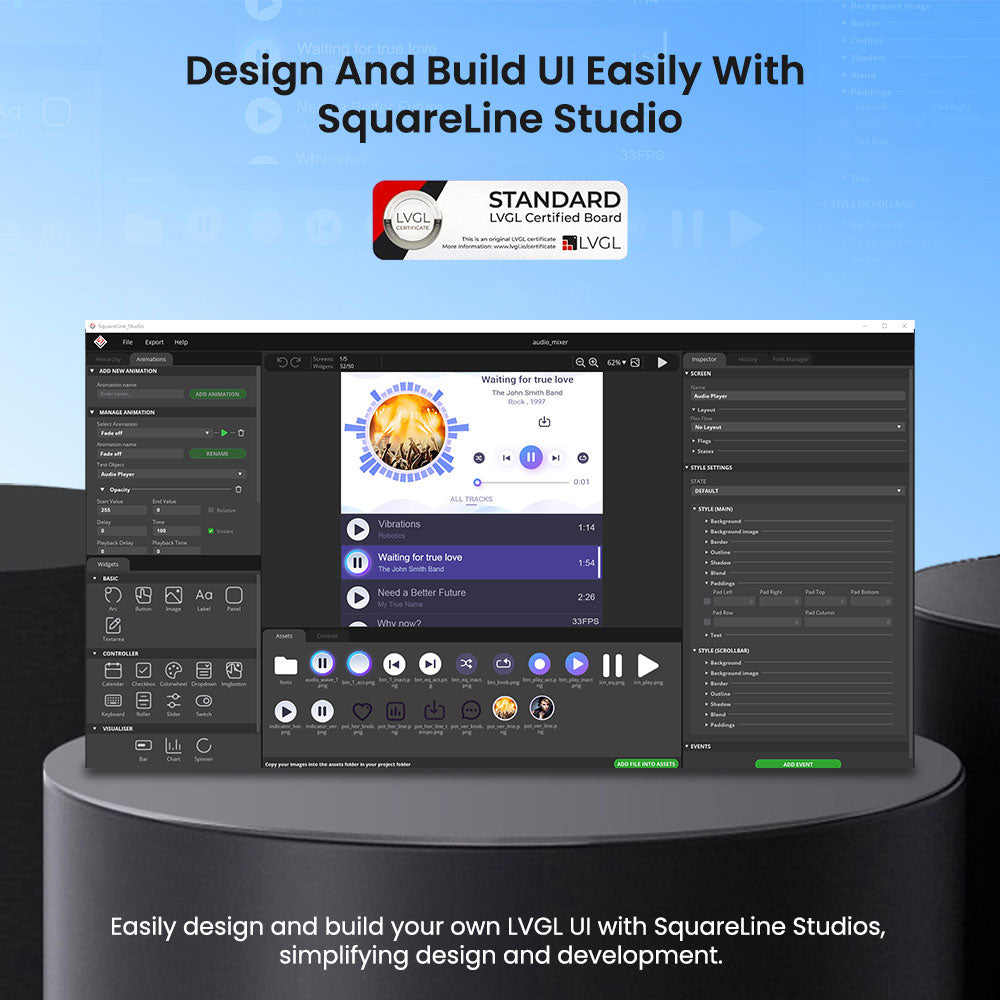

Built-in LVGL demonstration interface and Arduino examples, plug and play;

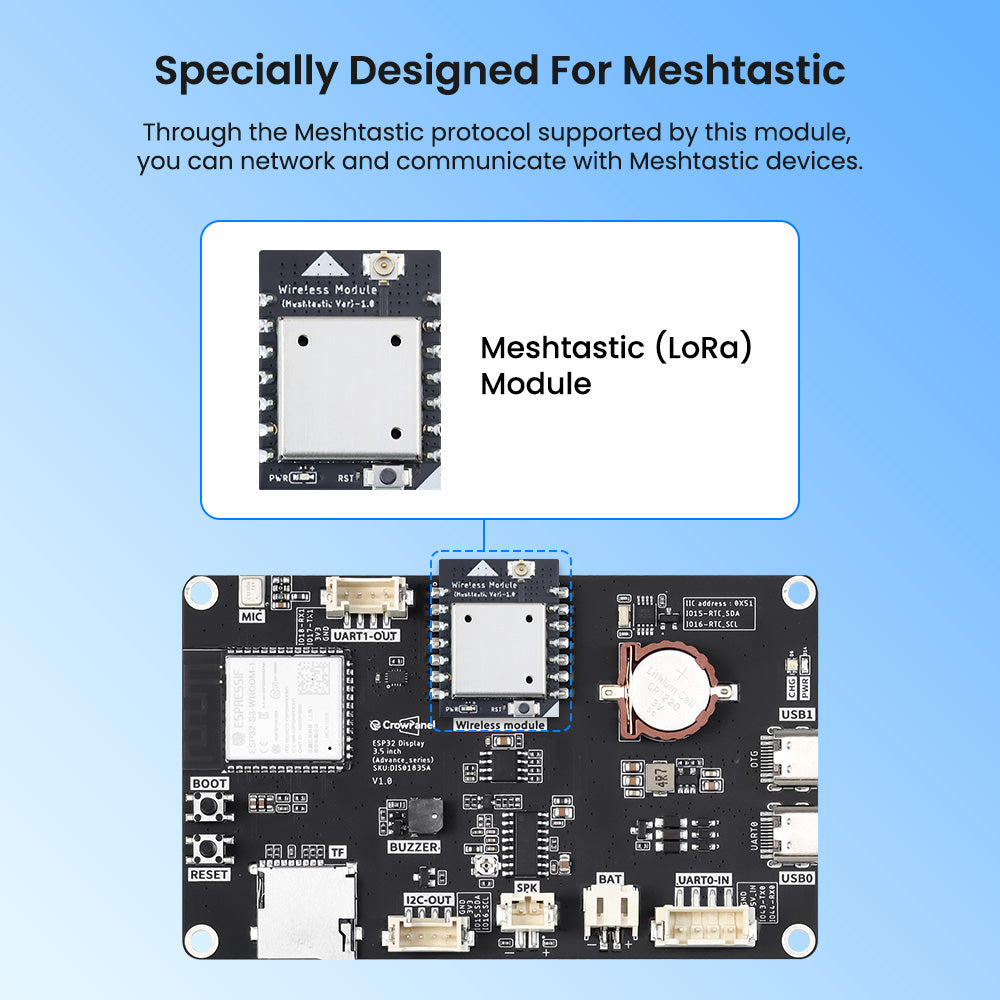

The SX1262 wireless module supports access to the Meshtastic network;
Real-time clock function, ensuring the continuity and accuracy of system time in the event of power failure;

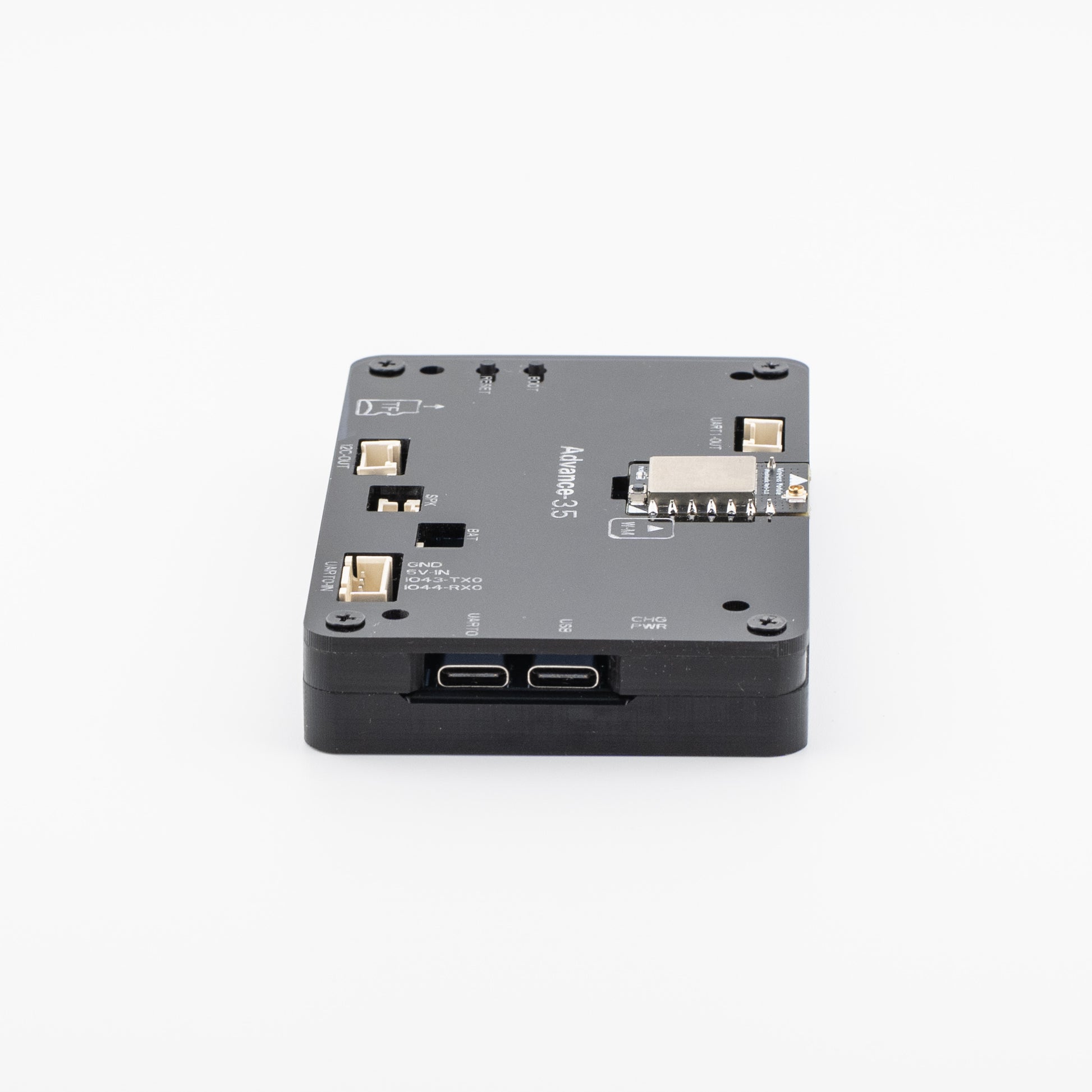

The peripheral port adopts vertical and built-in terminal design, which is more in line with the compact and integrated design requirements of embedded devices.
