H1 - Case for Heltec V3 running Meshtastic®

H1 - Case for Heltec V3 running Meshtastic®

Regular price $20.00 USD
Regular price $20.00 USD Sale price $20.00 USD
Sale Sold out
Shipping calculated at checkout.

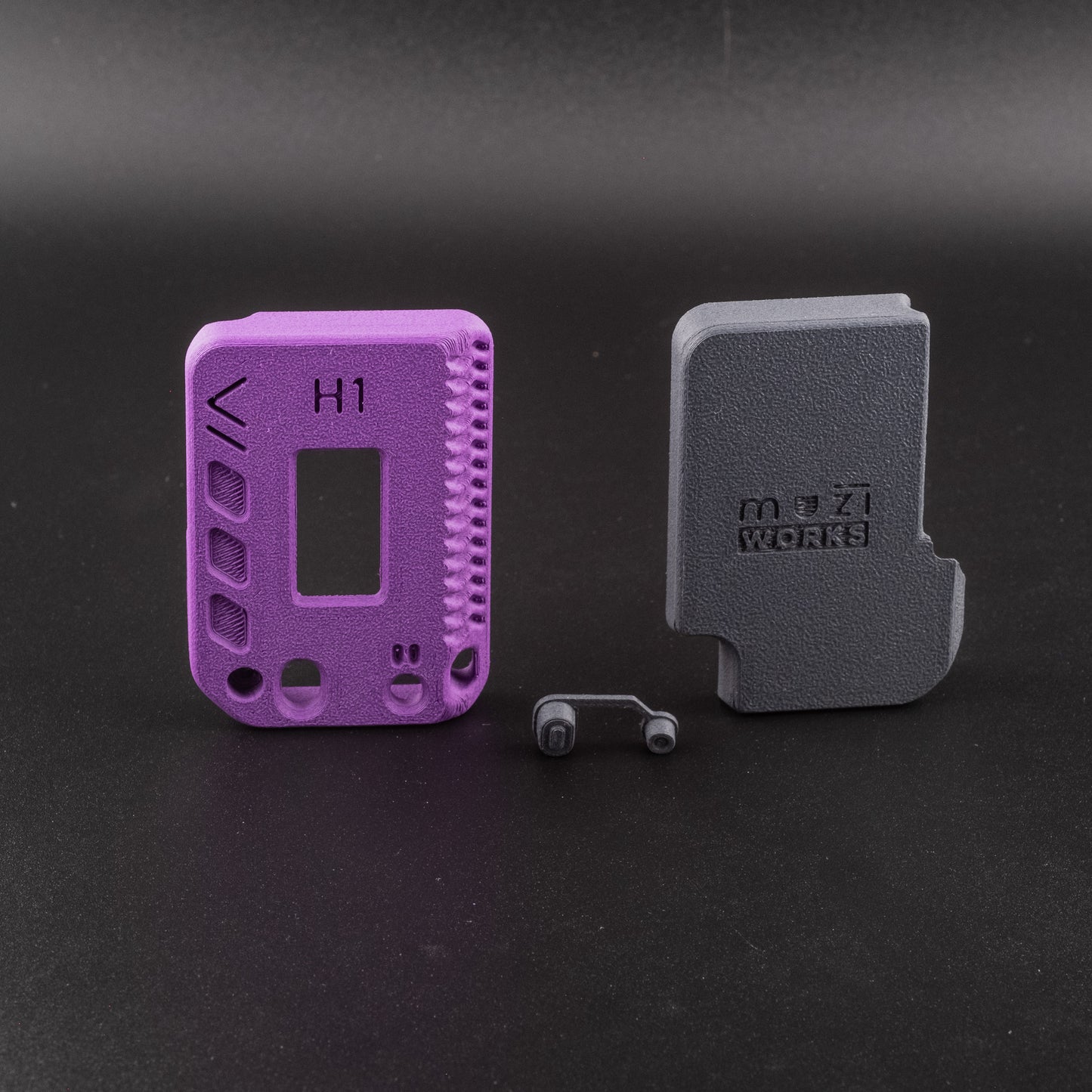

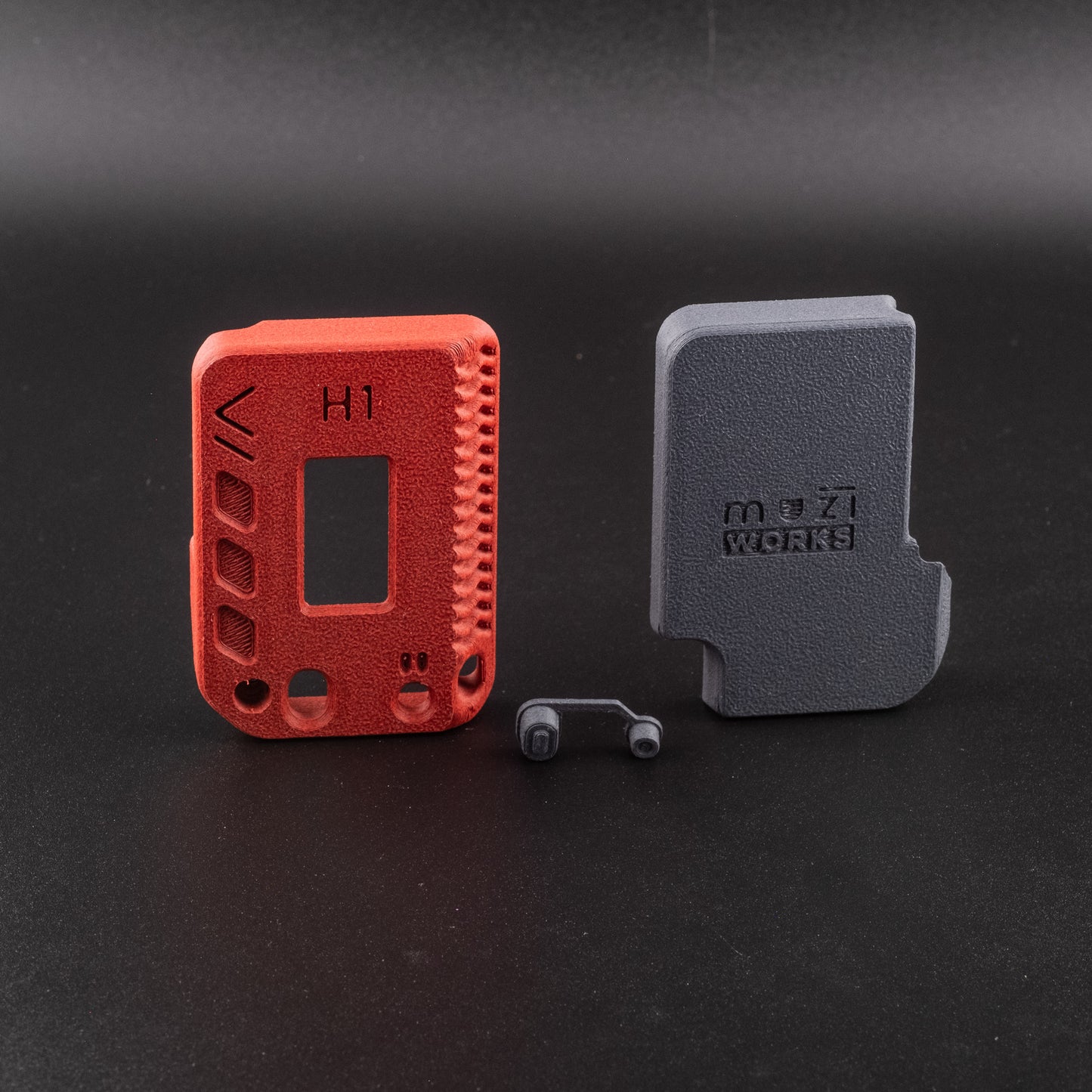

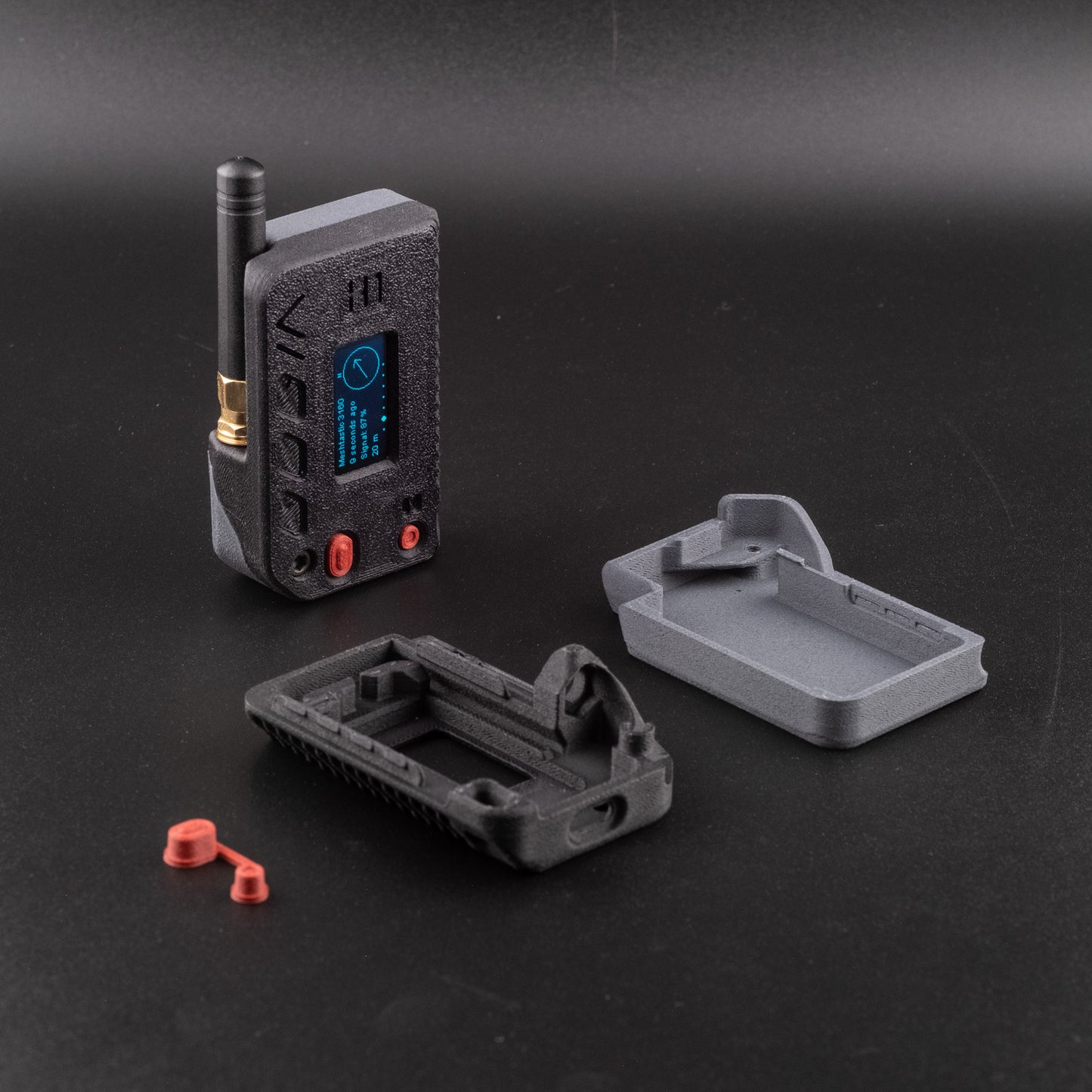

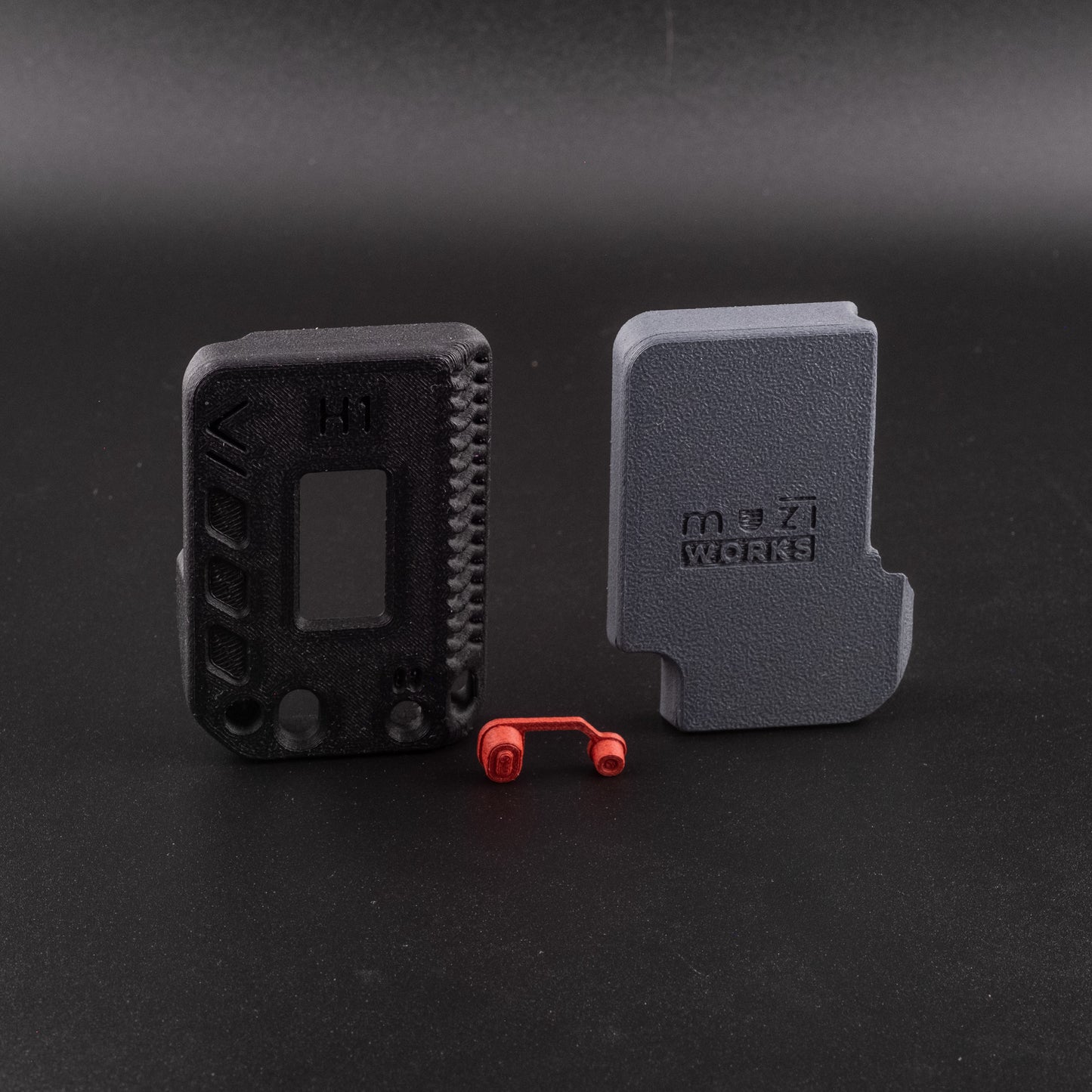

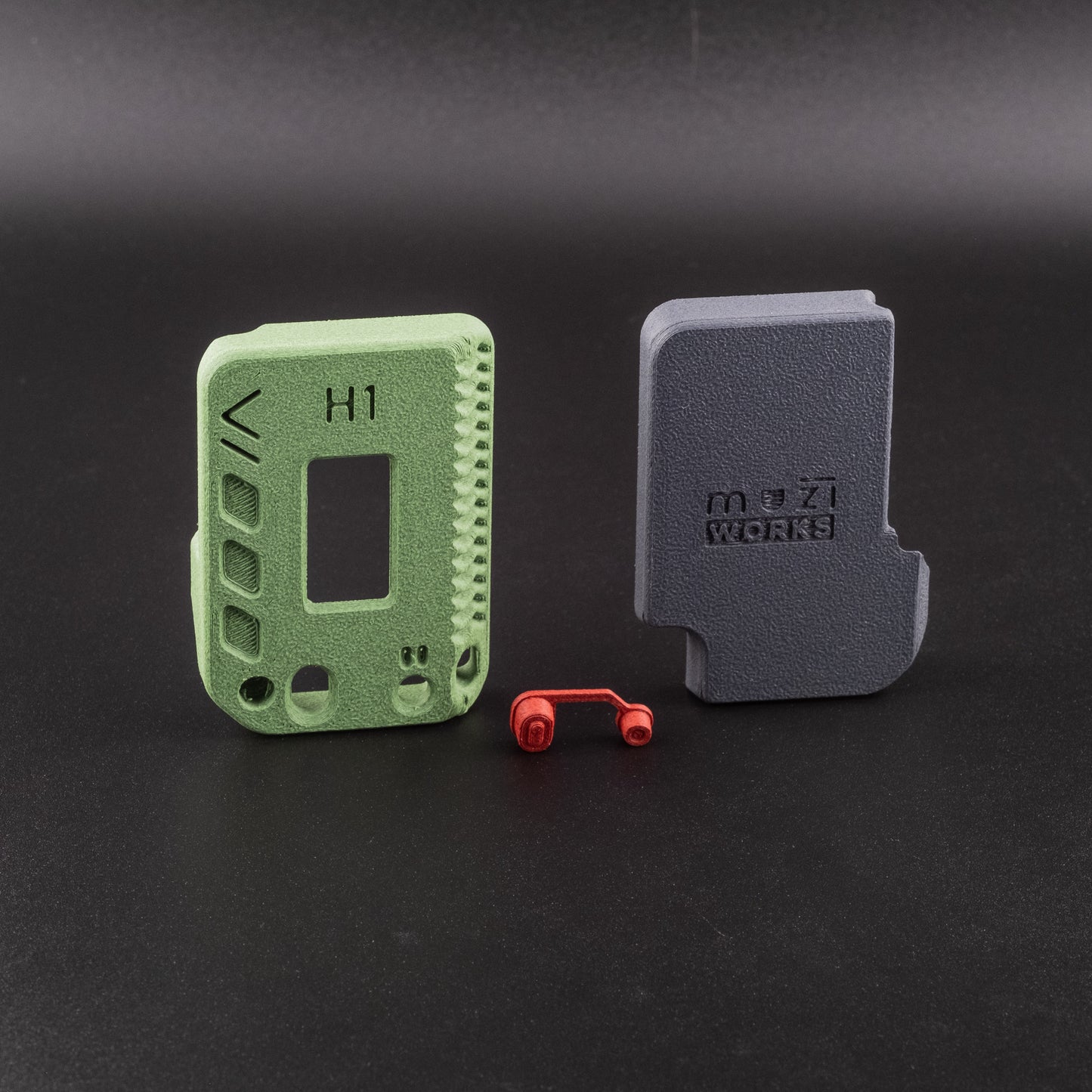

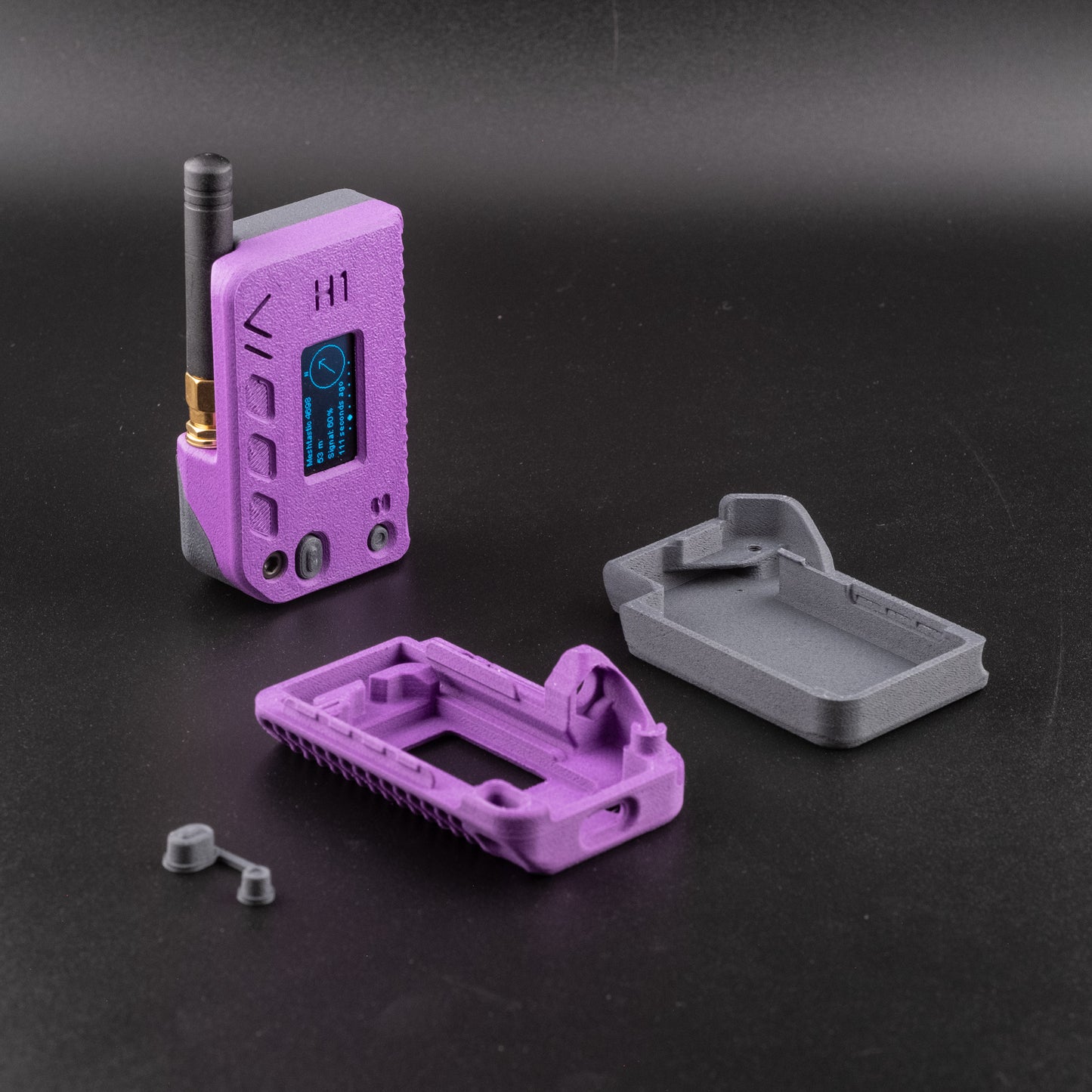

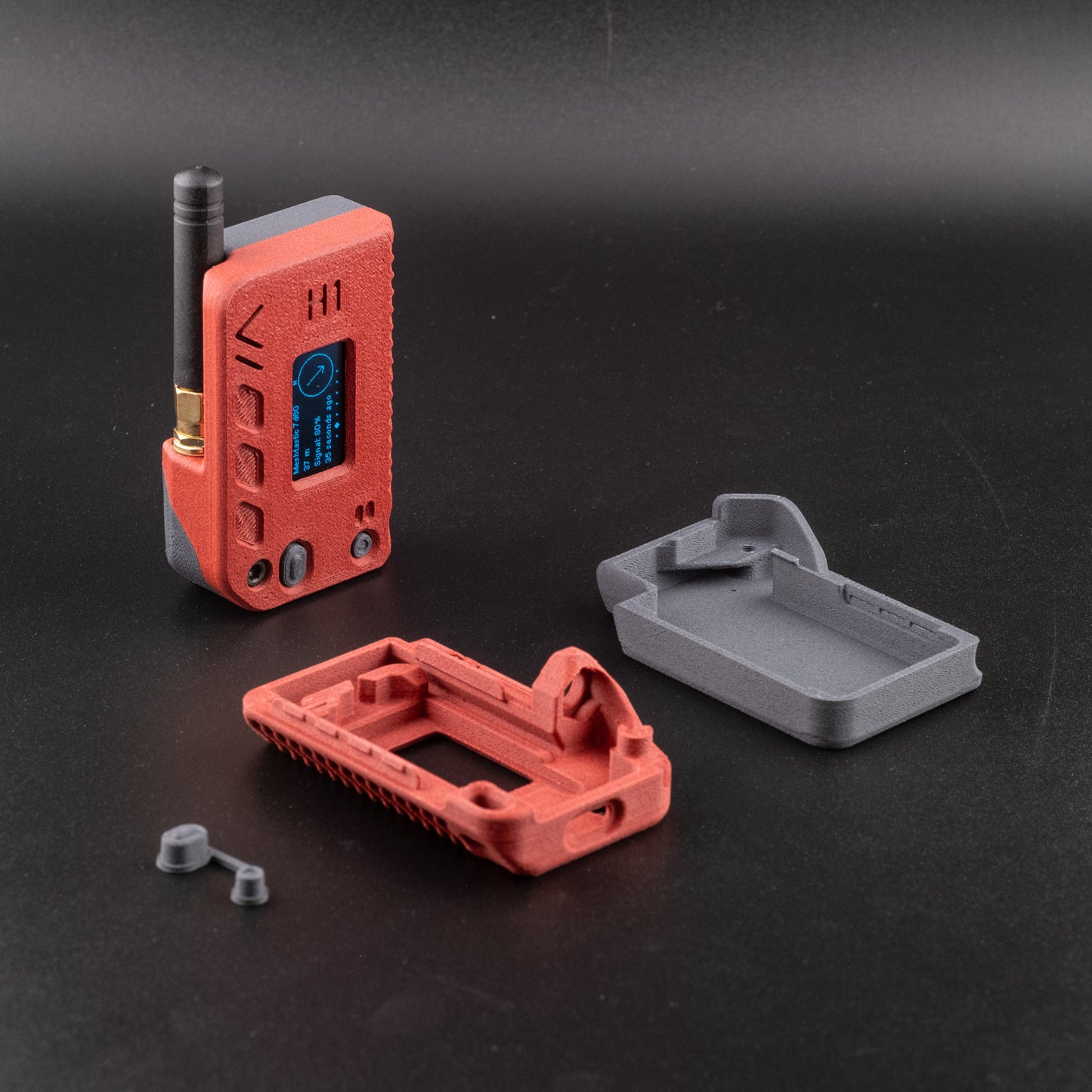

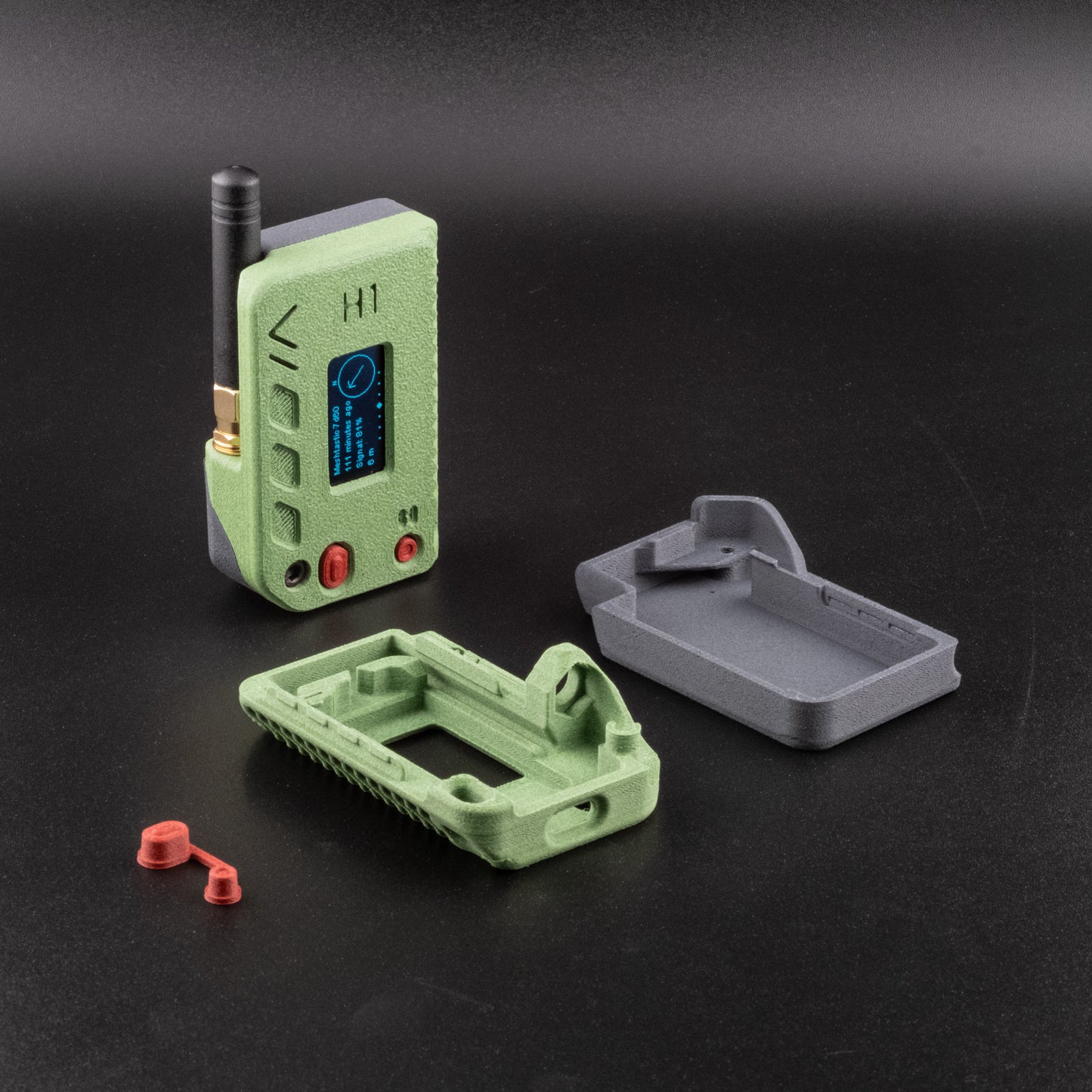

The original case design that started it all for the Heltec V3 Lora board (purchase separately). Unique 3D printed design in PLA Carbon Fiber material, provides grip and a rugged design. Install the buttons, board, SMA Pigtail and snap the 2 halves of the case together. Secure with (included) M3x12mm screw for a rock solid enclosure.

Fits:
- Battery up to 8mm x 30mm x 48mm
- U.FL to SMA Pigtail 10cm long
- Your choice of SMA antenna up to 10mm in diameter at the base

Recommended component kit:
https://muzi.works/products/heltec-kit

Dimensions:
- 45.5mm x 64.6mm x 19.5mm [1.79in x 2.54in x 0.77in]
- 22g [0.78oz]

What's included:
- Case Front, Case Back, Buttons, Black Stainless Steel Screw (2.5mm Hex Drive), Assembly Instructions

Meshtastic® is a registered trademark of Meshtastic LLC. Meshtastic software components are released under various licenses, see GitHub for details. No warranty is provided - use at your own risk.

View full details

Customer Reviews

Based on 201 reviews
96%
(193)
3%
(6)
1%
(2)
0%
(0)
0%
(0)
V
VA3SPN
Compact Heltec Case

Great case to use with the Heltec v3. I’m using it with the belt clip and the extended antenna. Works as designed and securely holds the board

S
Scott Short
A little fidly. Confirm battery size first

Just had my cases arrive. Build quality is very nice. Fit and finish is solid. What I found was installing antenna wiring was a little fiddlie. Don’t do what I did and order batteries before the case arrives. The ones I ordered from Maker works are just a tad too thick. This is not a problem with the case buy me getting ahead of myself. If I ever get anymore Heltec units I will be buying this case to go with it.

J
John Hackney

Excellent build quality and everything fits perfectly

G
Gary Mettert

These are one of my favorite cases. 3d printed but looks premium. Have another on the way 10/10 would recommend for the Heltec v3!

G
Gary Mettert

I love this case for the heltec V3. I’m already buying a black one for Christmas. But one thing that I disliked about this case was the light holes for the power and status. This case has two holes. My green one is thin plastic over it but still lets lights through. So I think the green one might be better. But it’s a very minor issue. Other than that I would have gave 5 stars. Would buy again!
